Transfer Case Connector End View
Transfer Case Connector End View

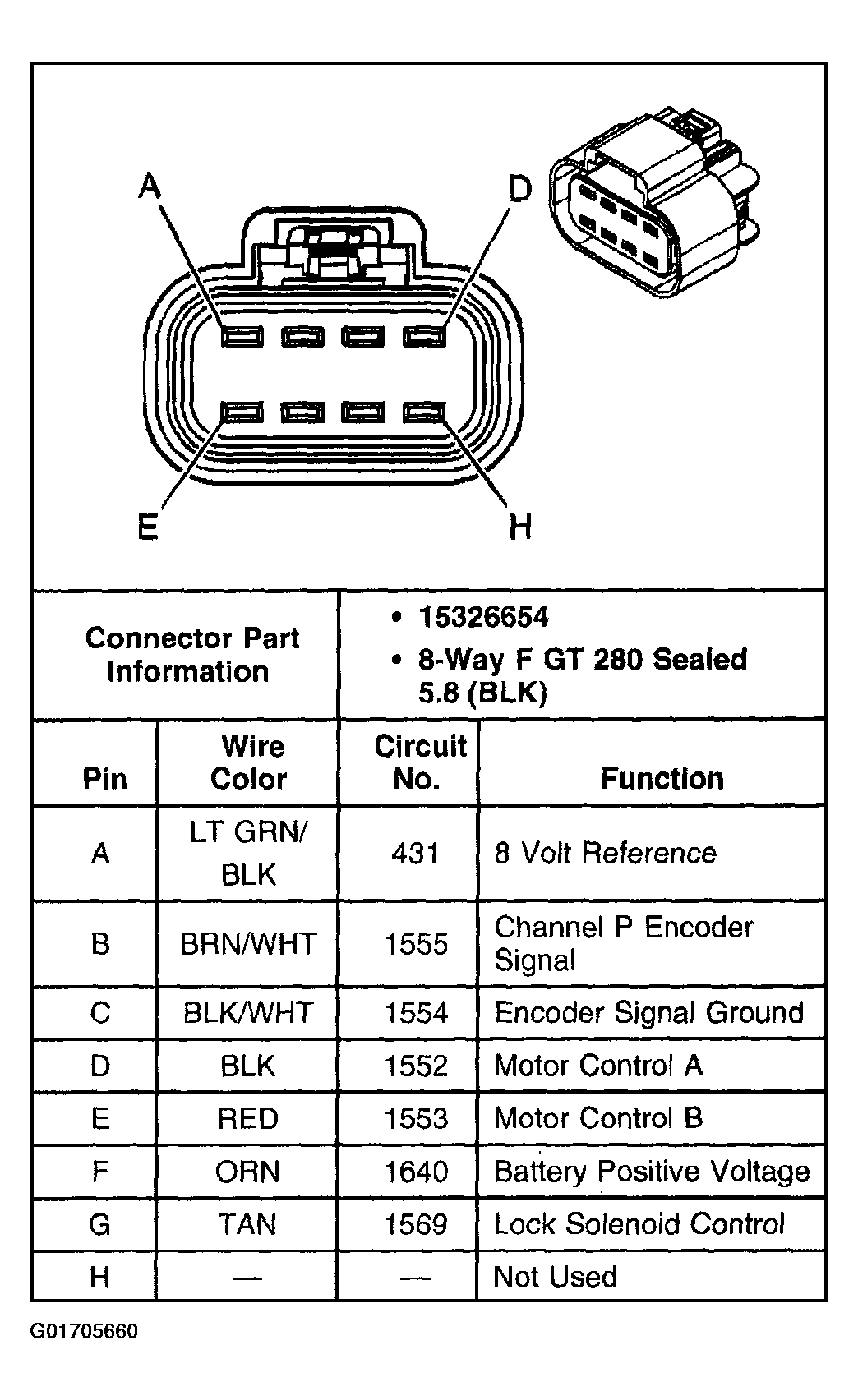

Fig 1: Transfer Case Connector
Courtesy of GENERAL MOTORS CORP.

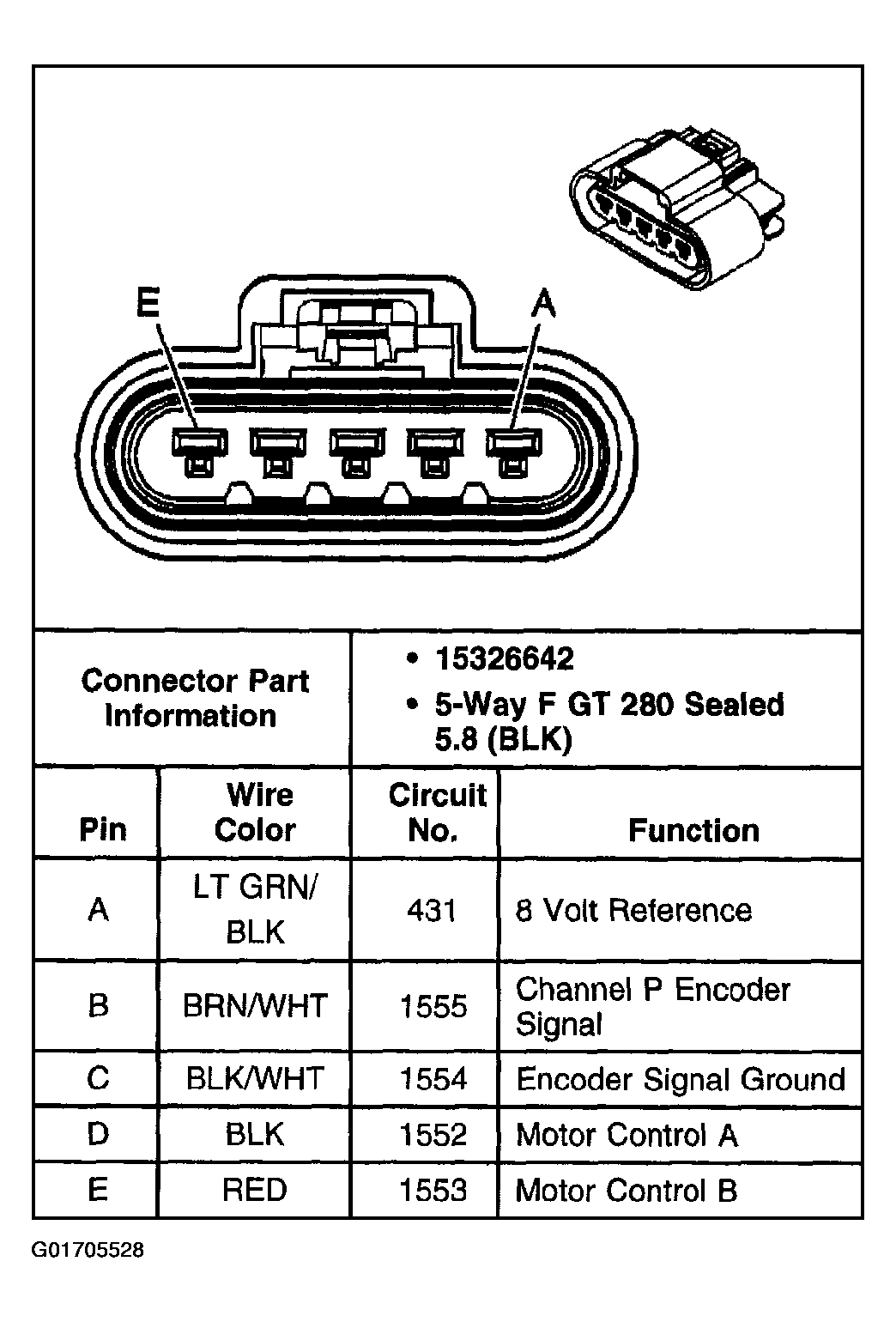

Fig 1: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
