Rear Video/Audio/HVAC Module Connector End View (C1)

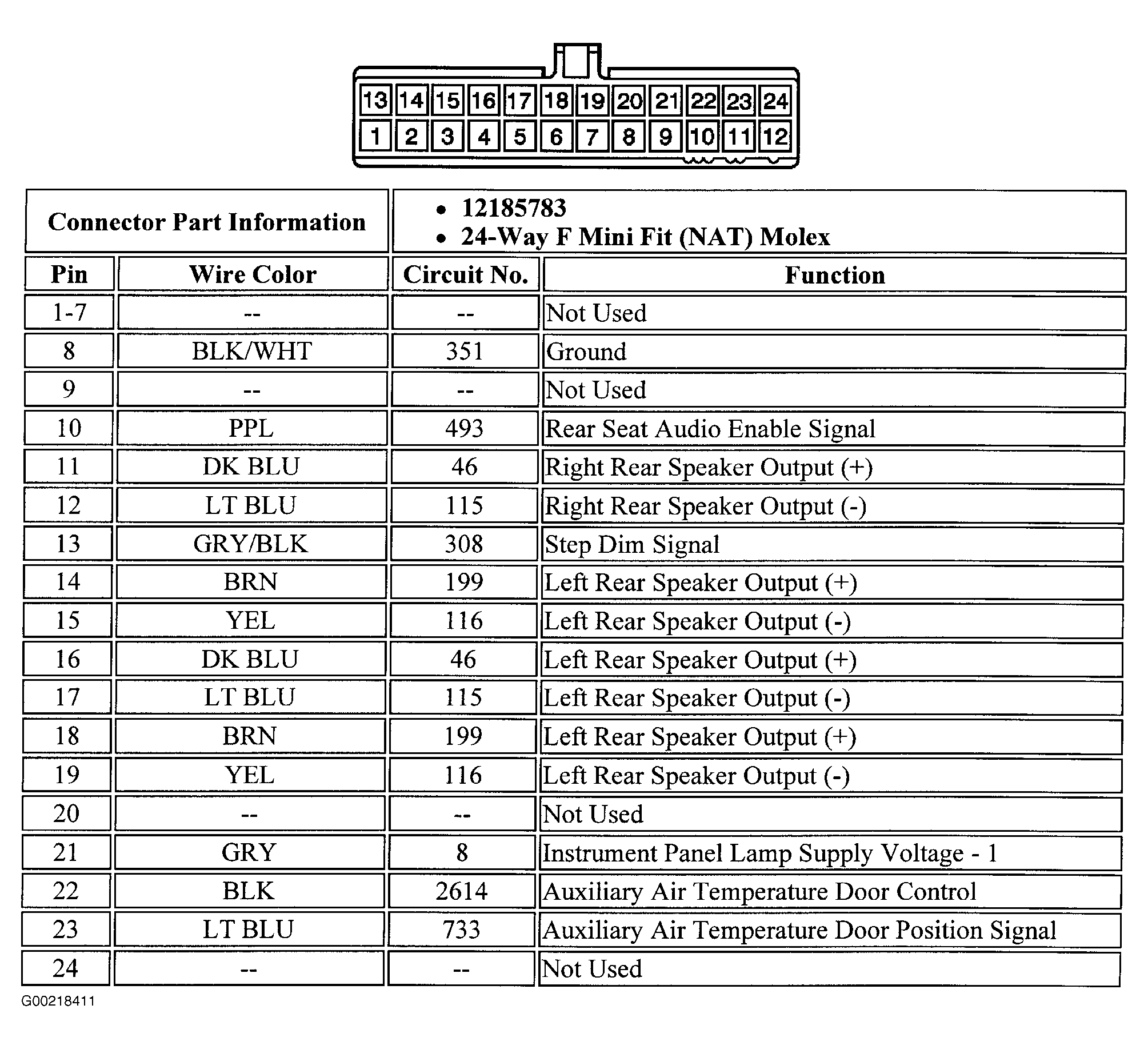

Fig 1: Rear Video/Audio/HVAC Module (C1)
G00218411Courtesy of GENERAL MOTORS CORP.
