Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
Rear Video/Audio/HVAC Module Connector End View - C1
Rear Video/Audio/HVAC Module Connector End View - C1

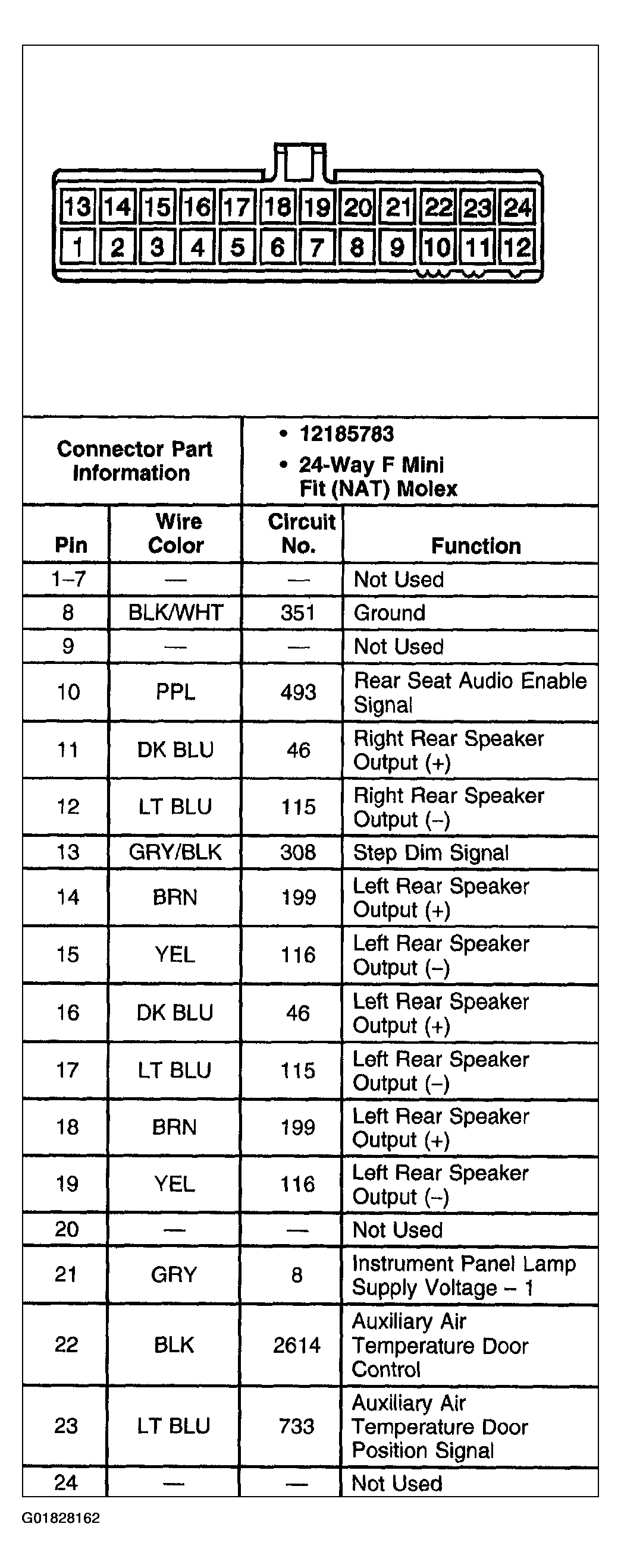

Fig 1: Rear Video/Audio/HVAC Module - C1
Courtesy of GENERAL MOTORS CORP.
Fig 1: Rear Video/Audio/HVAC Module - C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
