Removal Procedure

  1. Remove the automatic level control air compressor from the vehicle. Refer to Air Compressor Replacement .
  2. Remove the air dryer from the automatic level control air compressor. Refer to Automatic Level Control Air Dryer Replacement .

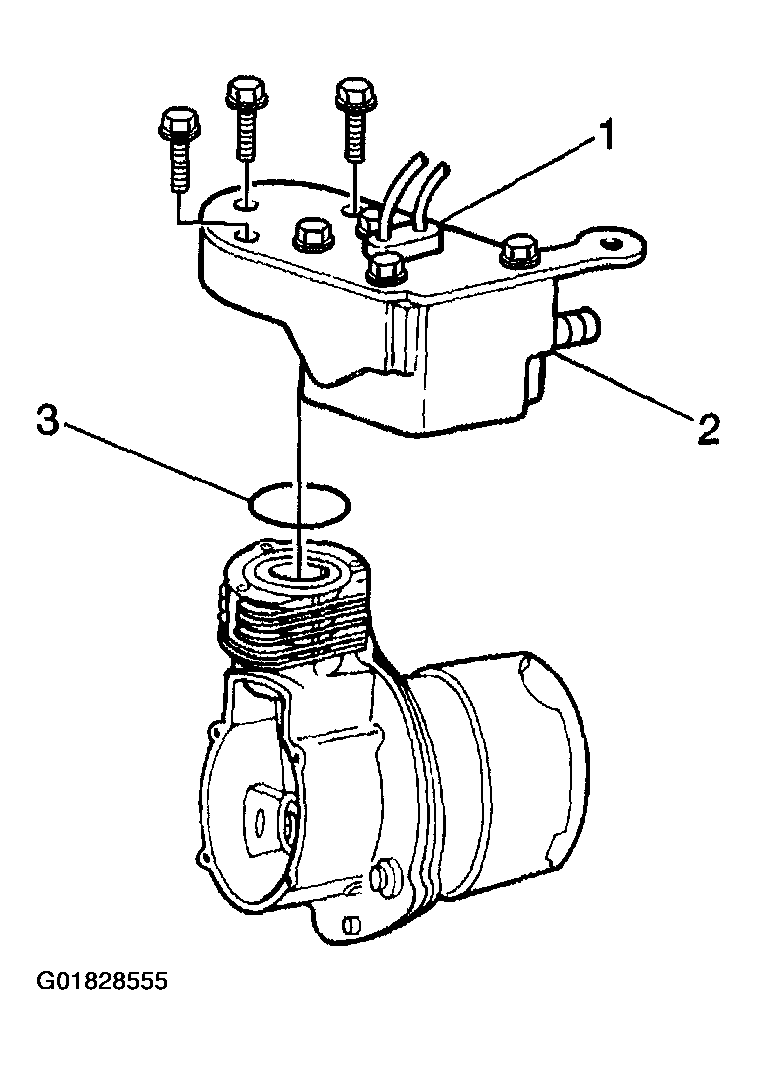

    3. Fig 1: Automatic Level Control Air Compressor Head
    G01828555Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiring terminals B and C from the automatic level control air compressor electrical connector.
  4. Remove the bolts/screws from the automatic level control air compressor head (2).
  5. Remove the automatic level control air compressor head.
  6. Remove the O-ring (3) from the automatic level control air compressor.
