Installation Procedure

  1. Install the input speed sensor (440) into the case cover.
  2. Install the input speed sensor clip (441) into the case cover.
  3. Connect the transaxle wiring harness.
  4. Install the case side cover. Refer to Case Side Cover Replacement  .

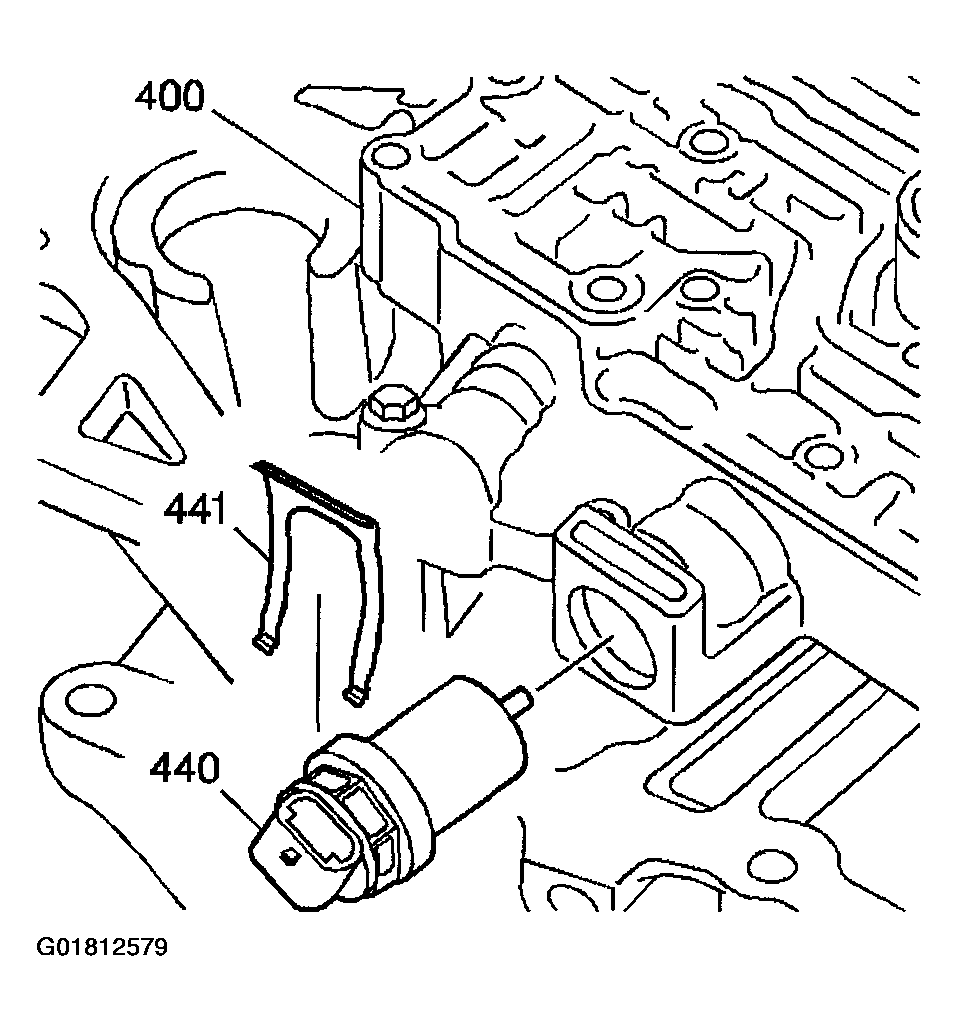

    Fig 1: Installing Input Speed Sensor & Clip
    G01812579Courtesy of GENERAL MOTORS CORP.
