Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement  .
  2. Disconnect the transaxle wiring harness.
  3. Remove the input speed sensor clip (441) from the case cover.
  4. Remove the input speed sensor (440) from the case cover.

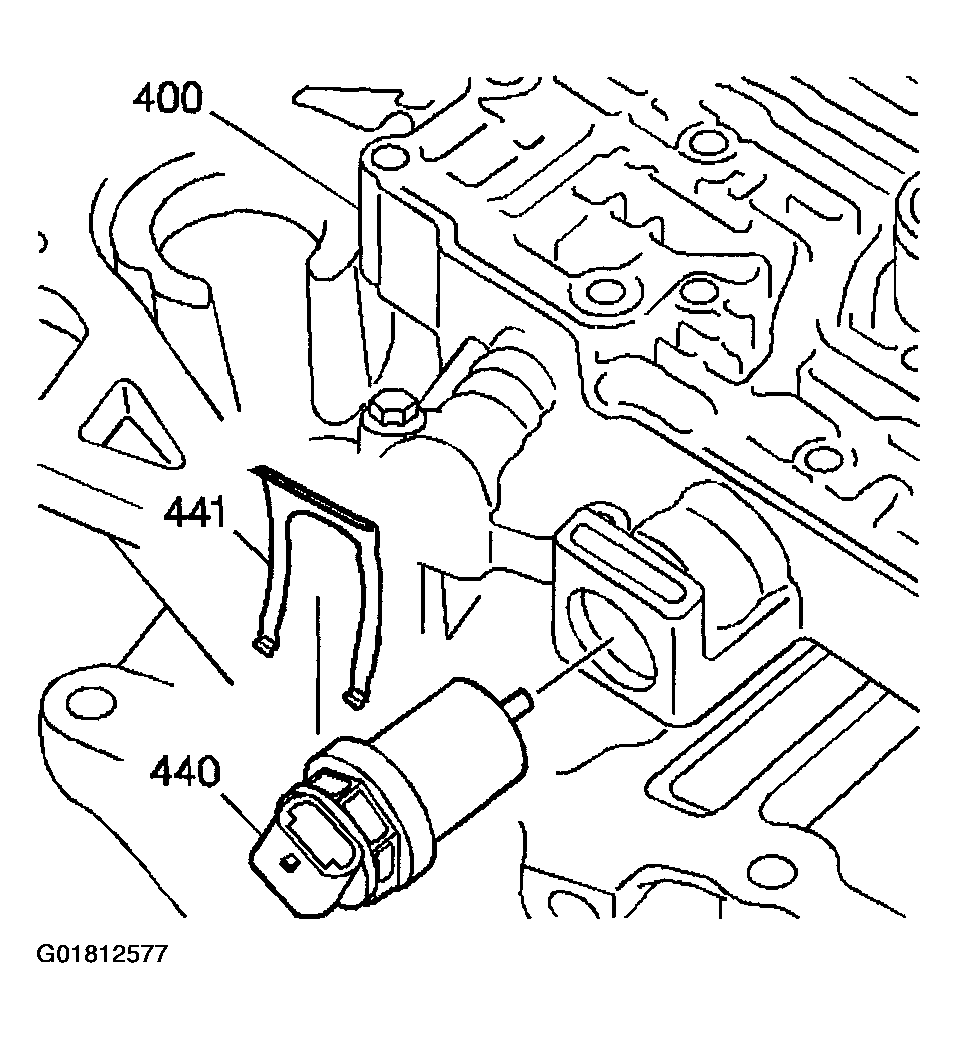

    Fig 1: Removing Input Speed Sensor & Clip
    G01812577Courtesy of GENERAL MOTORS CORP.
  5. Inspect the input speed sensor (440) for the following conditions:
    • Damaged or missing magnet
    • Damaged housing
    • Bent or missing electrical terminals
    • Damaged speed sensor clip (441)
      Fig 2: Inspecting Input Speed Sensor For Damage
      G01812578Courtesy of GENERAL MOTORS CORP.
