Removal Procedure

  1. Remove the right rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  2. Disconnect the electrical connectors from the power sliding door (PSD) actuator control module (2).
  3. Pull the PSD actuator control module (2) inboard in order to unhook the control module from the actuator motor.

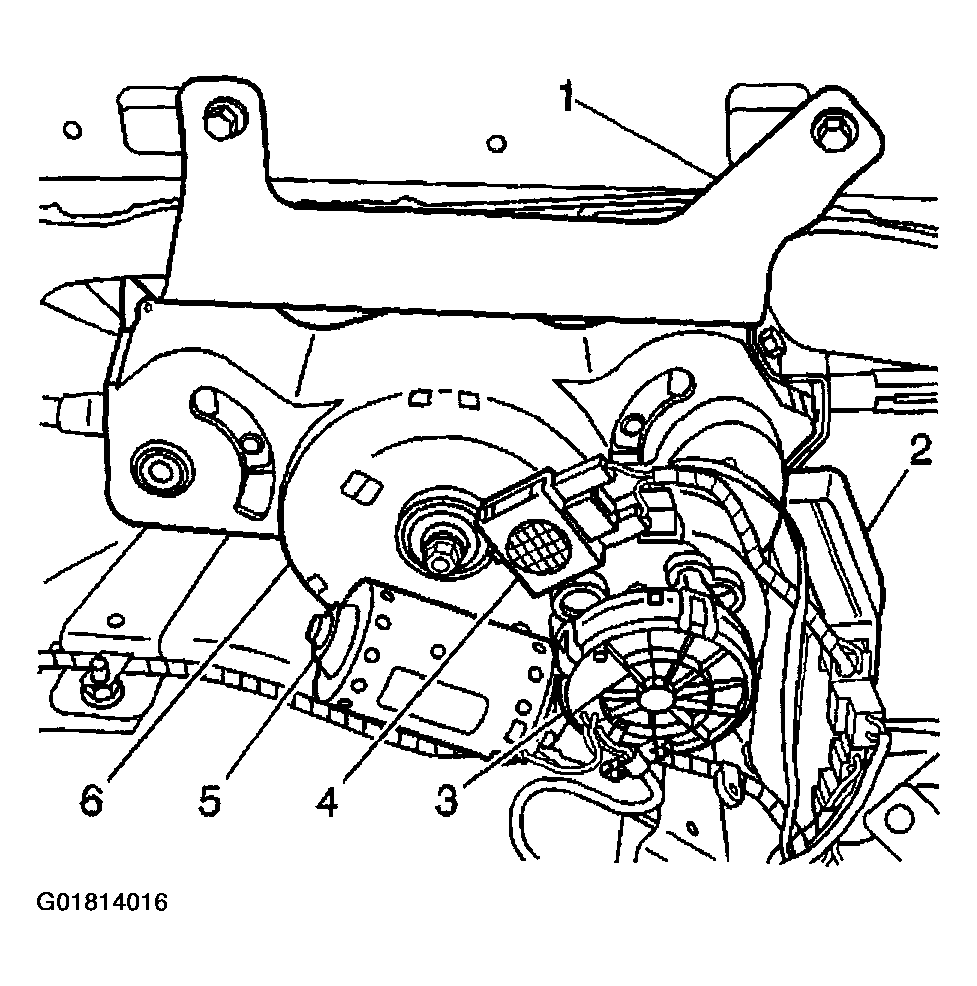

    Fig 1: Removing PSD Actuator Control Module (With RPO E58)
    G01814016Courtesy of GENERAL MOTORS CORP.
