Removal Procedure

  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the front door lock module. Refer to Door Module Replacement - Front .
  3. Remove the front door window run channel screws.

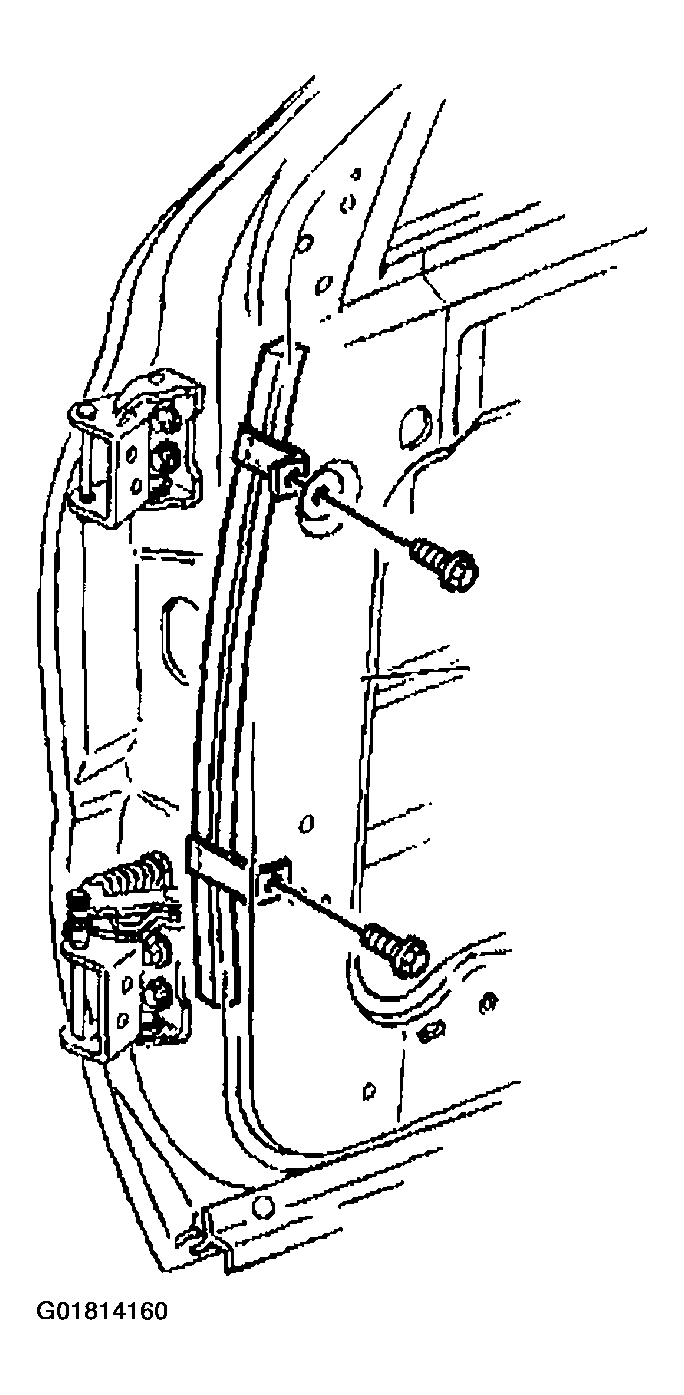

    Fig 1: Removing Front Door Window Run Channel & Screws
    G01814160Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door window run channel from the front door window weatherstrip.
    Fig 2: Removing Front Door Window Run Channel & Weatherstrip
    G01814161Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door window run channel from the front door.
