Body Control Module Connector End Views

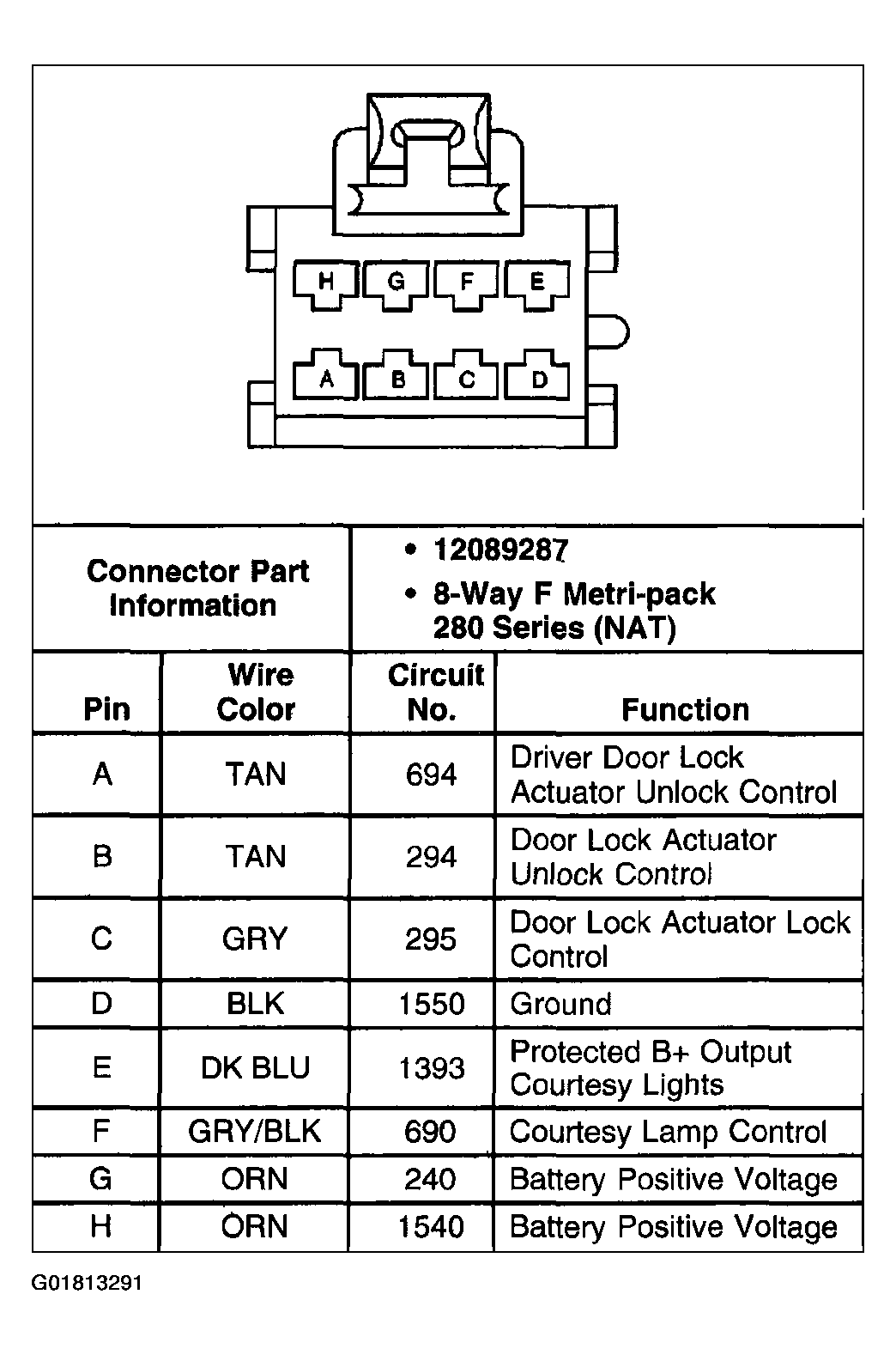

Fig 1: Body Control Module (BCM) C1

Courtesy of GENERAL MOTORS CORP.

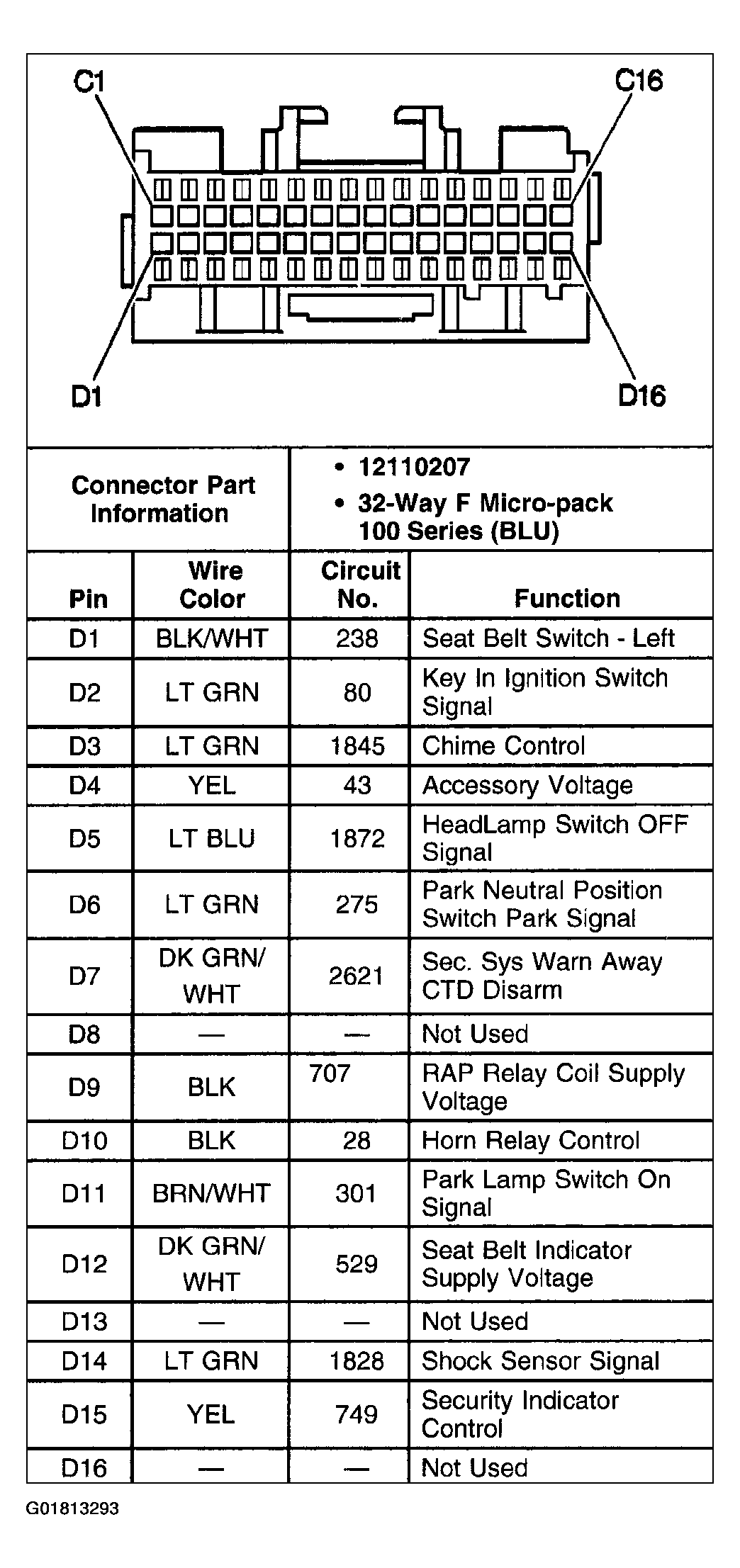

Fig 2: Body Control Module (BCM) C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

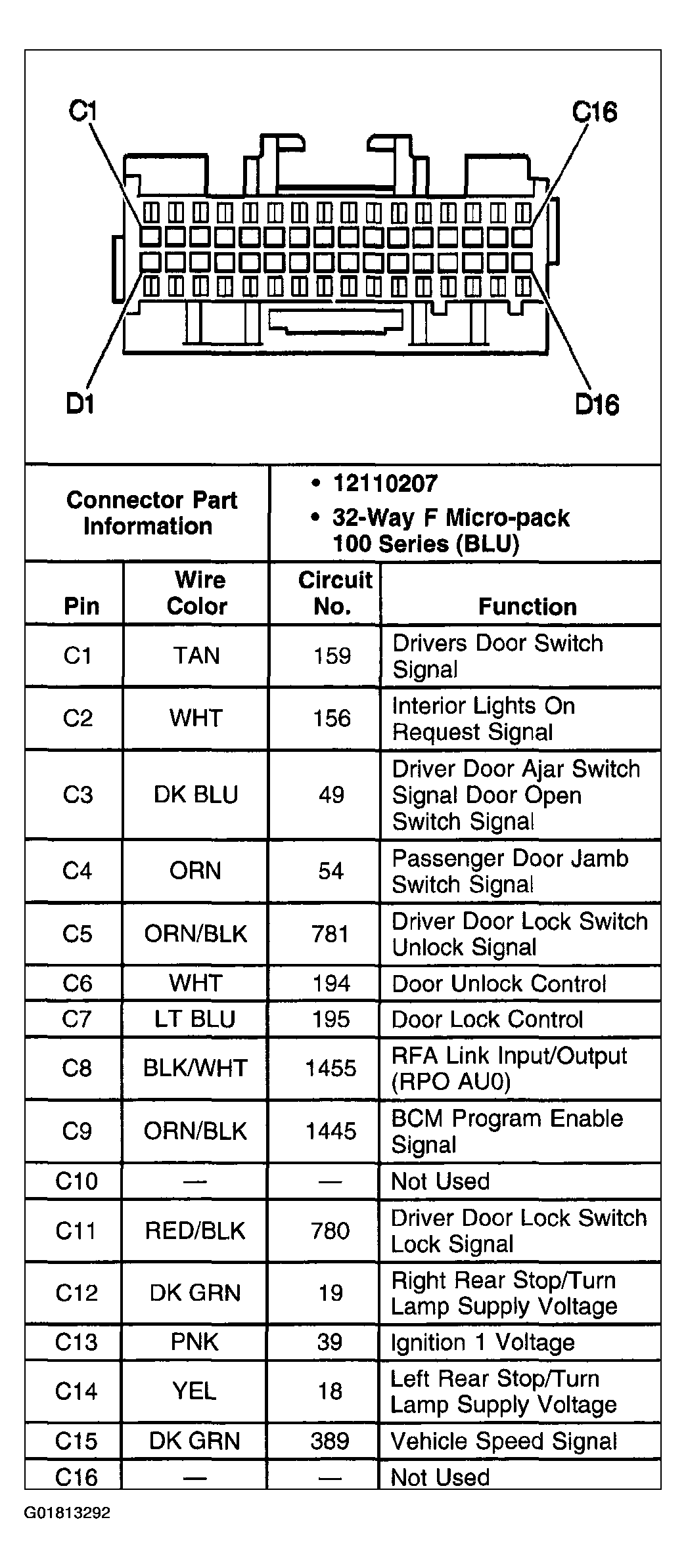

Fig 3: Body Control Module (BCM) C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
