Installation Procedure

  1. Slide the module into the mounting bracket and push until the module is fully seated.

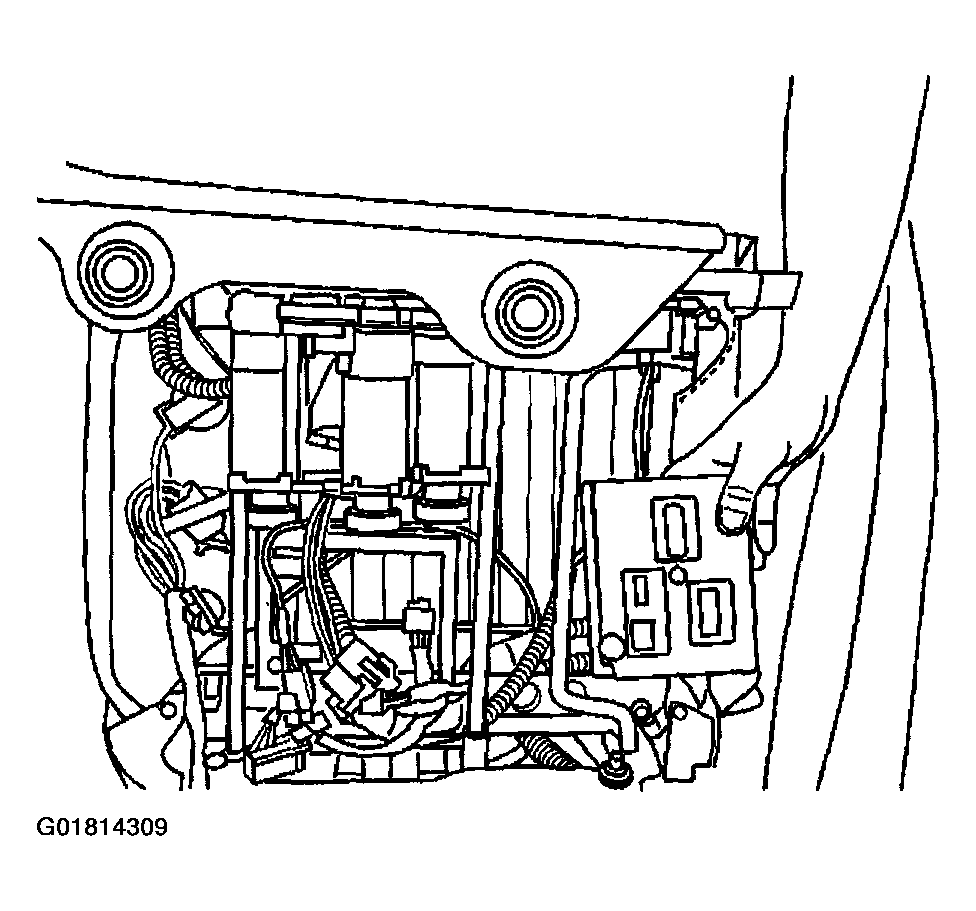

    Fig 1: Installing Module Toward Rear Of Seat
    G01814309Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.

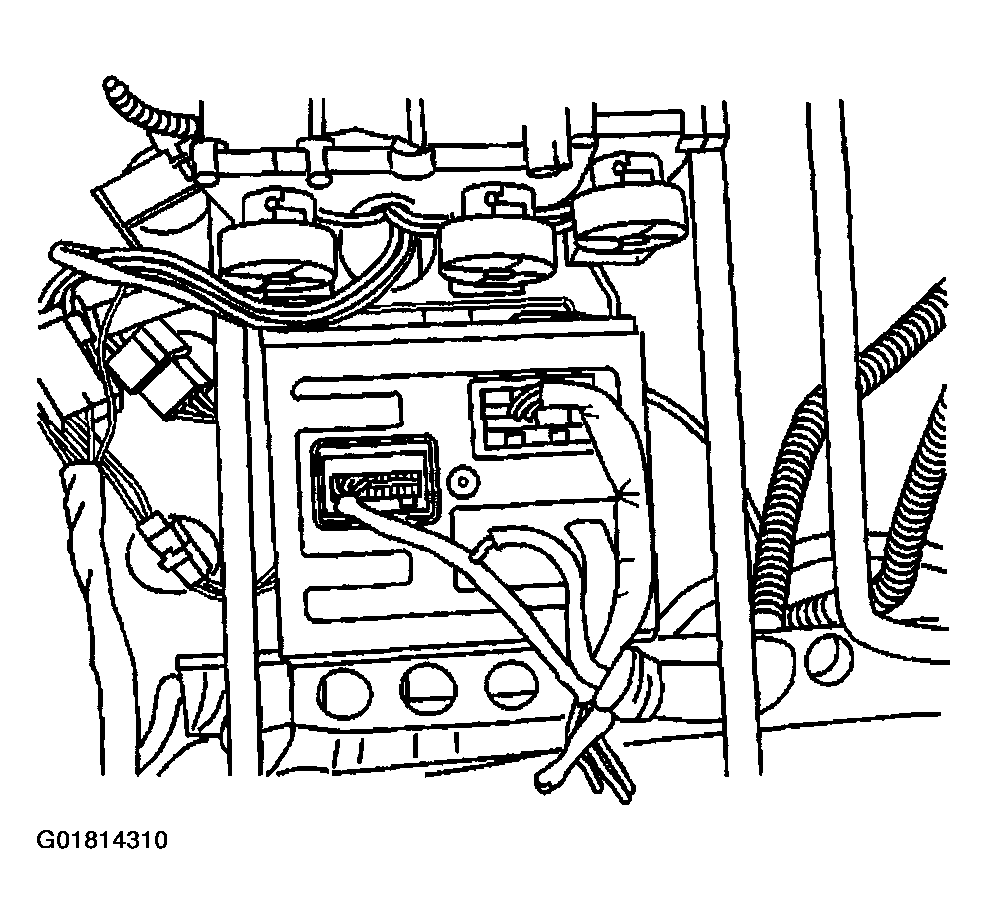

    Fig 2: Installing Memory Seat Control Module
    G01814310Courtesy of GENERAL MOTORS CORP.
  3. Install the drivers seat.
  4. Enable the SIR system. Refer to ENABLING THE SIR SYSTEM .
