Rear Object Sensor Control Module Connector End View

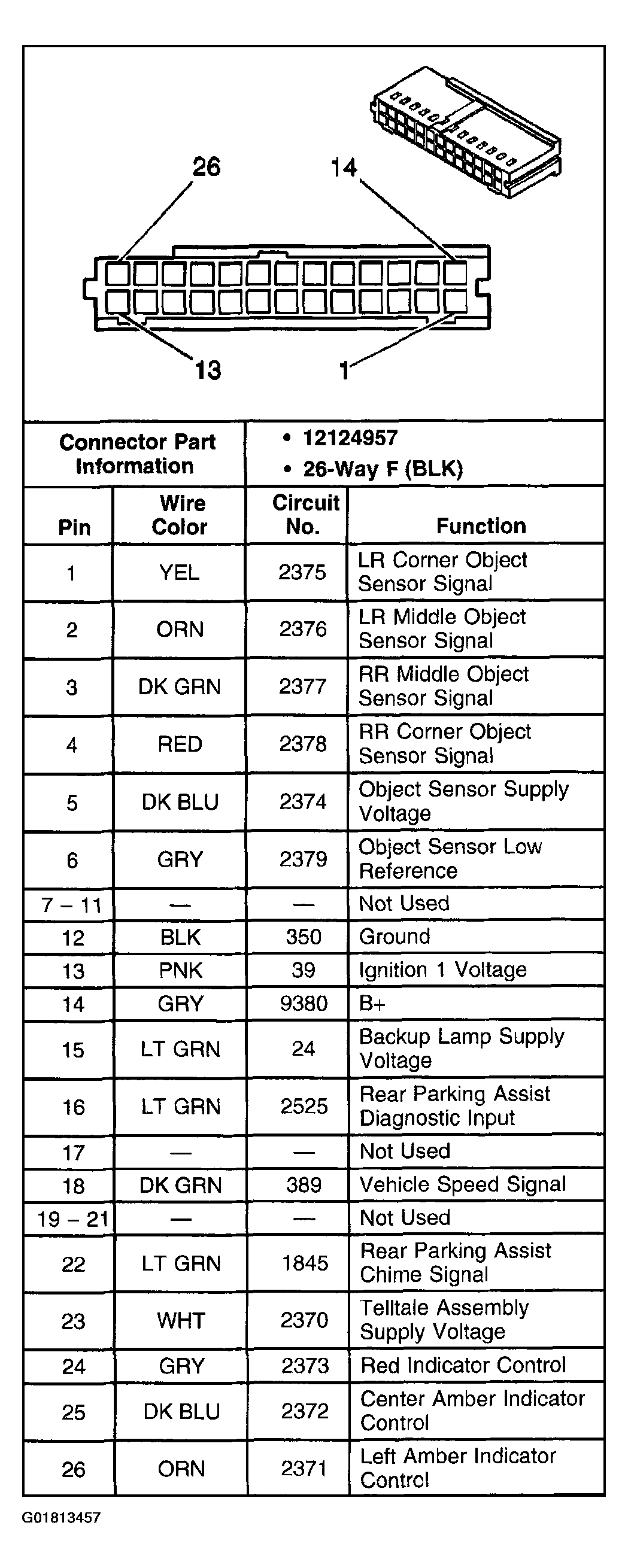

Fig 1: Rear Object Sensor Control Module
G01813457Courtesy of GENERAL MOTORS CORP.
