Installation Procedure

Install the bracket between the roof and the headliner.
Slide the bracket inward until the locking tab and screw holes align.

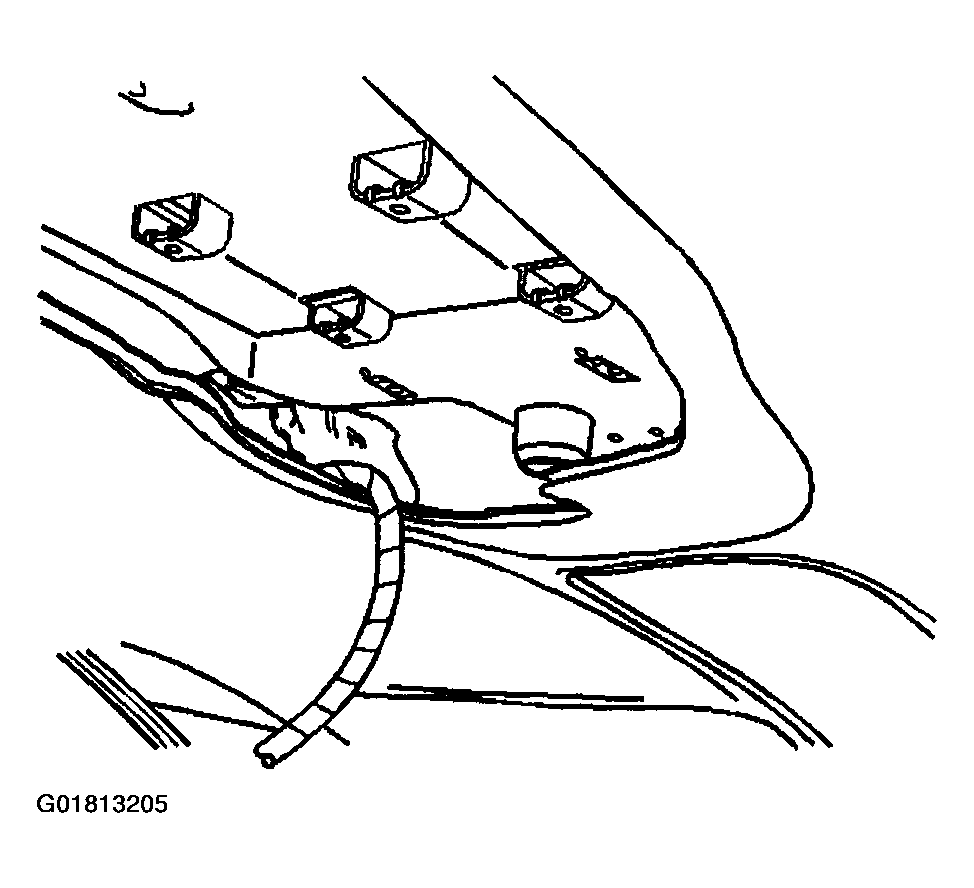

Fig 1: Installing Bracket To Headliner
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

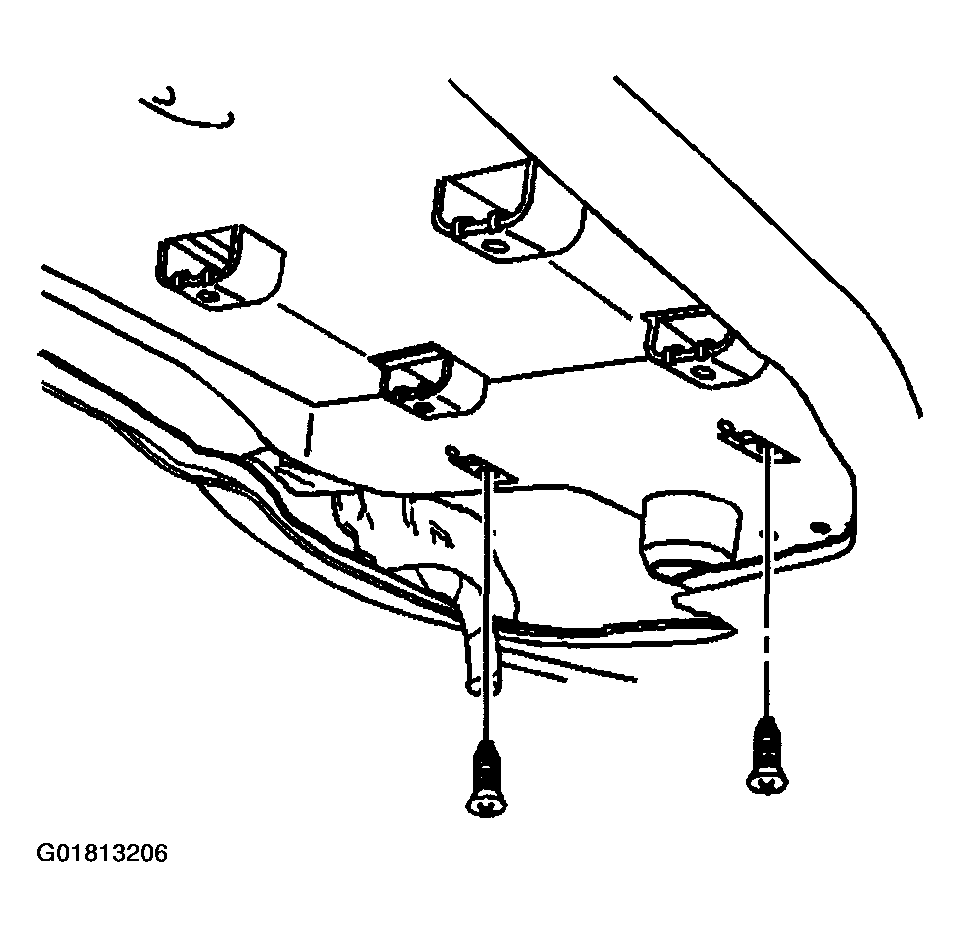

Fig 2: Screws & VES Bracket
Courtesy of GENERAL MOTORS CORP.
Install the screws into the VES bracket.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the VES overhead console. Refer to Overhead Console - VES Replacement .

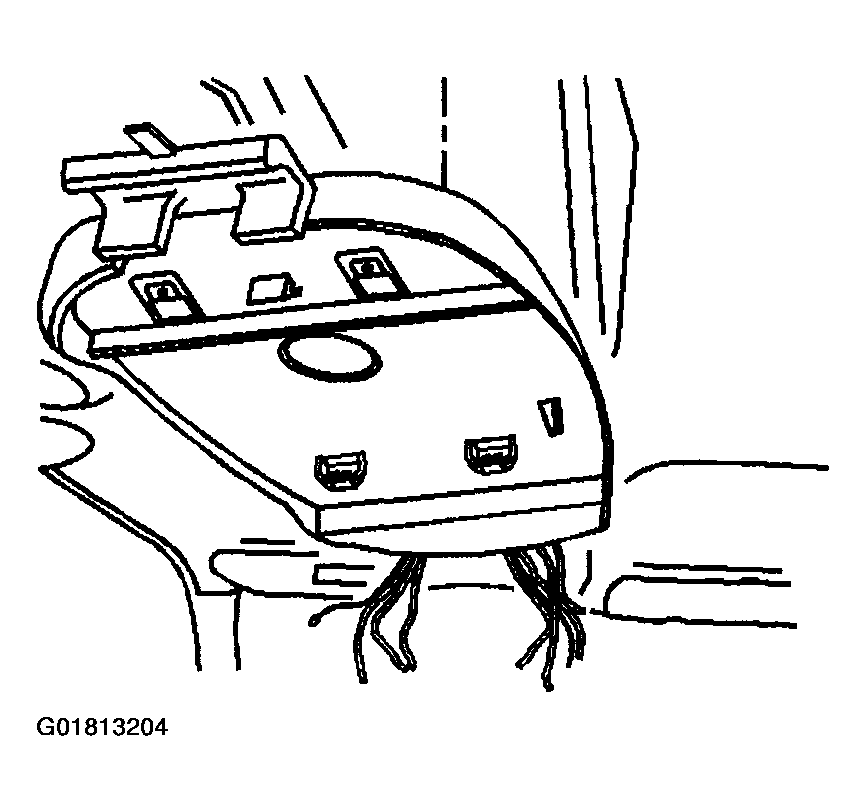

Fig 3: Installing VES Overhead Console
Courtesy of GENERAL MOTORS CORP.
Install the forward overhead console cover.

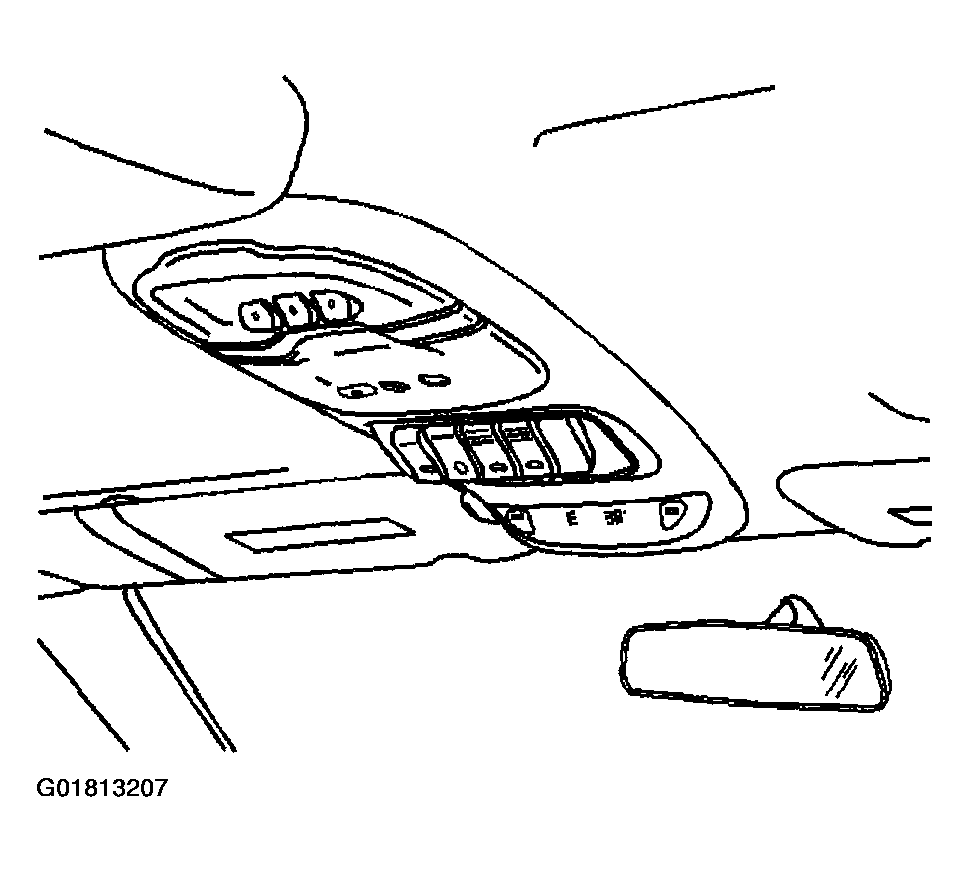

Fig 4: Installing Forward Overhead Console Cover

Courtesy of GENERAL MOTORS CORP.
