Keyless Entry Connector End Views

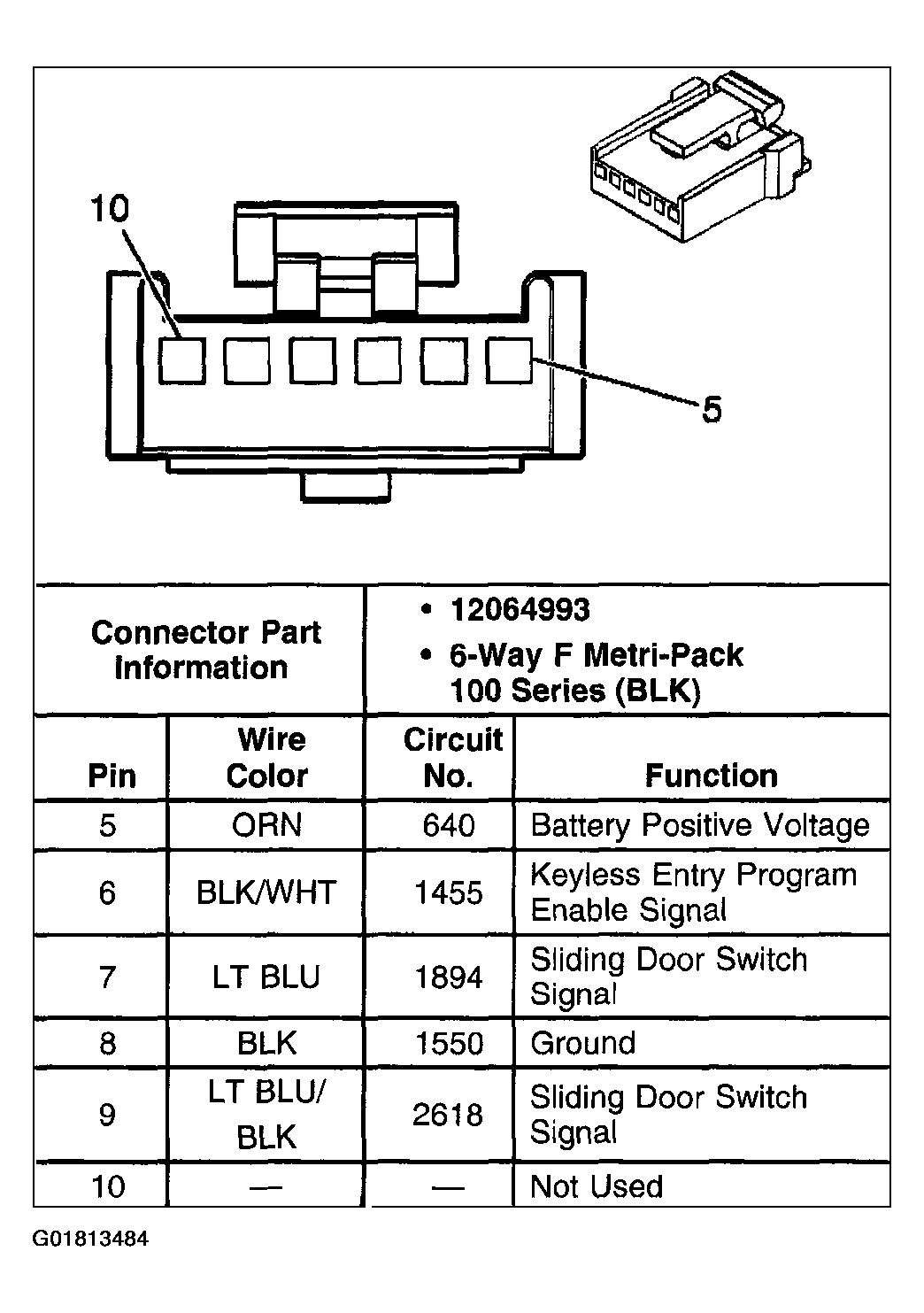

Fig 1: Remote Control Door Lock Receiver (RCDLR)
G01813484Courtesy of GENERAL MOTORS CORP.
