Removal Procedure

  1. Remove the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT - IP UPPER .
  2. Remove the security indicator lamp from the instrument panel upper trim:
    1. 2.1. Rotate the lamp counterclockwise to approximately 1/4 turn.
    2. 2.2. Pull the lamp out.
  3. Disconnect the security indicator lamp electrical connector from the security indicator lamp.

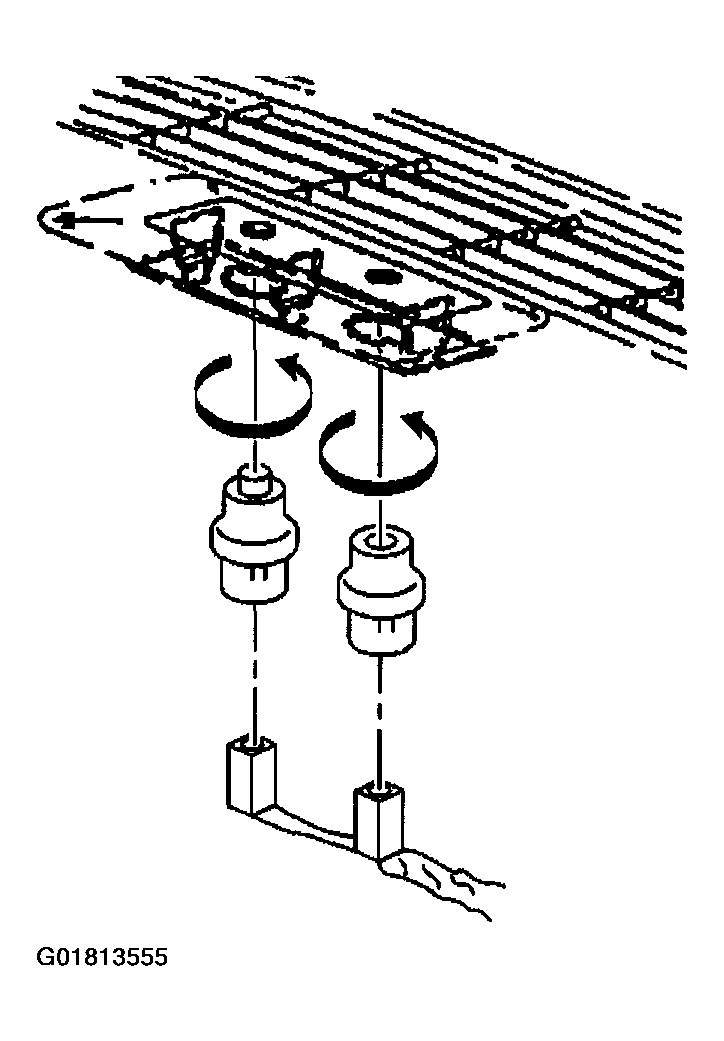

Fig 1: Disconnecting Security Indicator Lamp Electrical Connector From Security Indicator Lamp
G01813555Courtesy of GENERAL MOTORS CORP.
