Installation Procedure
IMPORTANT:
Ensure that the shock sensor mounting surface is clean and free of all oils.

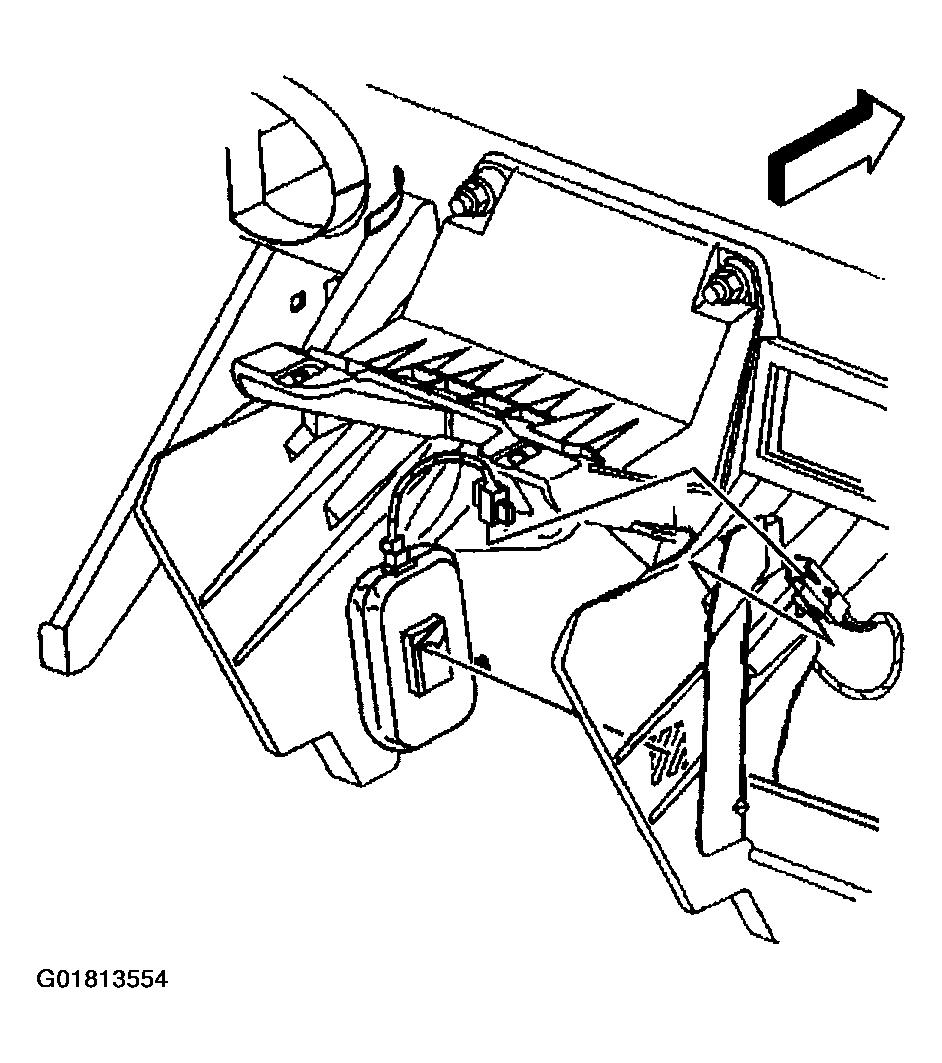

- Install the shock sensor to the instrument panel knee bolster bracket.
- Connect the shock sensor electrical connector.IMPORTANT: Verify proper shock sensor operation.
- Install the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
