Removal Procedure

  1. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Disconnect the shock sensor electrical connector.
  3. Remove the shock sensor from the instrument panel knee bolster bracket.

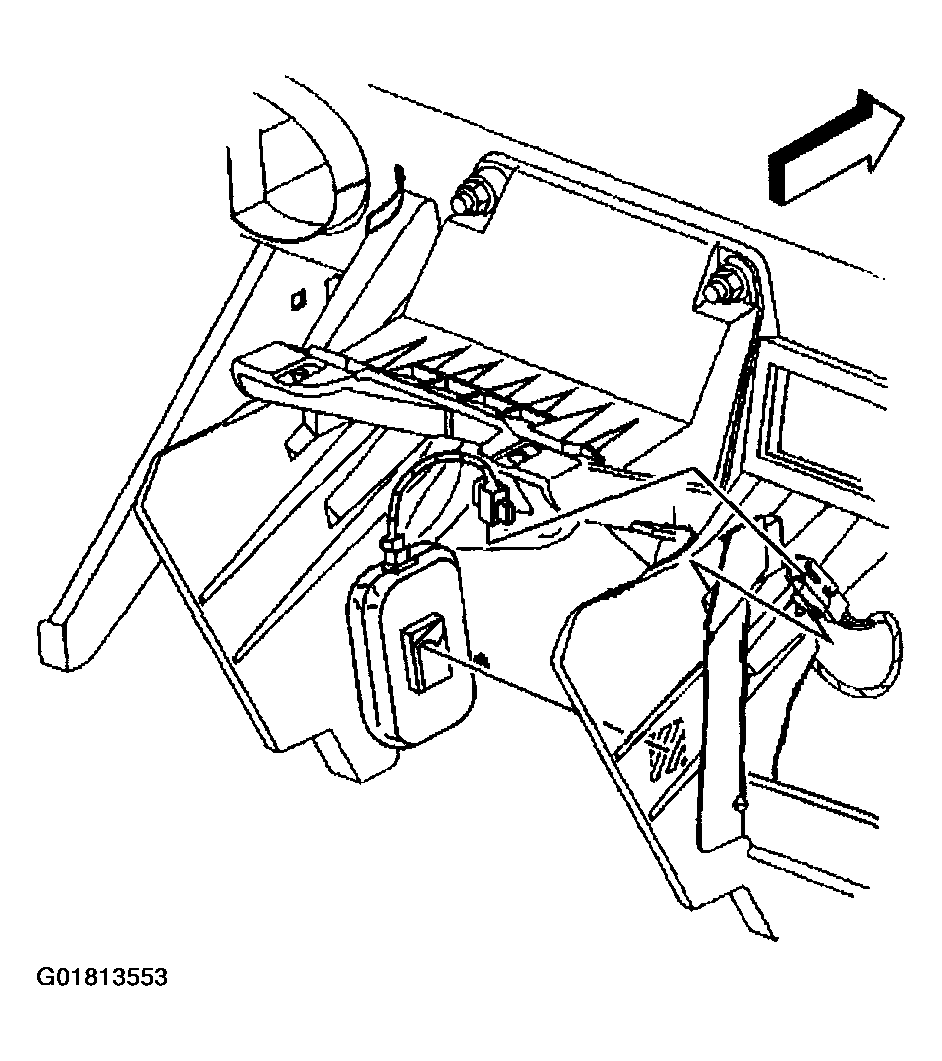

Fig 1: Removing Shock Sensor From Instrument Panel Knee Bolster Bracket
G01813553Courtesy of GENERAL MOTORS CORP.
