Installation Procedure

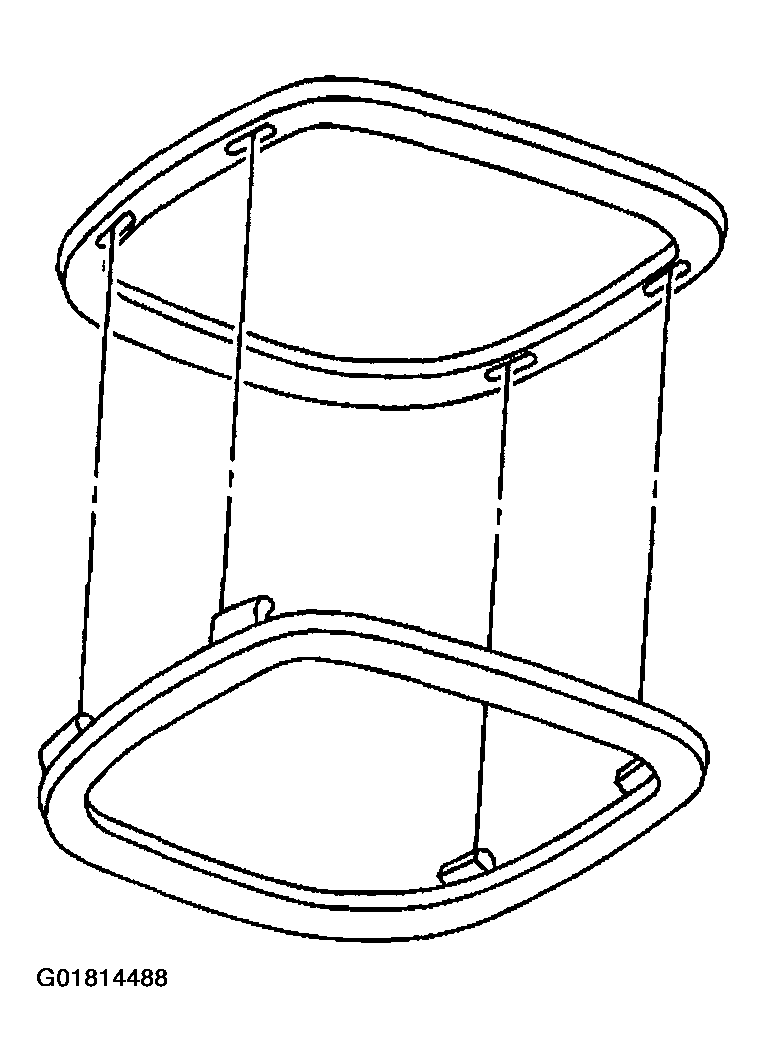

Fig 1: Installing Overhead Console To Headliner (CF5)

Courtesy of GENERAL MOTORS CORP.

Install the overhead console to the headliner.
Install the overhead console retainers into the overhead console bracket.
Connect the electrical connectors to the interior lamp/multifunction switch.

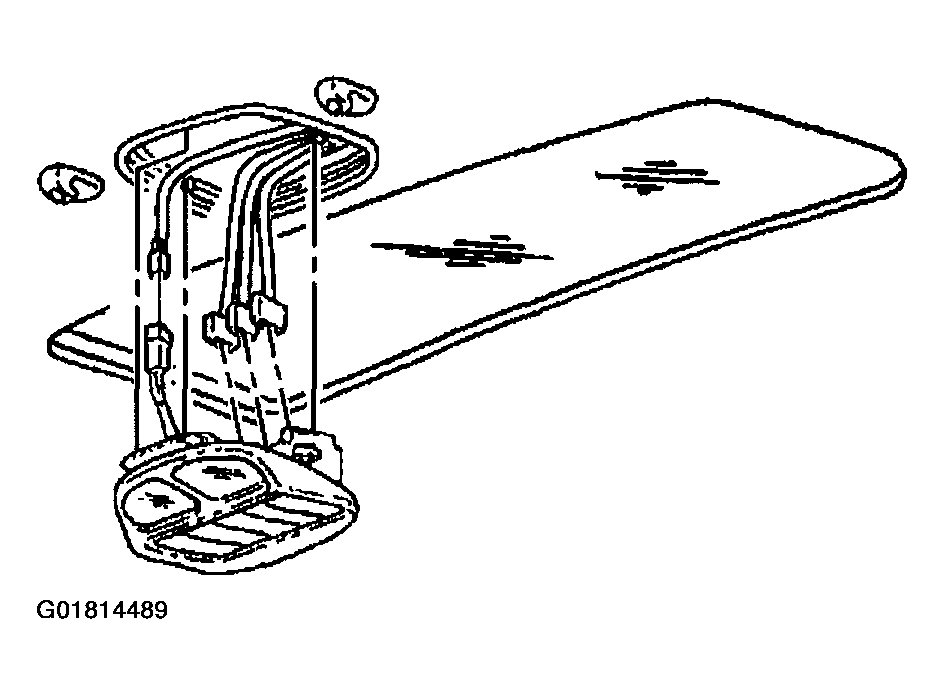

Fig 2: Connecting Electrical Connectors To Interior Lamp/Multifunction Switch (CF5)
Courtesy of GENERAL MOTORS CORP.
Align the retaining tabs on the interior lamp/multifunction switch/reading lamp housing with the overhead console.
Press up on the interior lamp/multifunction switch/reading lamp housing in order to install the housing into the overhead console.
