Installation Procedure

  1. Install the seat back cover (1).
  2. Install the seat back cover retainer rings (2).
  3. Secure the seat back cover to the foam pad with the hook and loop retainers.
  4. Install the seat back to the seat cushion.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the front seat recliner bolts.

    Tighten

    Tighten the bolts to 48 N.m (35 lb ft).

  6. Install the J retainer (1) to the bottom edge of the seat back cover.

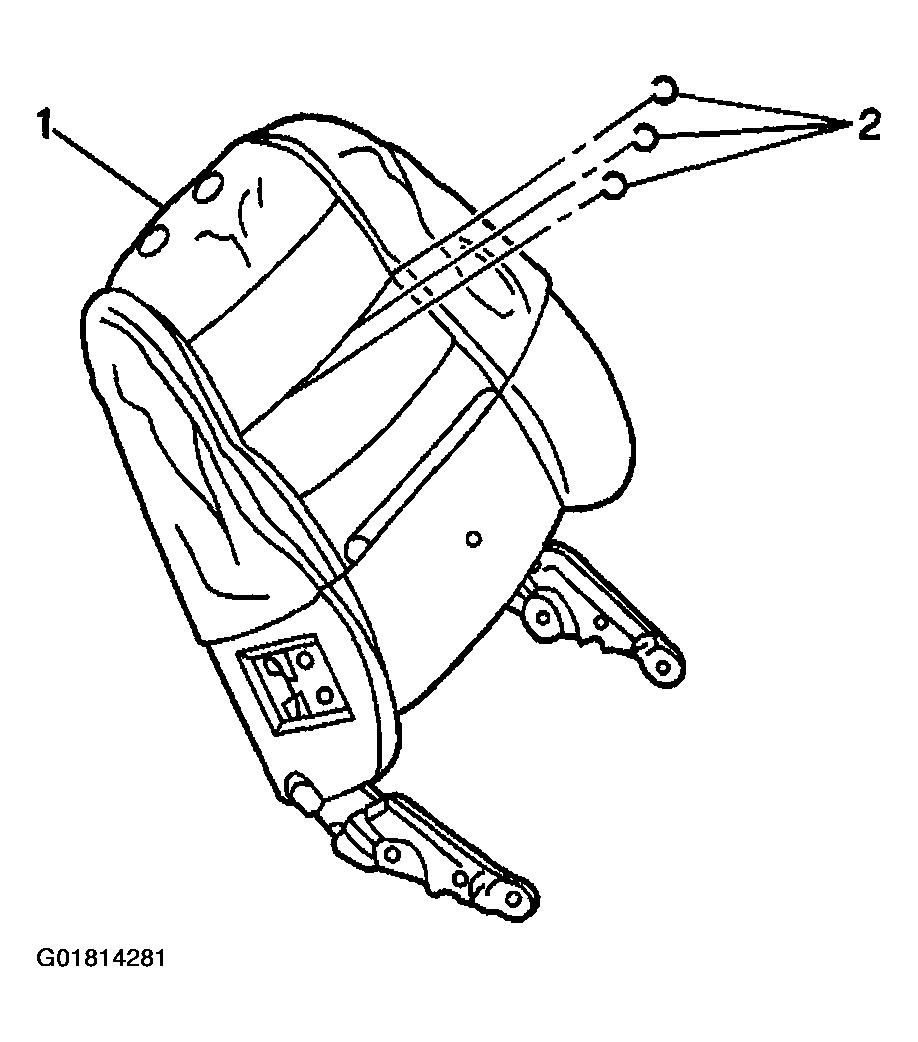

    Fig 1: Installing Seat Back Cover (Front)
    G01814281Courtesy of GENERAL MOTORS CORP.
  7. Install the seat back recliner covers in place.
  8. Install the recliner handle and cap. Refer to Seat Back Recliner Handle Replacement - Front .
  9. Install the finish covers. Refer to Seat Adjuster Track Cover Replacement - Front .
  10. Install the map pocket net. Refer to Map Pocket Net Replacement - Front Seat .
  11. Install the head restraint. Refer to Head Restraint Replacement - Front Seat .
  12. Install the front seat. Refer to Seat Replacement - Bucket .
    Fig 2: Installing J Retainer To Bottom Edge Of Seat Back Cover
    G01814282Courtesy of GENERAL MOTORS CORP.
