Removal Procedure

Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
Remove the front door outside handle rod from the outside handle.
Remove the lock rod from the outside handle lock cylinder.

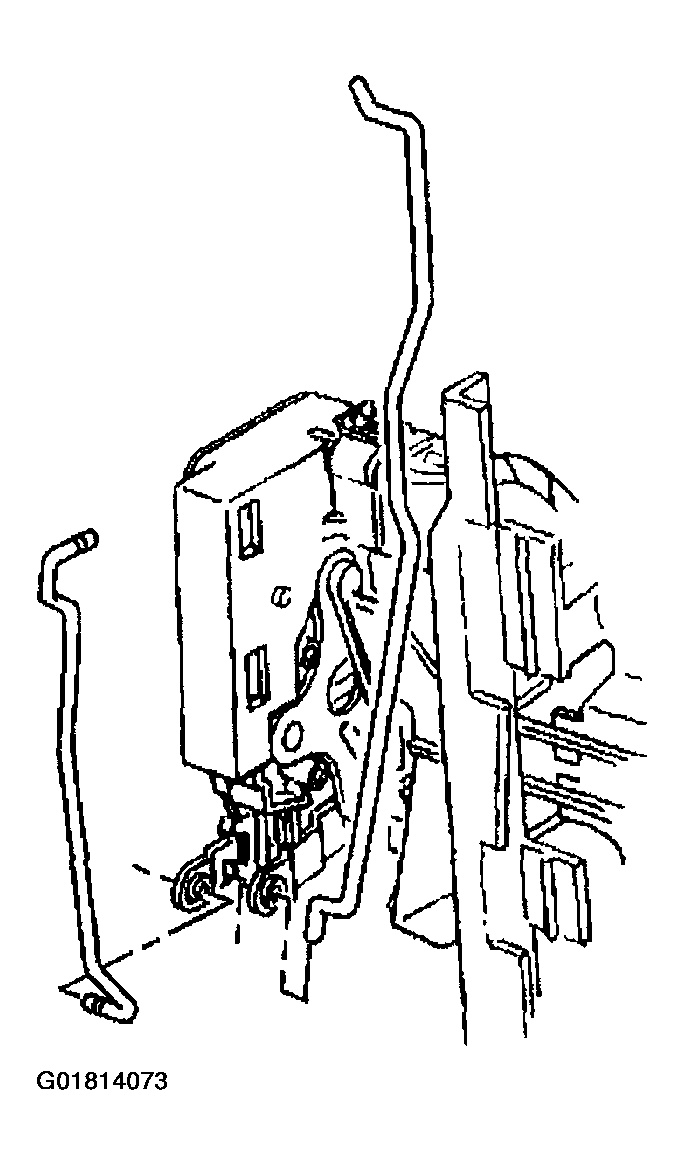

Fig 1: Removing Front Door Outside Handle Rod
Courtesy of GENERAL MOTORS CORP.
Remove the front door lock module harness connector, if equipped.

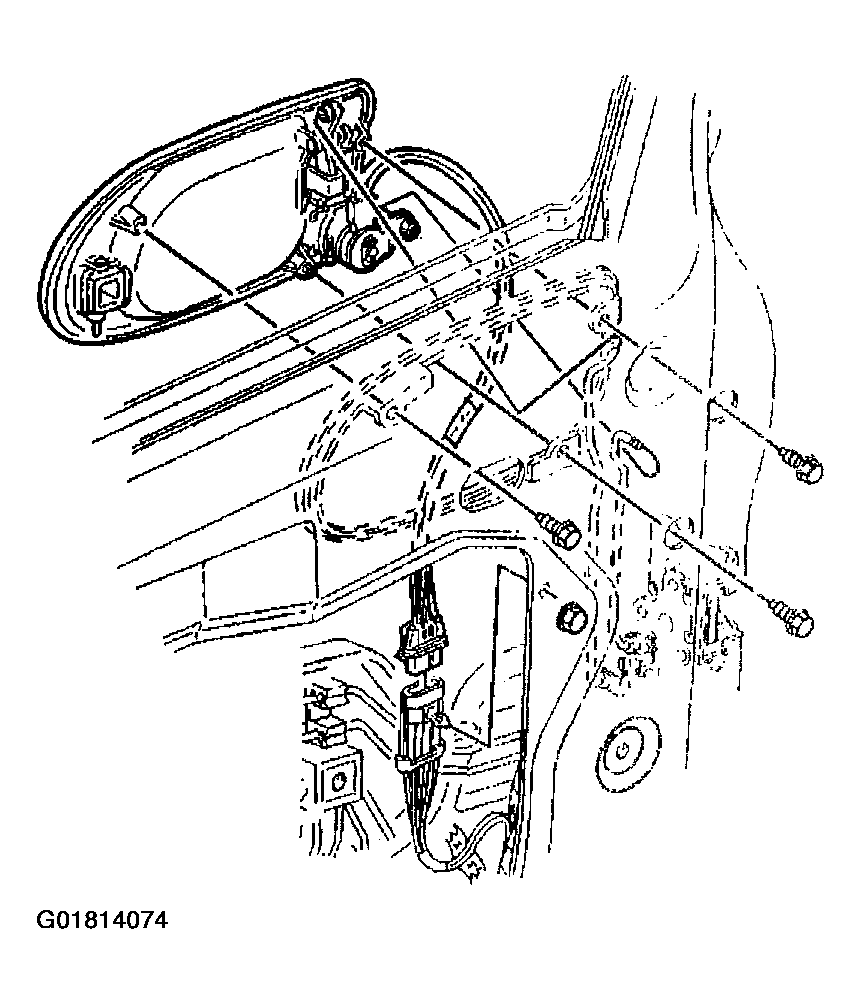

Fig 2: Removing Front Door Outside Handle & Screws
Courtesy of GENERAL MOTORS CORP.
Remove the front door outside handle screws.

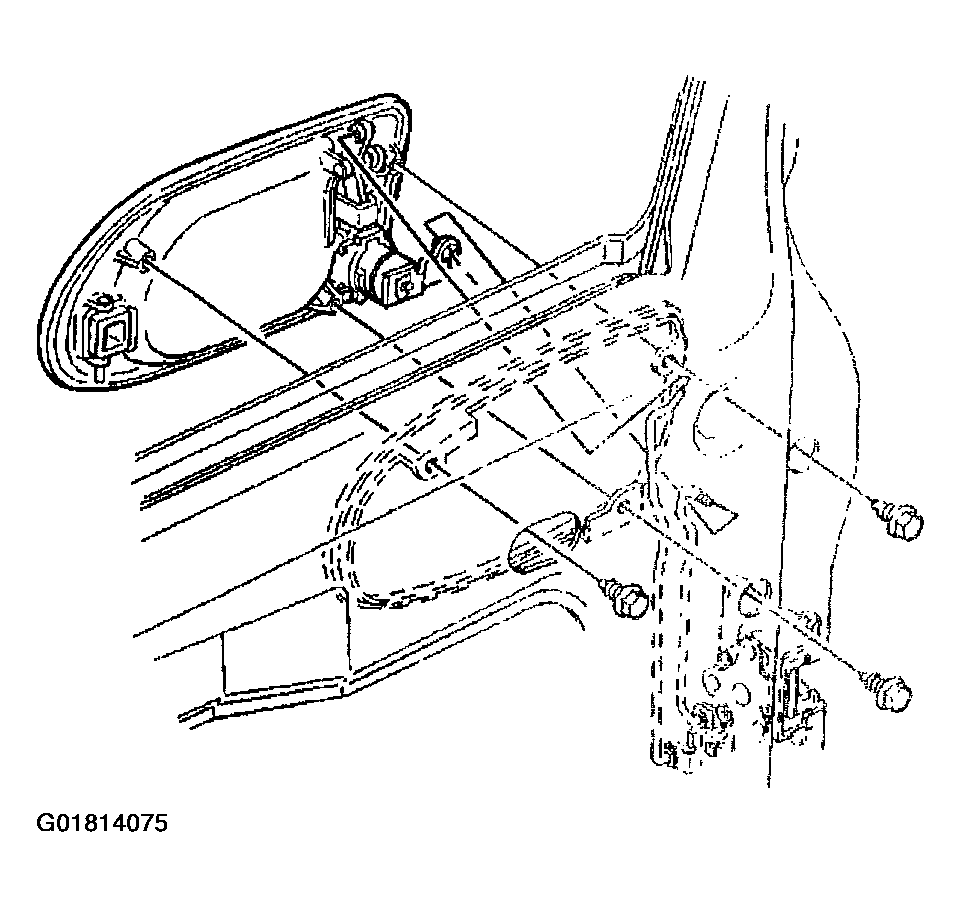

Fig 3: Removing Front Door Outside Handle From Front Door
Courtesy of GENERAL MOTORS CORP.
Remove the front door outside handle from the front door.
