Removal Procedure

  1. Open the sliding door.
  2. Support the sliding door at the bottom.
  3. Remove the pin from the sliding door center roller bracket.
  4. Remove the sliding door lower roller bracket. Refer to Roller Bracket Replacement - Lower .
  5. Remove the sliding door upper roller bracket. Refer to Roller Bracket Replacement - Upper .
  6. With an assistant, remove the sliding door from the vehicle with the aid of an assistant.

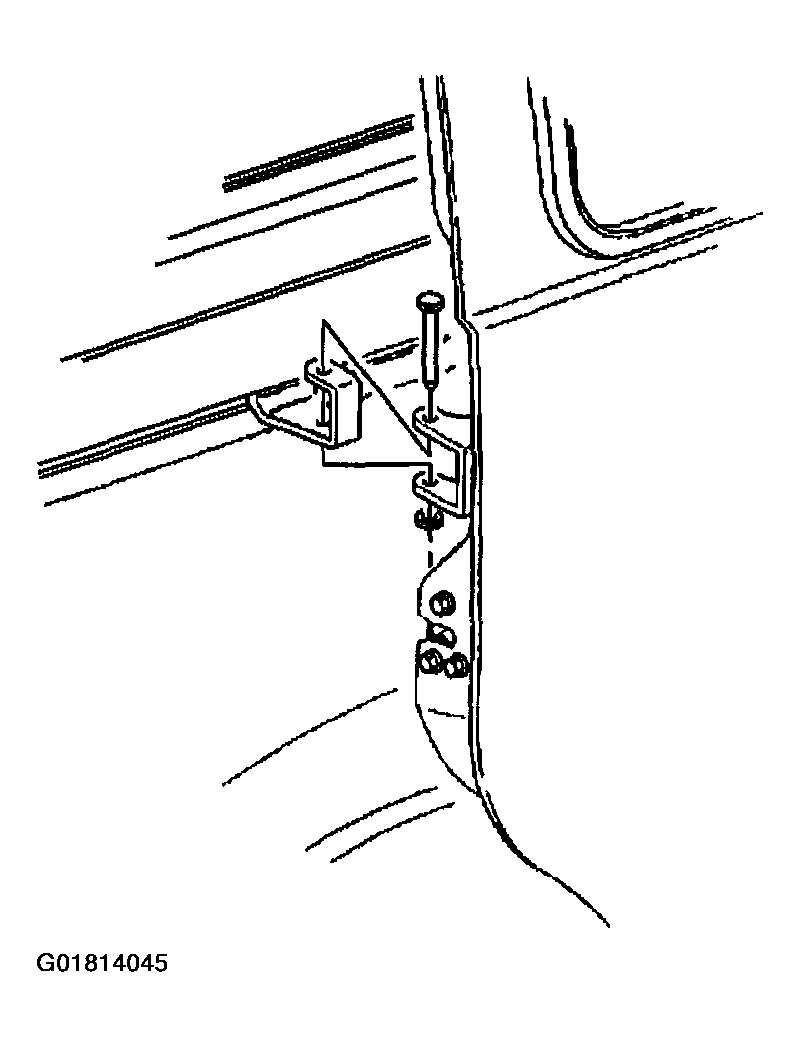

    Fig 1: Removing Sliding Door Lower Roller Bracket
    G01814045Courtesy of GENERAL MOTORS CORP.
