Removal Procedure

  1. Remove the sliding door locating pin screws.
  2. Remove the sliding door locating pin from the vehicle.

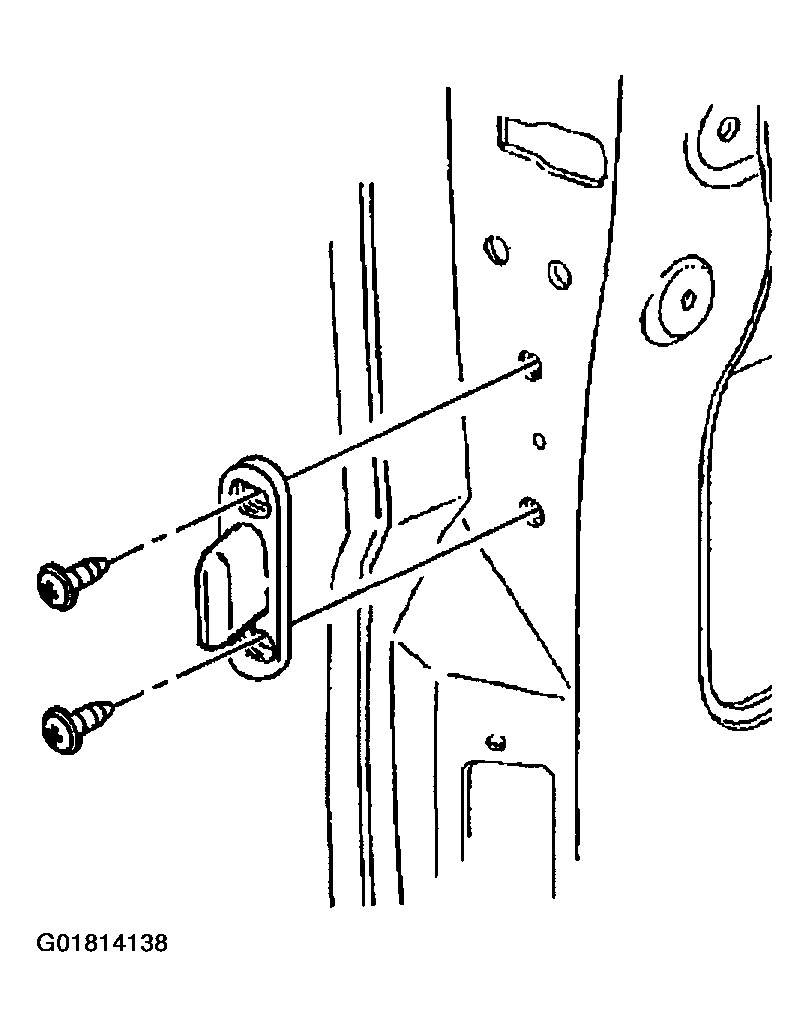

    Fig 1: Removing Sliding Door Locating Pin & Screws
    G01814138Courtesy of GENERAL MOTORS CORP.
