Removal Procedure

  1. Insert a small, flat-bladed tool between the interior lamp/multifunction switch/reading lamp housing and the overhead console.
  2. Press inward and down in order to release the interior lamp/multifunction switch/reading lamp housing from the overhead console.

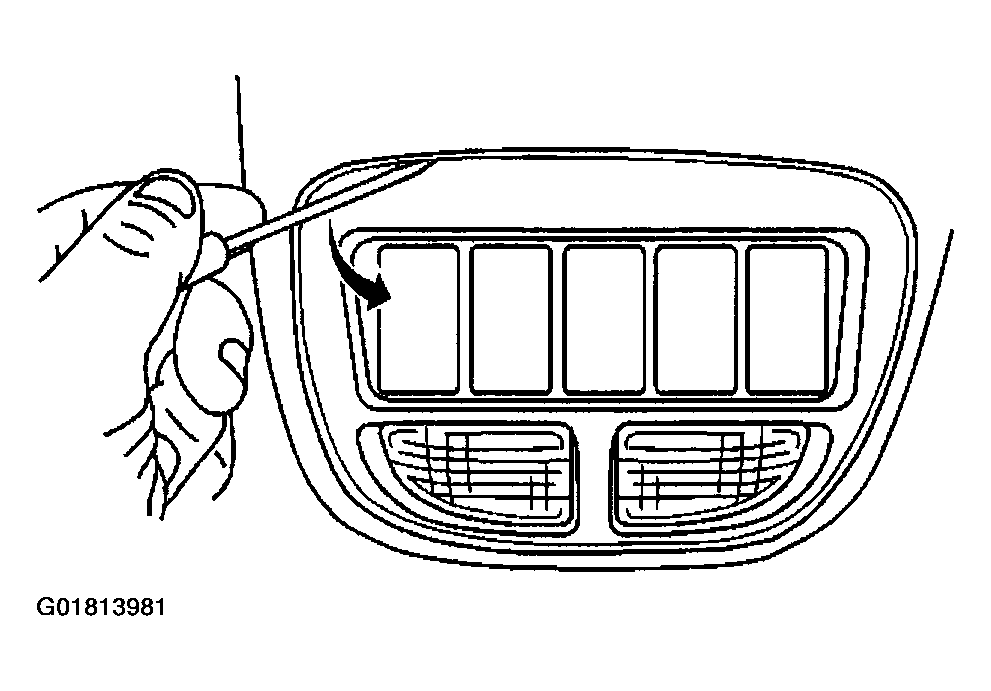

    Fig 1: Interior Lamp/Multifunction Switch/Reading Lamp Housing & Overhead Console
    G01813981Courtesy of GENERAL MOTORS CORP.
  3. Remove the interior lamp/multifunction switch/reading lamp housing from the overhead console.
  4. Disconnect the electrical connectors from the interior lamp/multifunction switch.

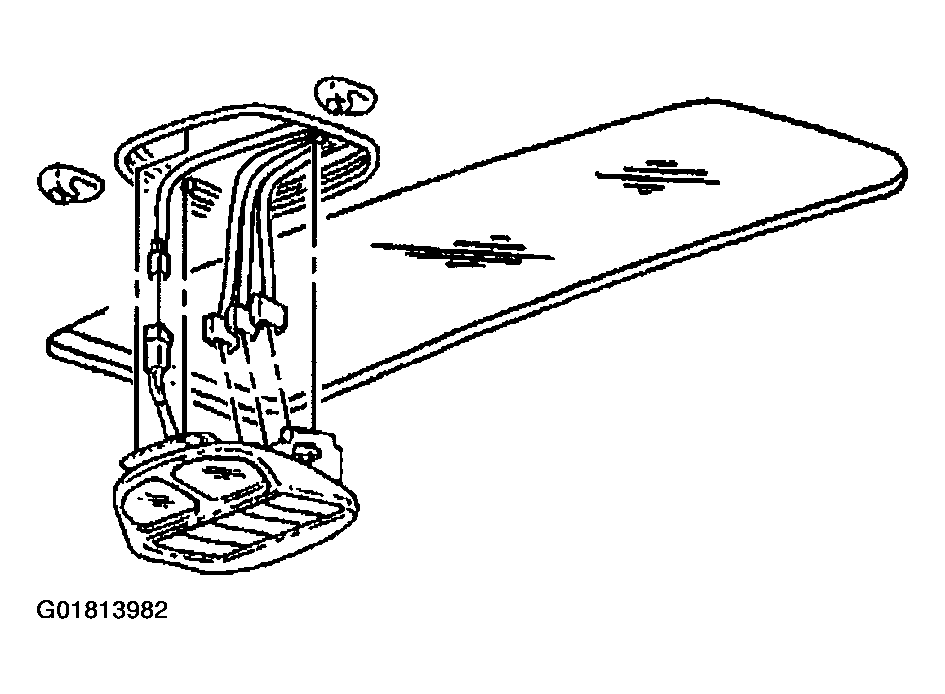

    Fig 2: Disconnecting Electrical Connectors From Interior Lamp/Multifunction Switch
    G01813982Courtesy of GENERAL MOTORS CORP.
  5. Remove the interior lamp/multifunction switch by using pliers in order to compress the interior lamp/multifunction switch retainers while pulling switch away from the housing.

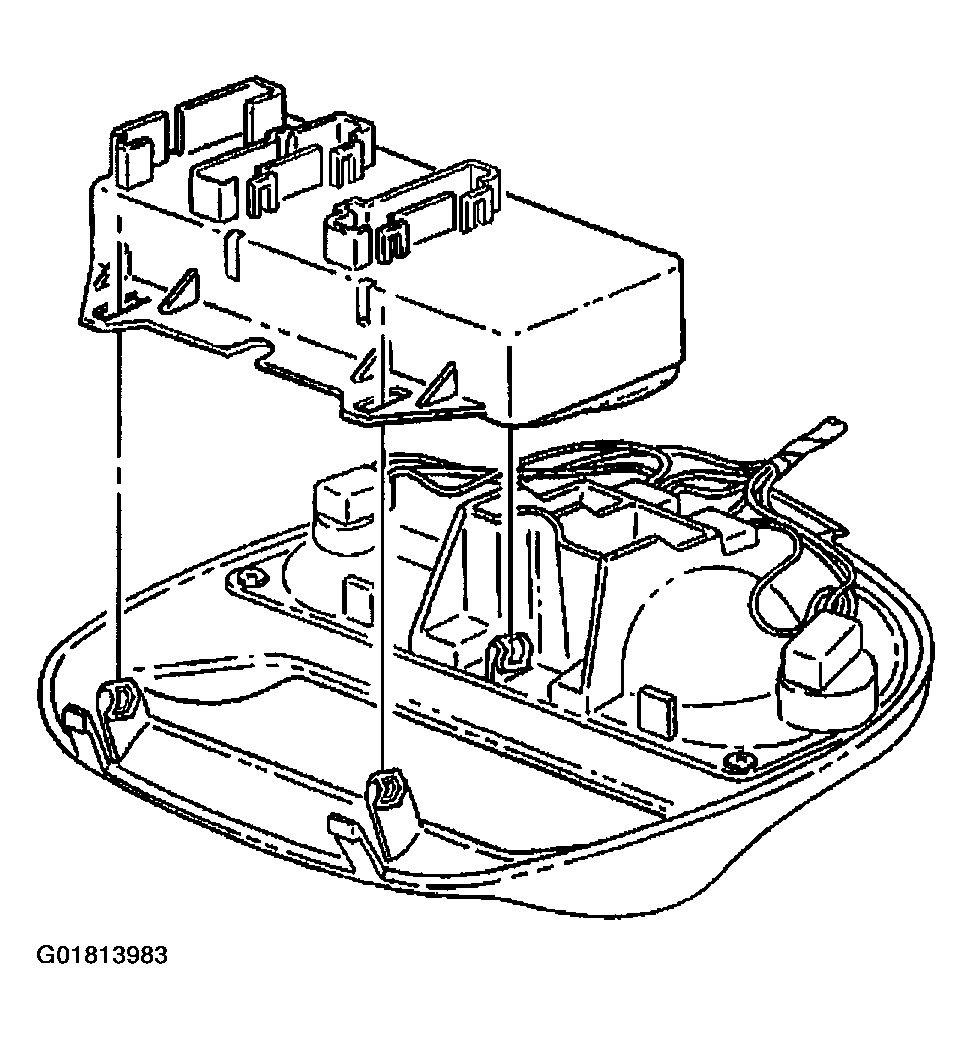

    Fig 3: Removing Interior Lamp/Multifunction Switch
    G01813983Courtesy of GENERAL MOTORS CORP.
