Removal Procedure

Remove the sliding door garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR .
Use a small flat-bladed tool in order to remove the sliding door swing out window access hole plugs from the sliding door.

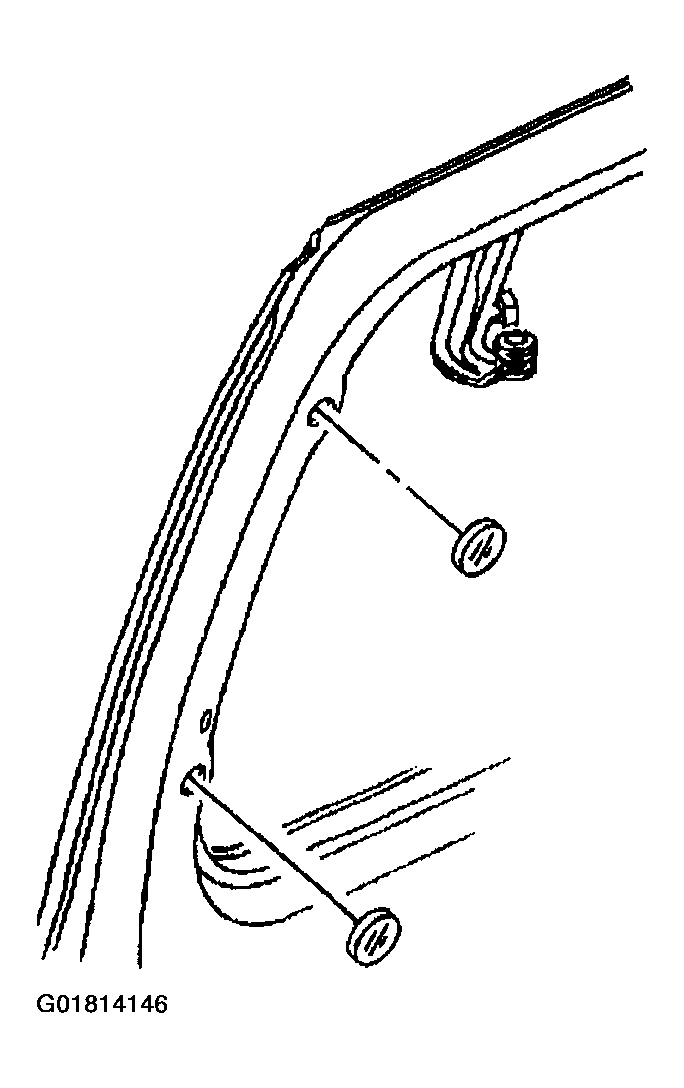

Fig 1: Removing Sliding Door Swing Out Window Access Hole Plugs
Courtesy of GENERAL MOTORS CORP.
Remove the sliding door swing out window latch screws.

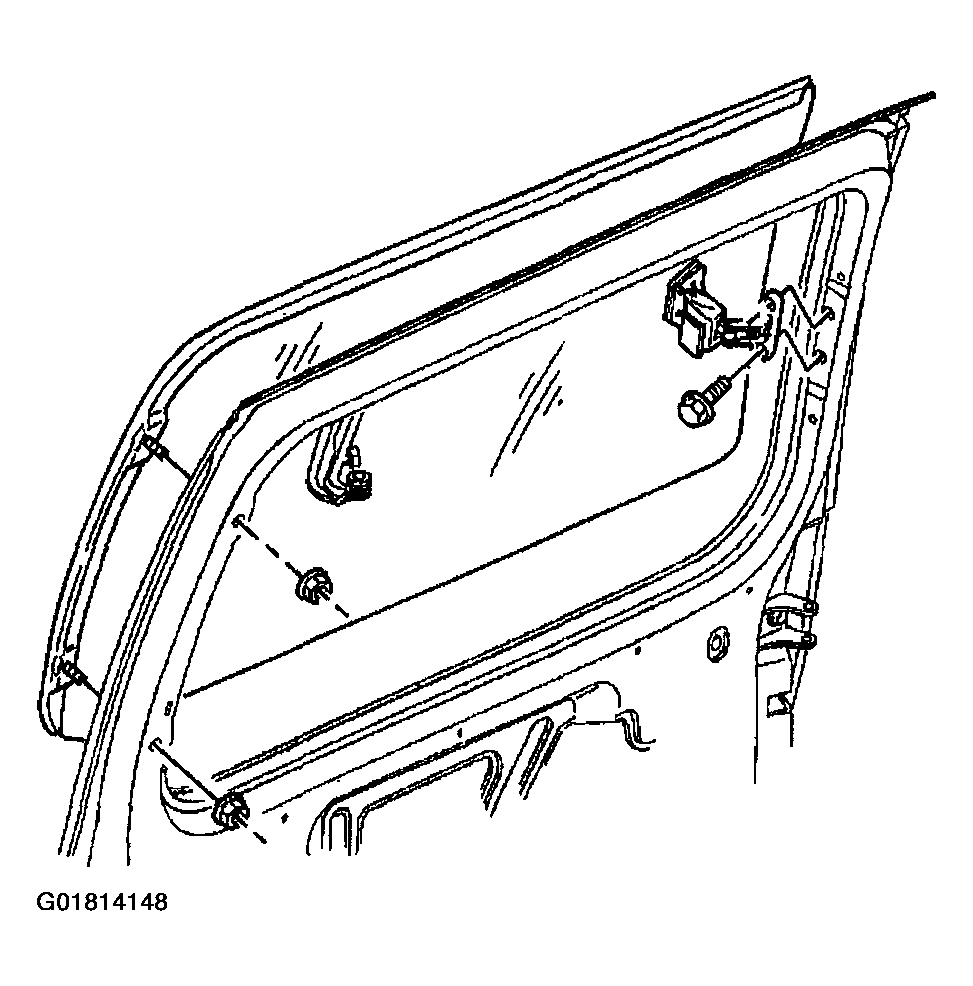

Fig 2: Removing Sliding Door Swing Out Window Latch & Screws
Courtesy of GENERAL MOTORS CORP.
Remove the sliding door swing out window hinge stud nuts.
Remove the sliding door swing out window from the sliding door.

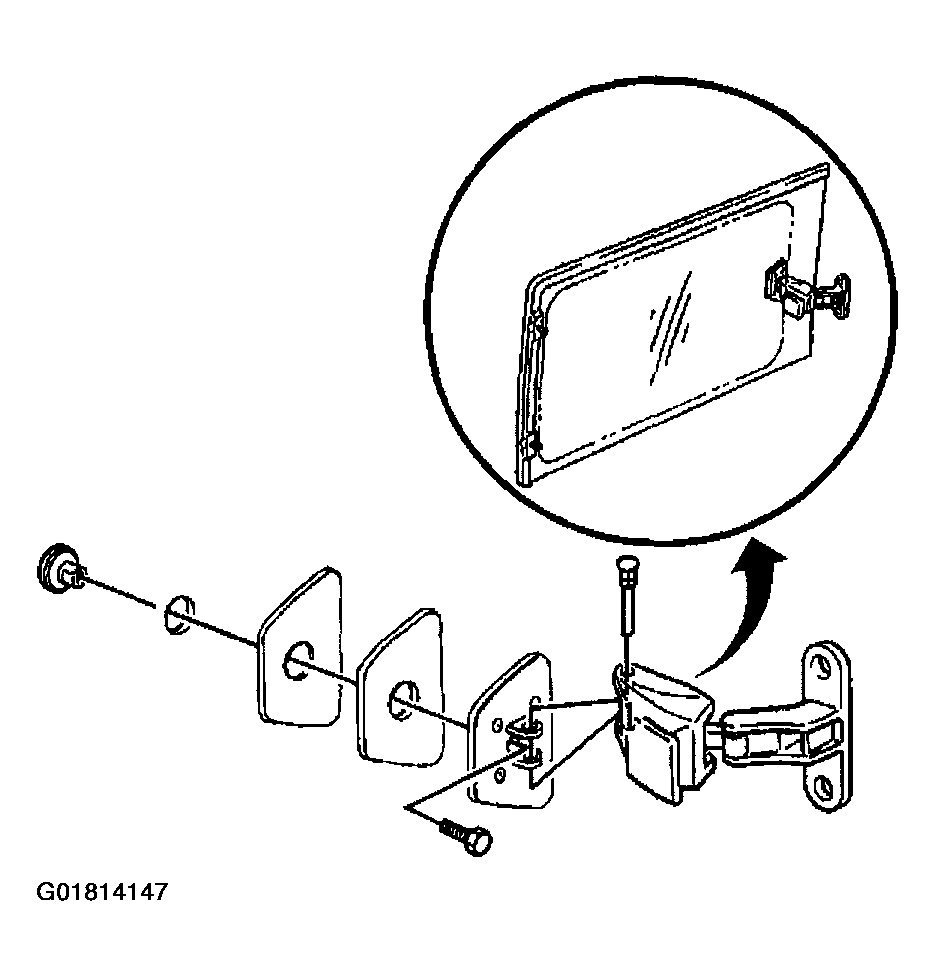

Fig 3: Removing Sliding Door Swing Out Window Hinge, Stud & Nuts
Courtesy of GENERAL MOTORS CORP.
