Removal Procedure

  1. Remove the right side instrument panel insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Remove the rear window Defogger timer/relay (2) from the relay block (1).

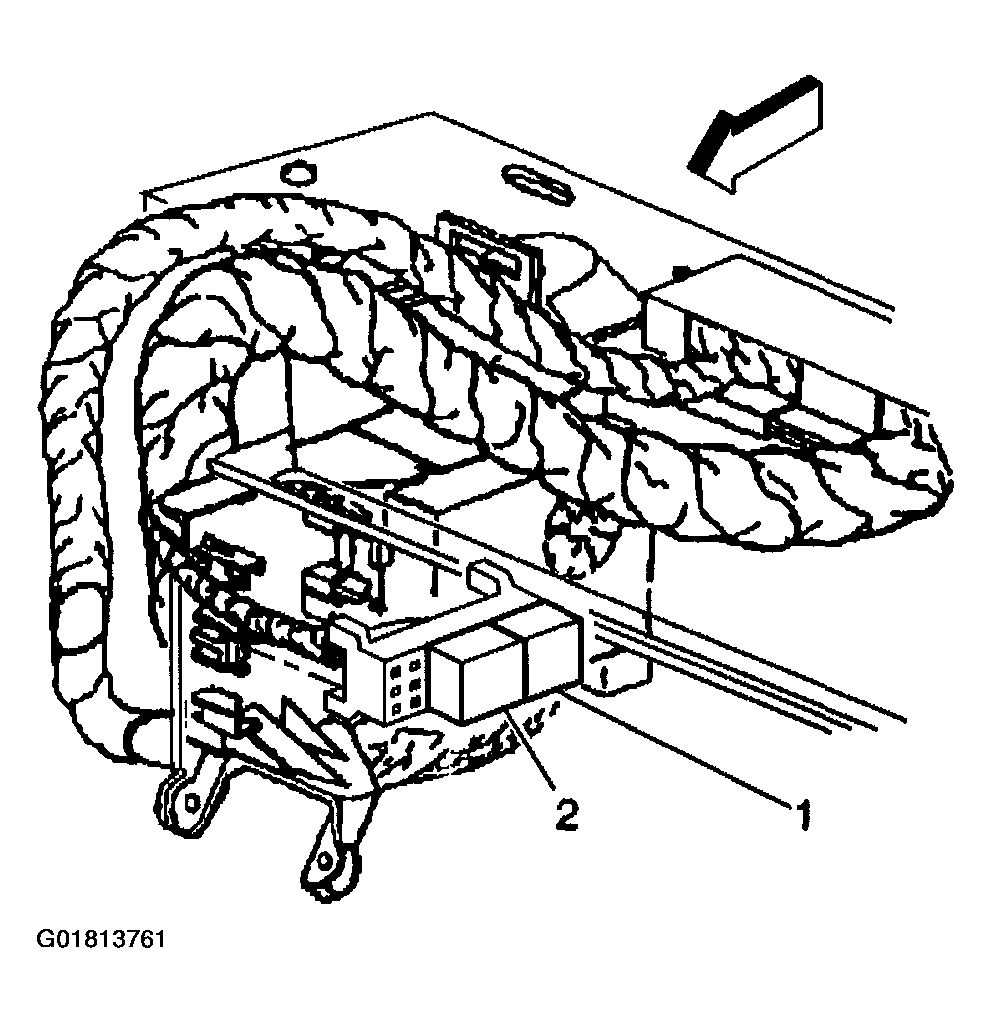

    Fig 1: Removing Rear Window Defogger Timer/Relay From Relay Block
    G01813761Courtesy of GENERAL MOTORS CORP.
