ABS Component Views
ABS Component Views

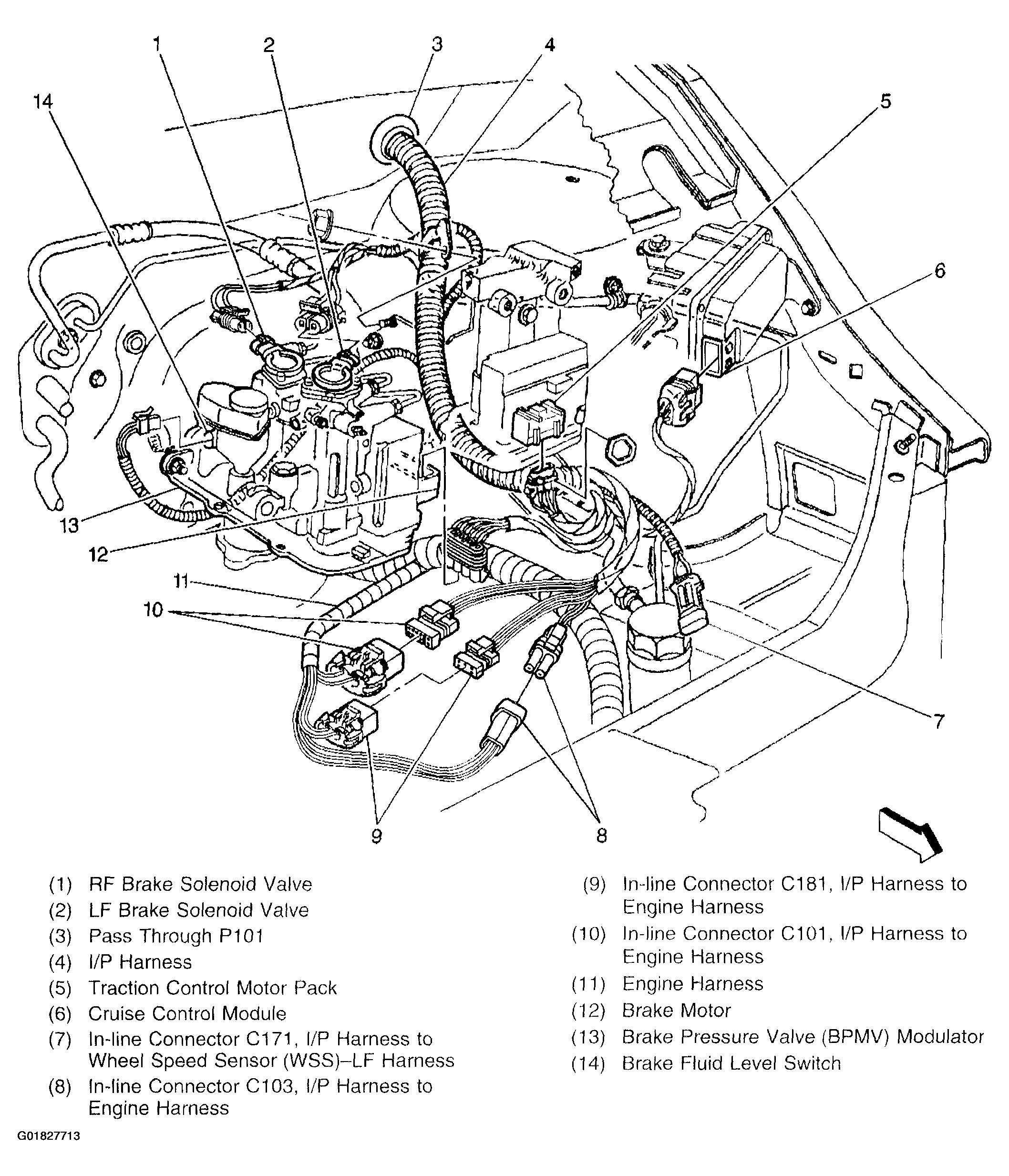

Fig 1: LH Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

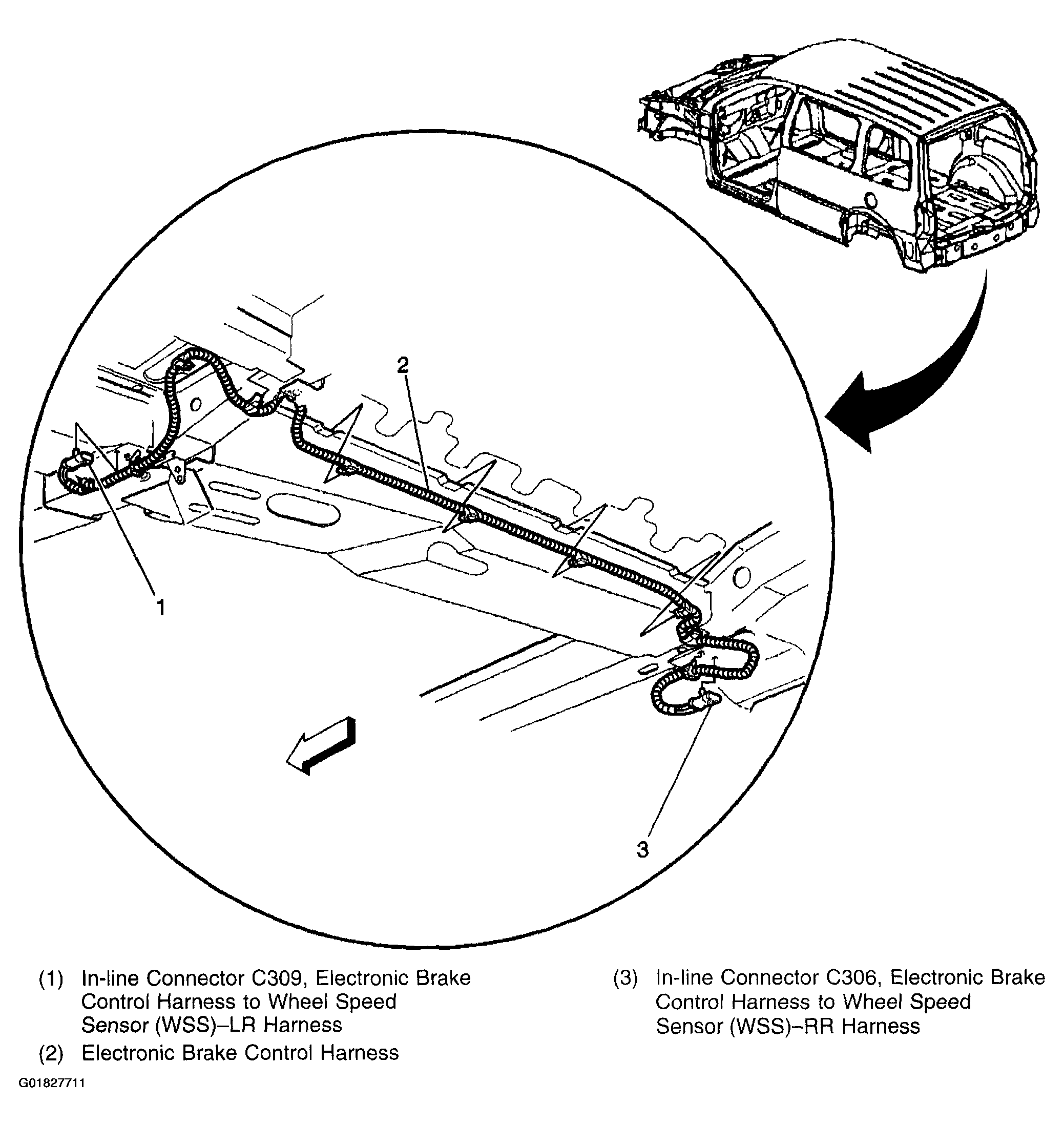

Fig 2: Underneath Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

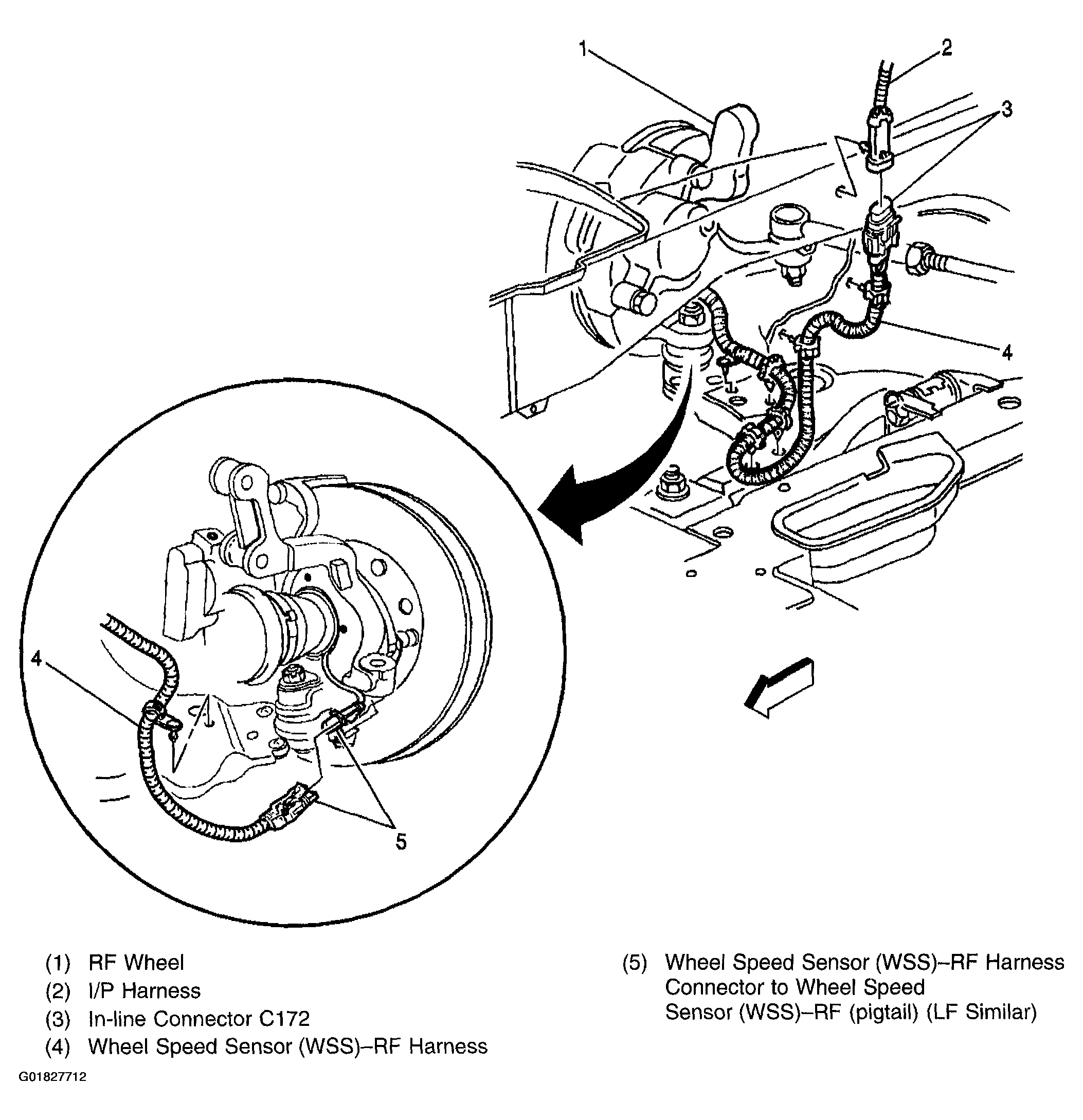

Fig 3: Wheel Speed Sensor (WSS) - RF (LF Similar)
Courtesy of GENERAL MOTORS CORP.

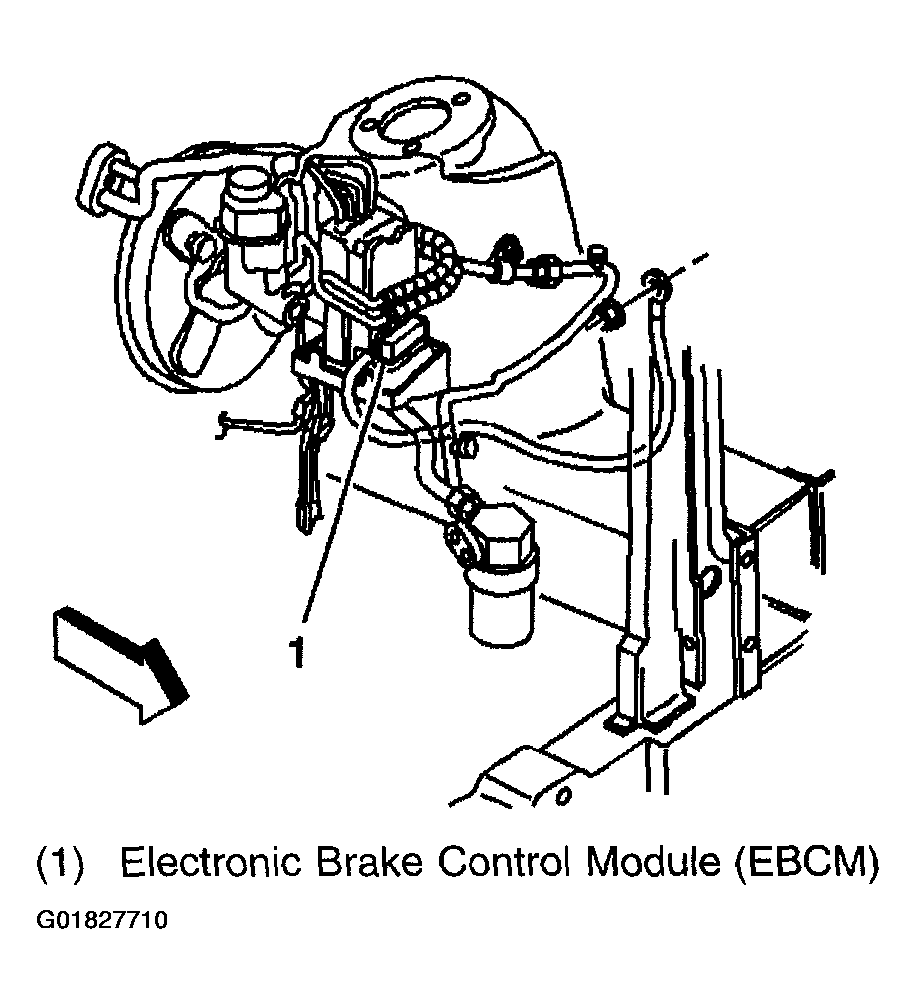

Fig 4: LH Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
