ABS Connector End Views

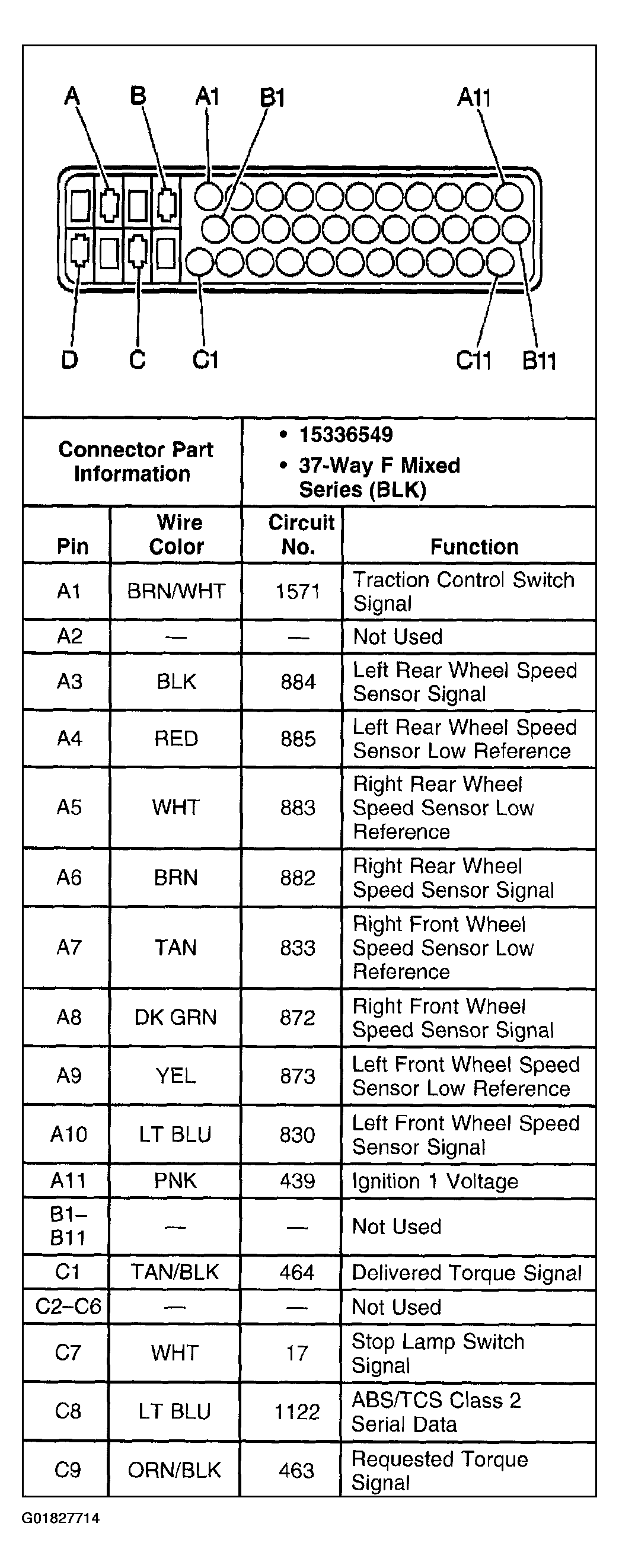

Fig 1: Electronic Brake Control Module (EBCM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

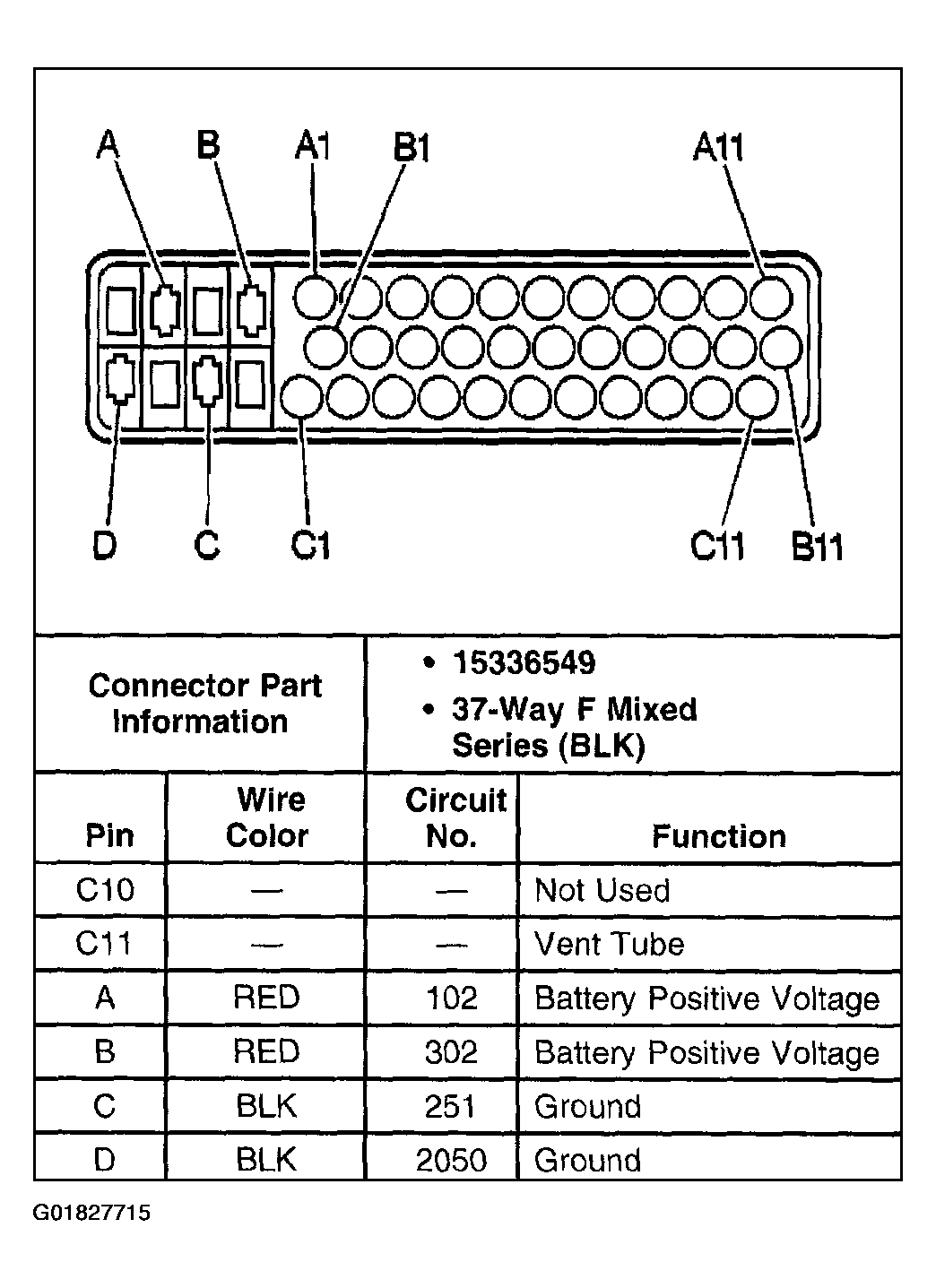

Fig 2: Electronic Brake Control Module (EBCM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

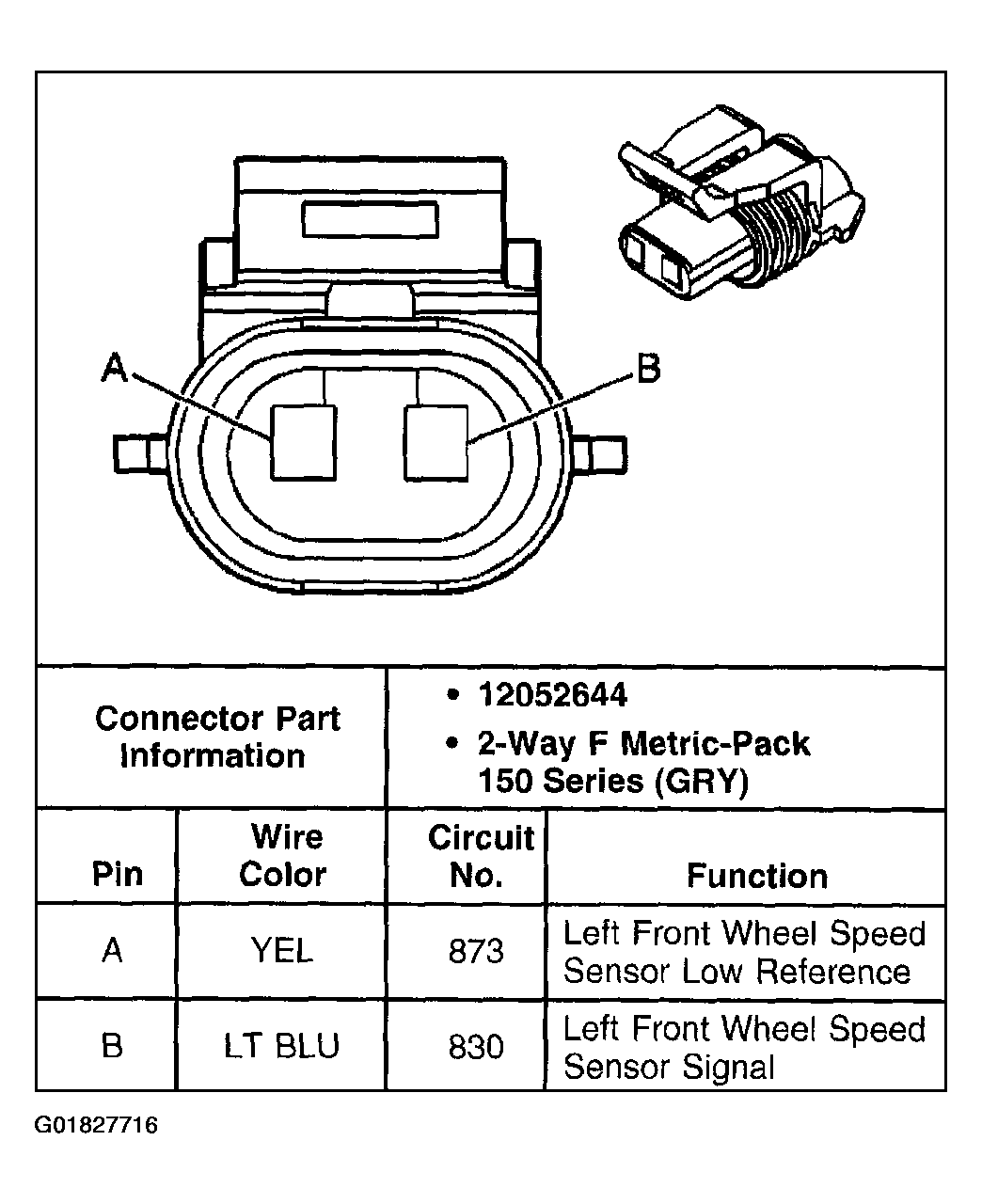

Fig 3: Wheel Speed Sensor (WSS)-LF

Courtesy of GENERAL MOTORS CORP.

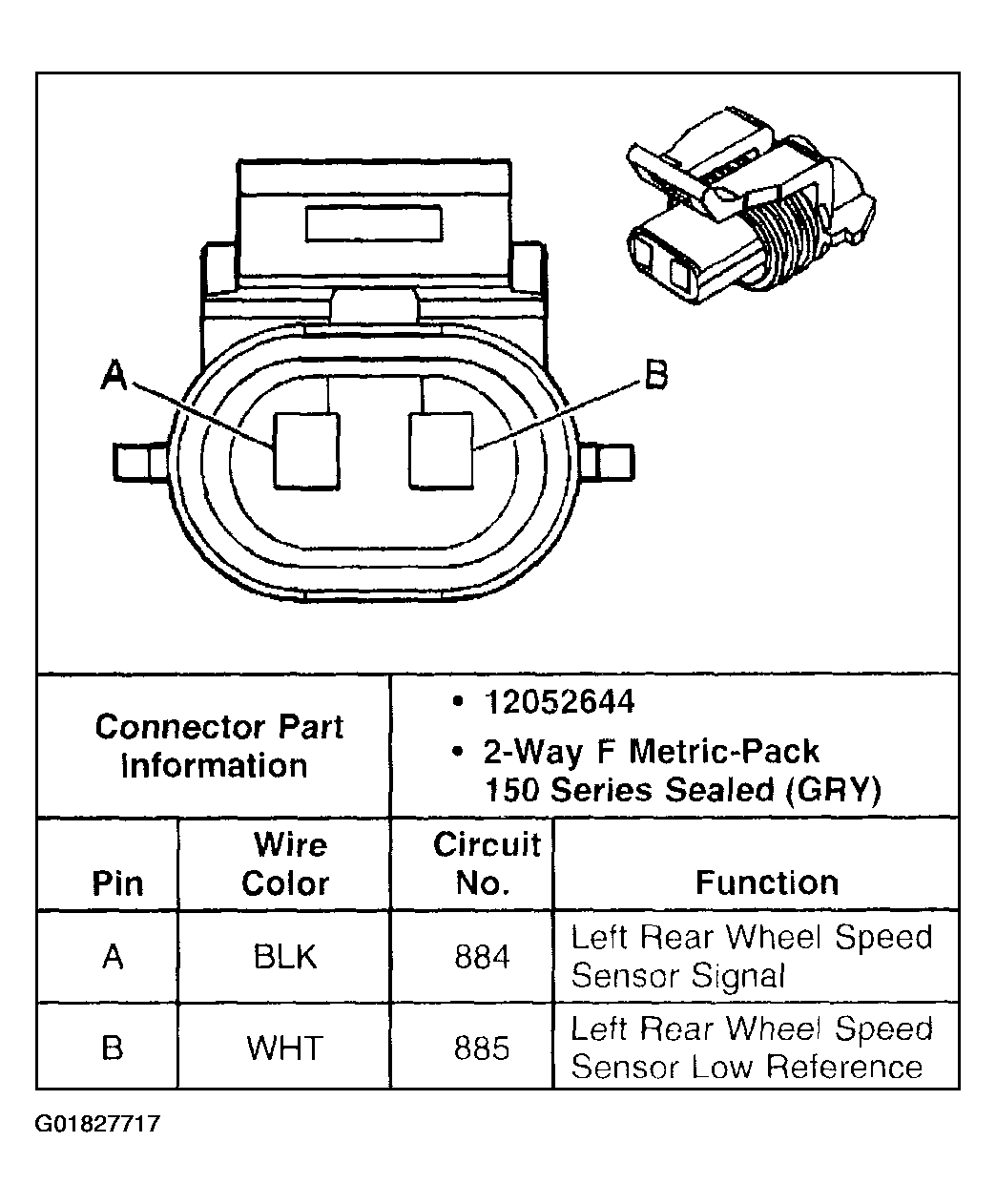

Fig 4: Wheel Speed Sensor (WSS)-LR

Courtesy of GENERAL MOTORS CORP.

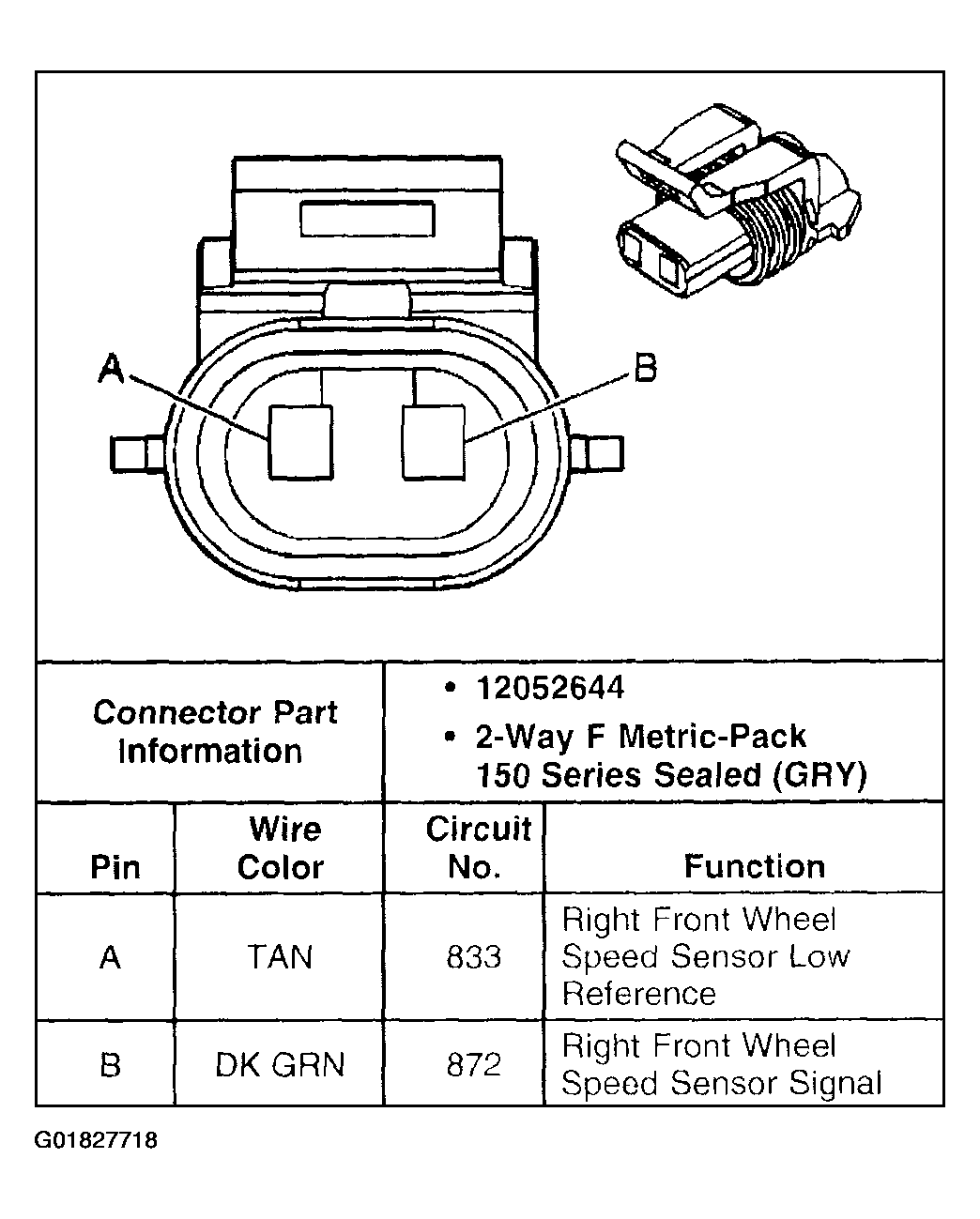

Fig 5: Wheel Speed Sensor (WSS)-RF

Courtesy of GENERAL MOTORS CORP.

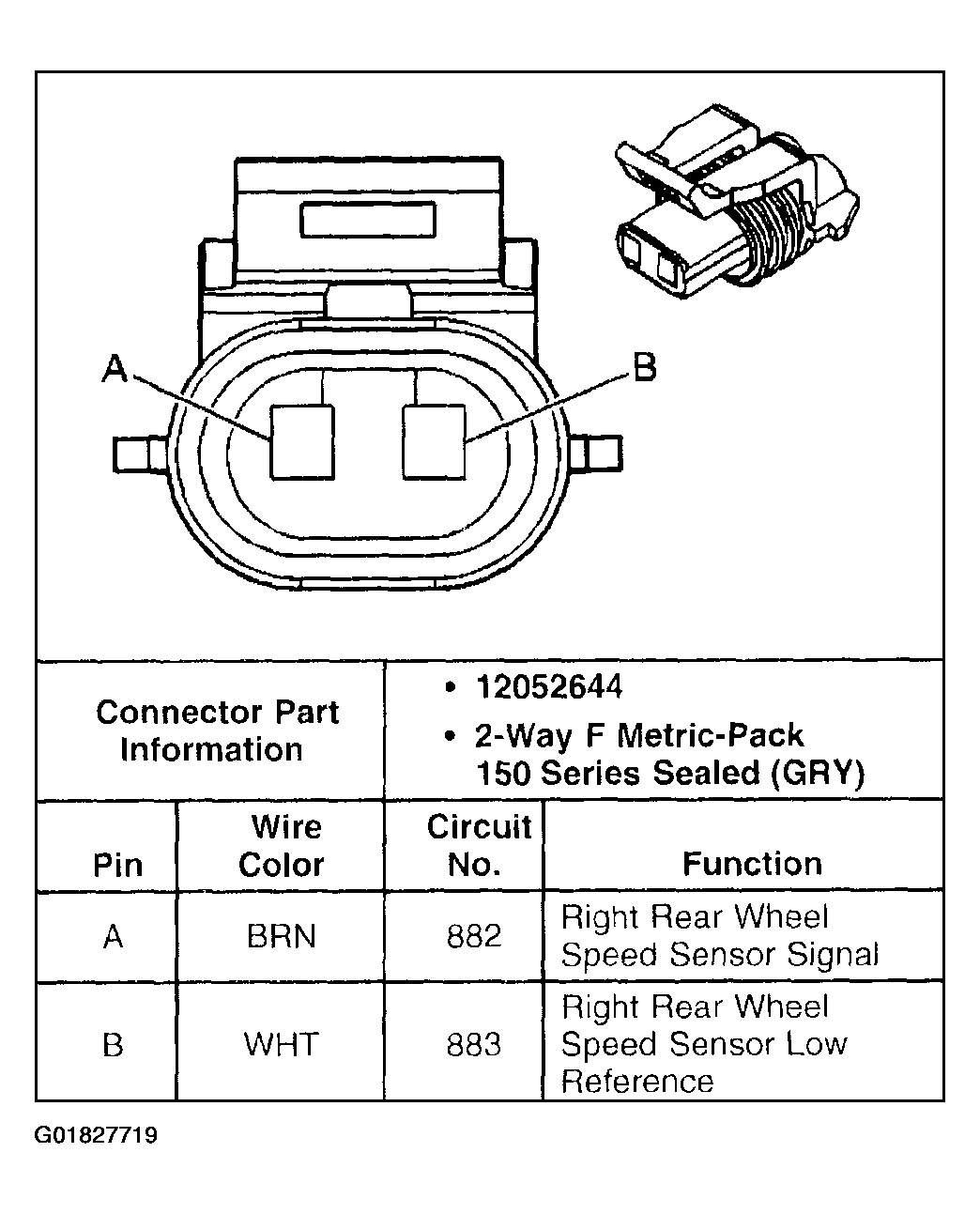

Fig 6: Wheel Speed Sensor (WSS)-RR

Courtesy of GENERAL MOTORS CORP.
