A/C Refrigerant Pressure Sensor Connector End View
A/C Refrigerant Pressure Sensor Connector End View

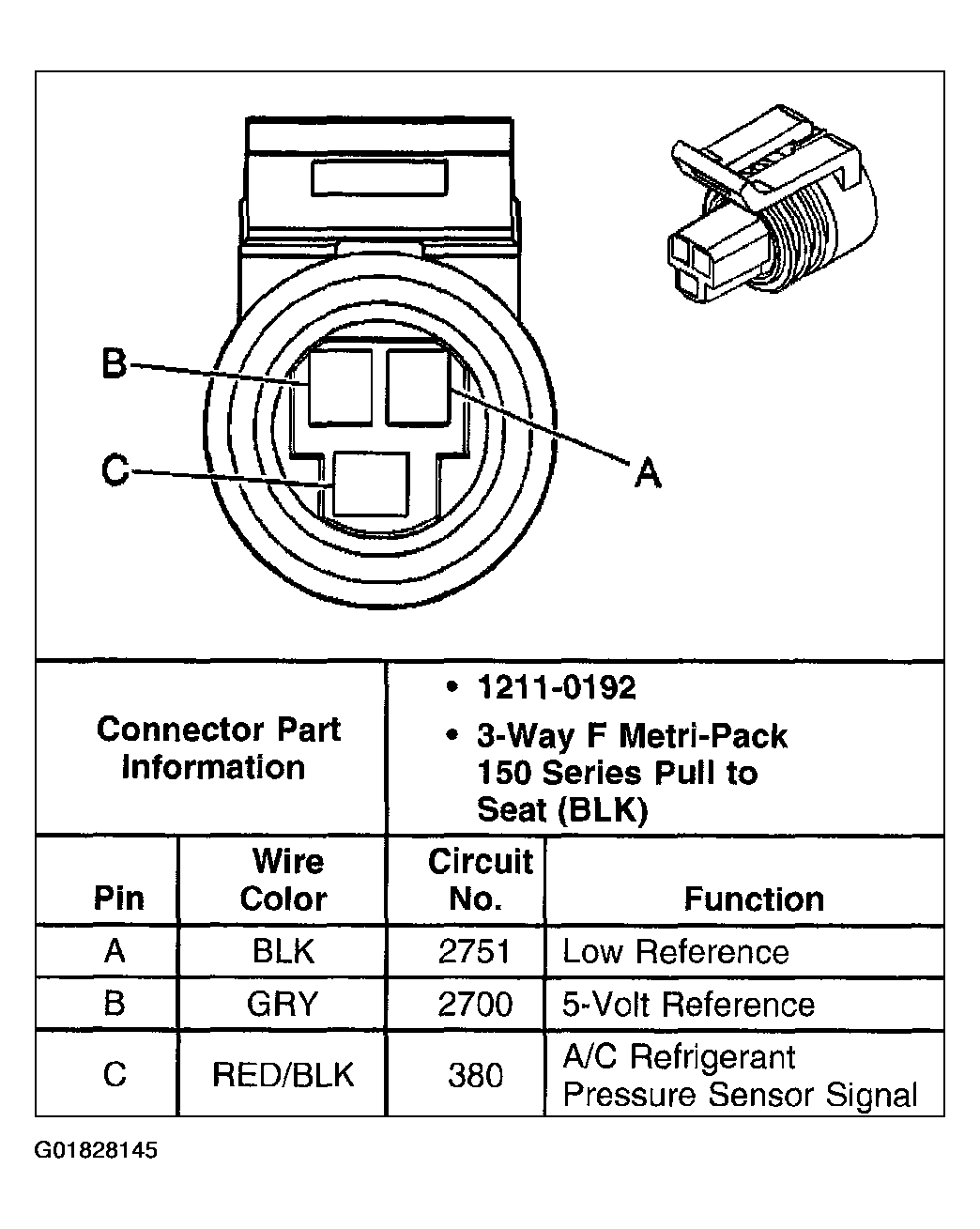

Fig 1: A/C Refrigerant Pressure Sensor
Courtesy of GENERAL MOTORS CORP.

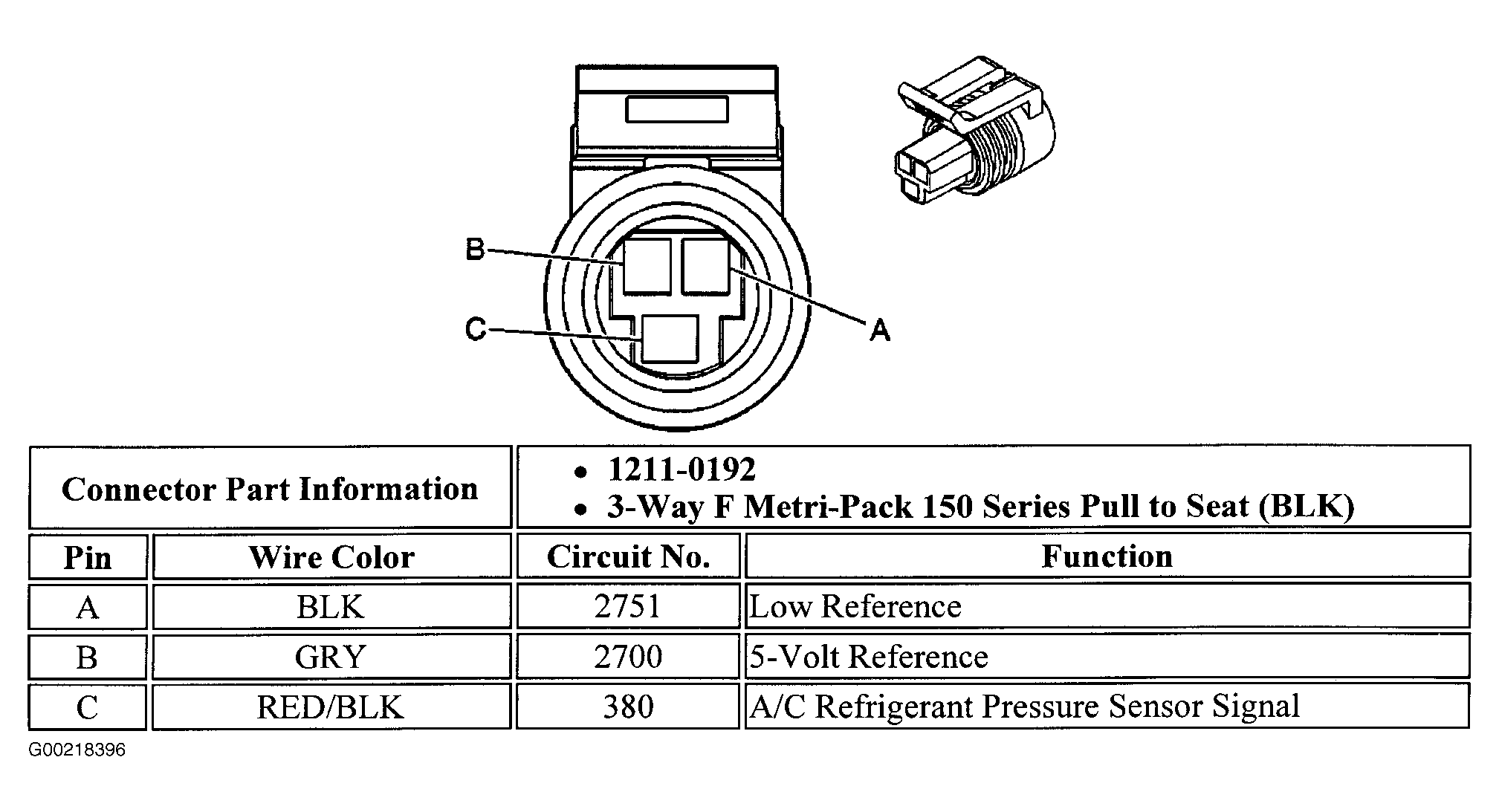

Fig 1: A/C Refrigerant Pressure Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
