Auxiliary Blower Motor Resistor Assembly Connector End View

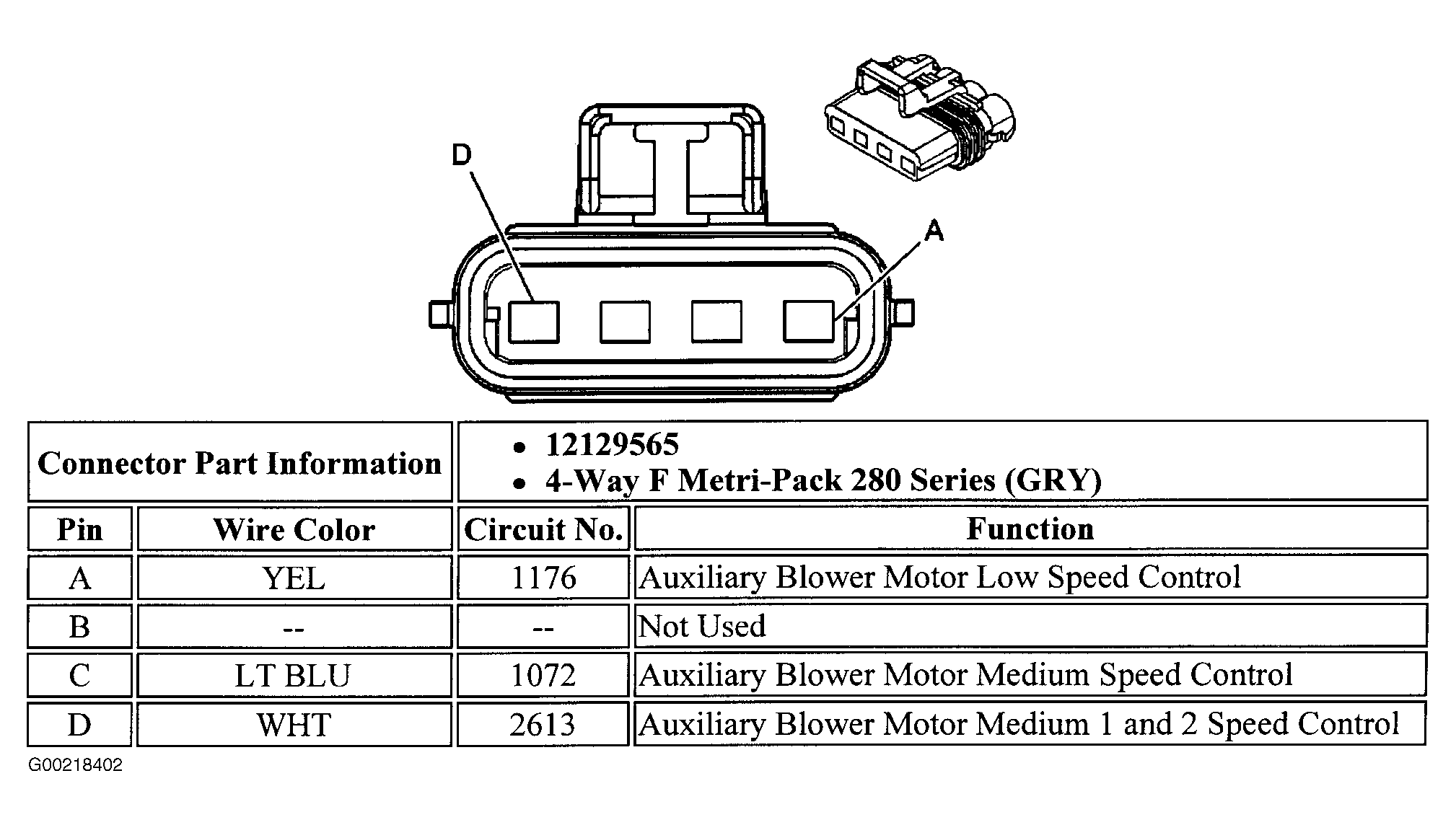

Fig 1: Auxiliary Blower Motor Resistor Assembly
G00218402Courtesy of GENERAL MOTORS CORP.
