Auxiliary Mode Actuator Connector End View

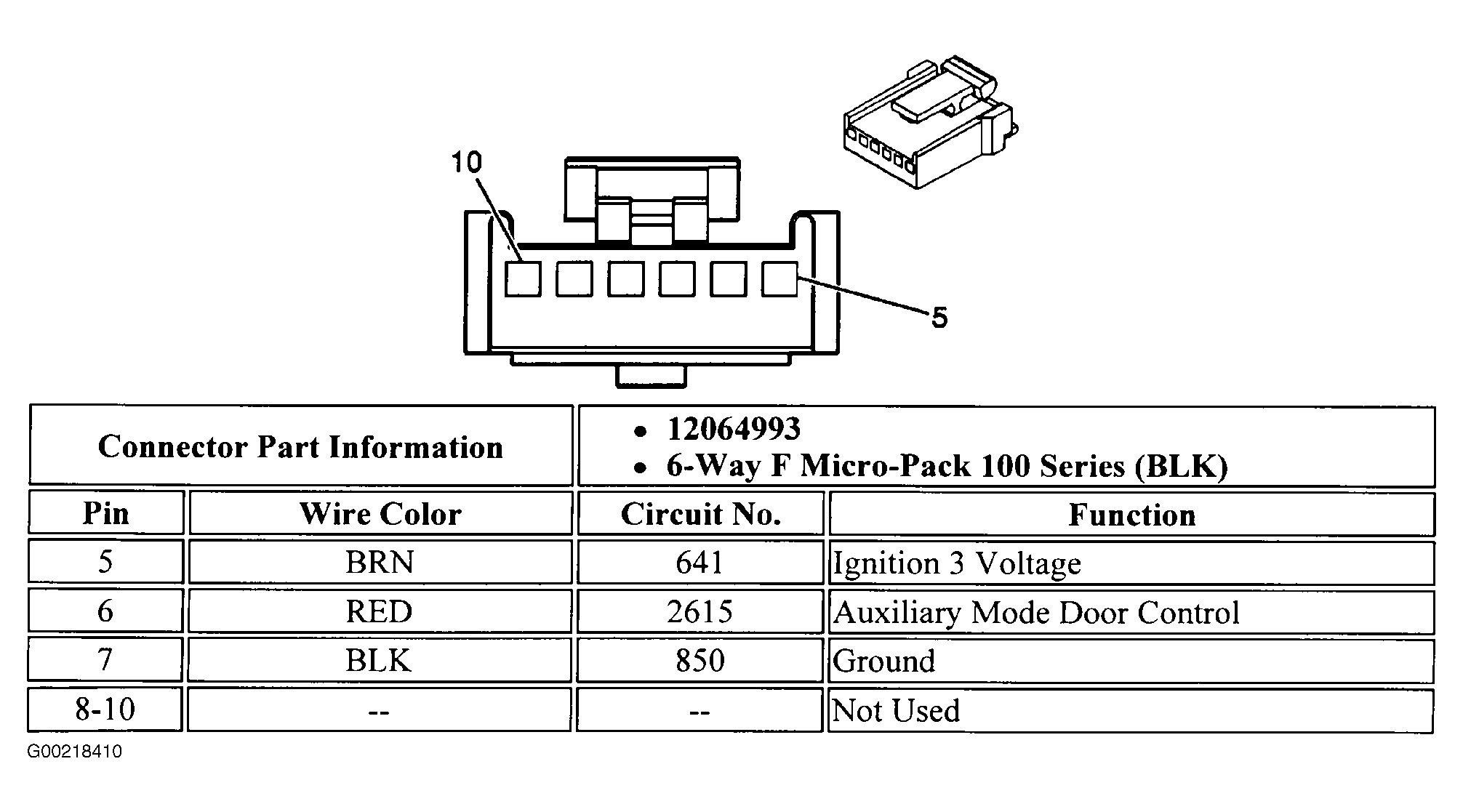

Fig 1: Auxiliary Mode Actuator
G00218410Courtesy of GENERAL MOTORS CORP.
