Electronic Frontal Sensor Connector End View - Left

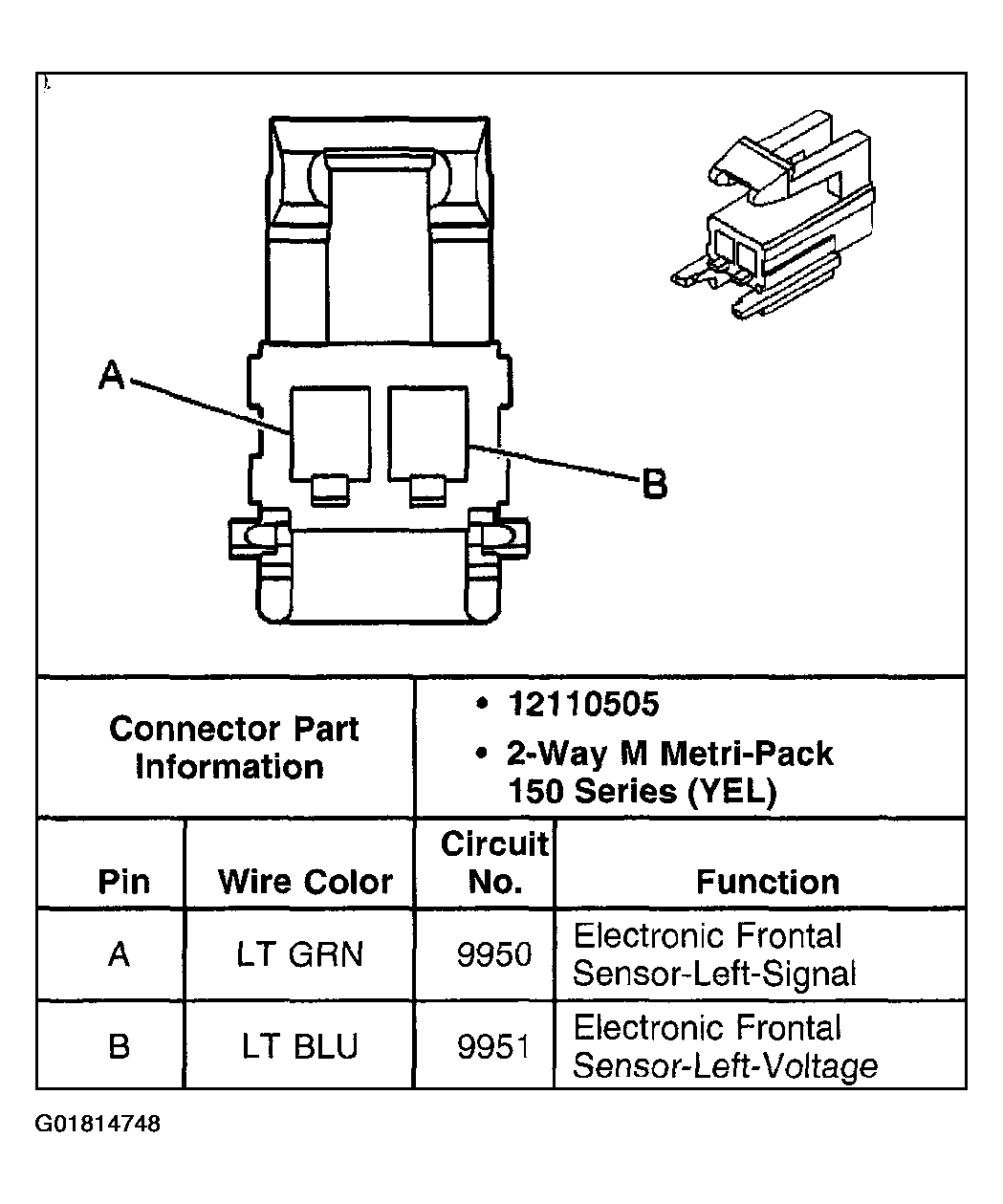

Fig 1: Electronic Frontal Sensor - Left
G01814748Courtesy of GENERAL MOTORS CORP.
