Evaporative Temperature Sensor Connector End View
Evaporative Temperature Sensor Connector End View

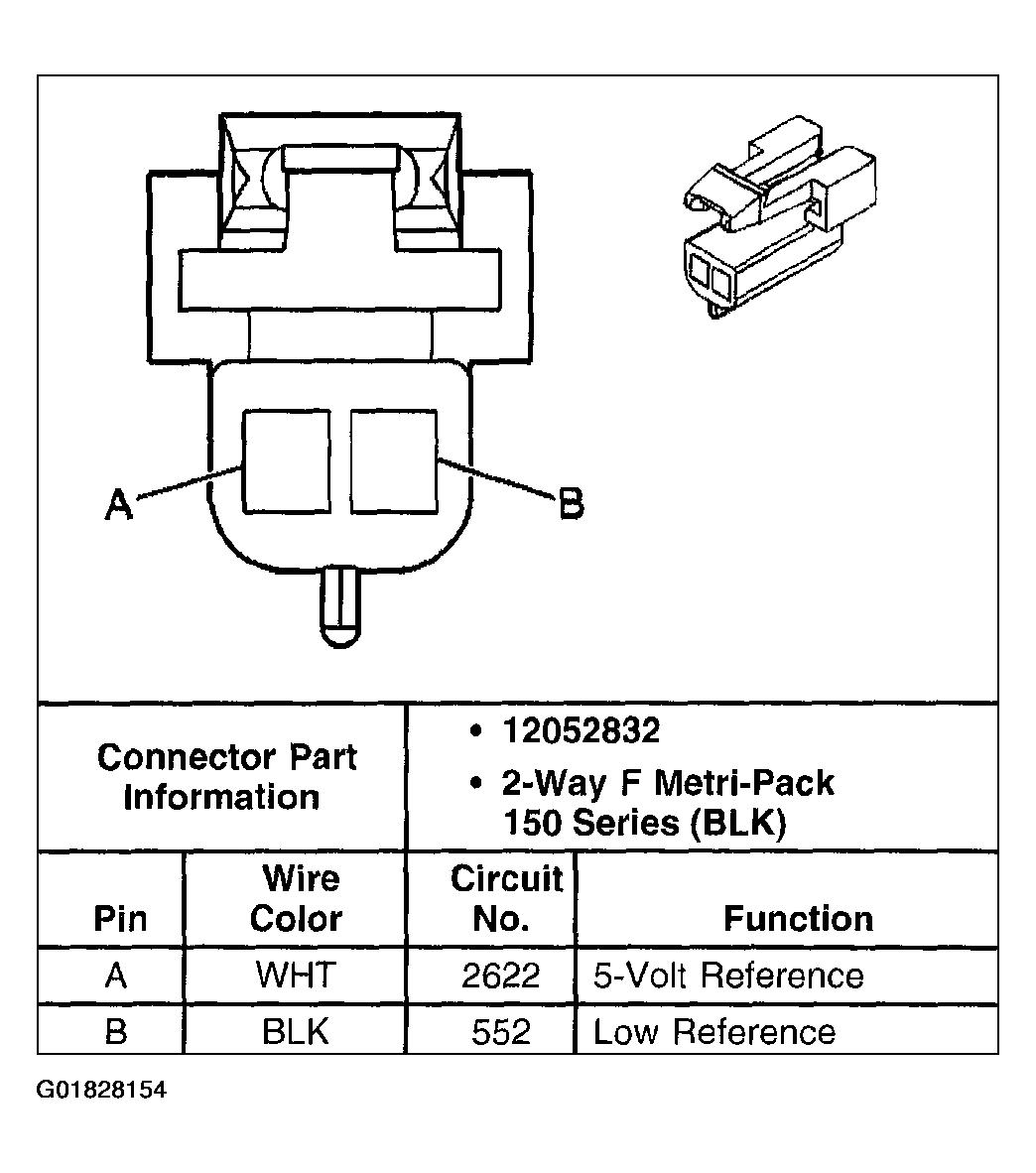

Fig 1: Evaporative Temperature Sensor
Courtesy of GENERAL MOTORS CORP.
