Fuel Pump Sender Unit Connector End View C1

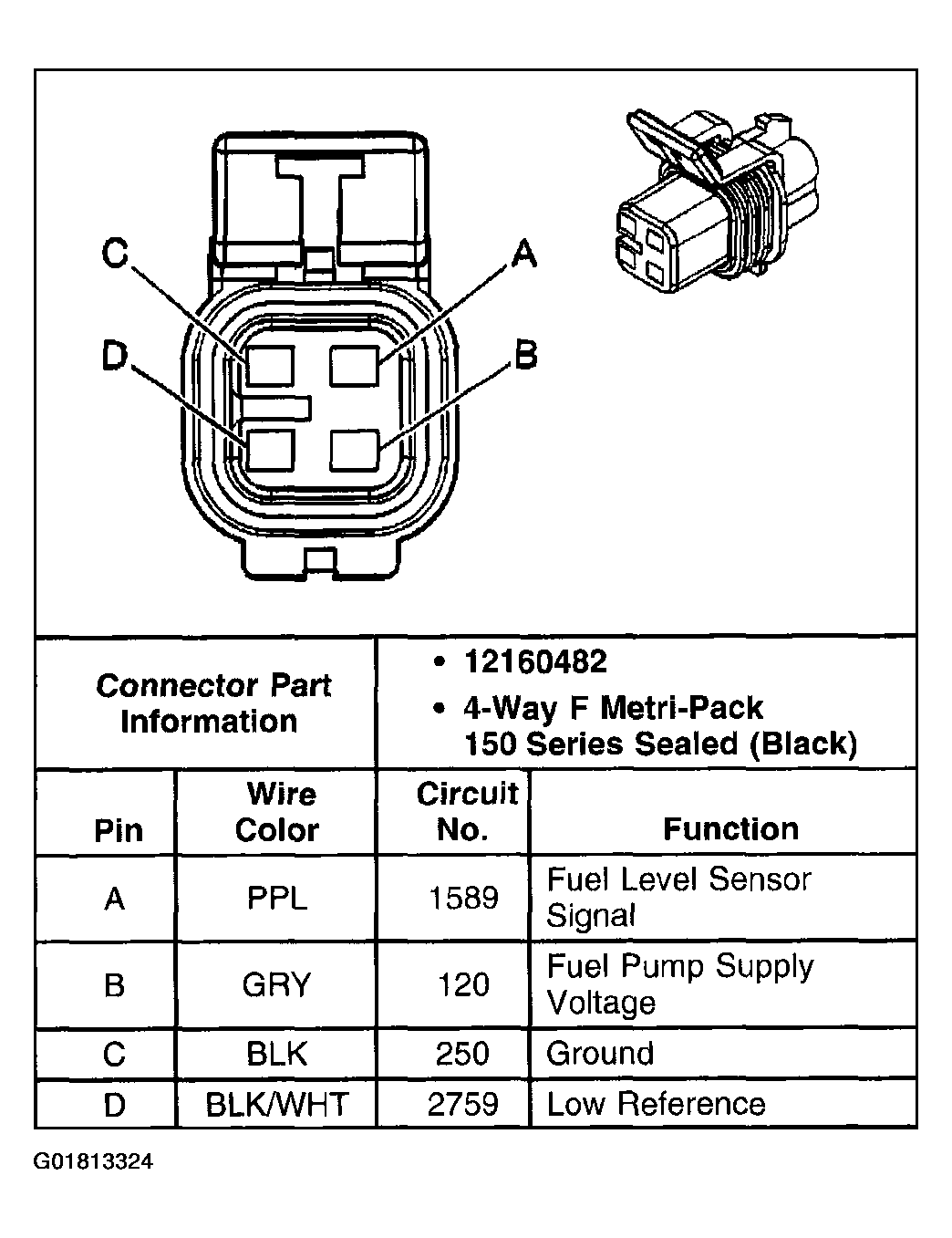

Fig 1: Fuel Pump Sender Unit C1
G01813324Courtesy of GENERAL MOTORS CORP.
