HVAC Control Module Connector End View (C1)

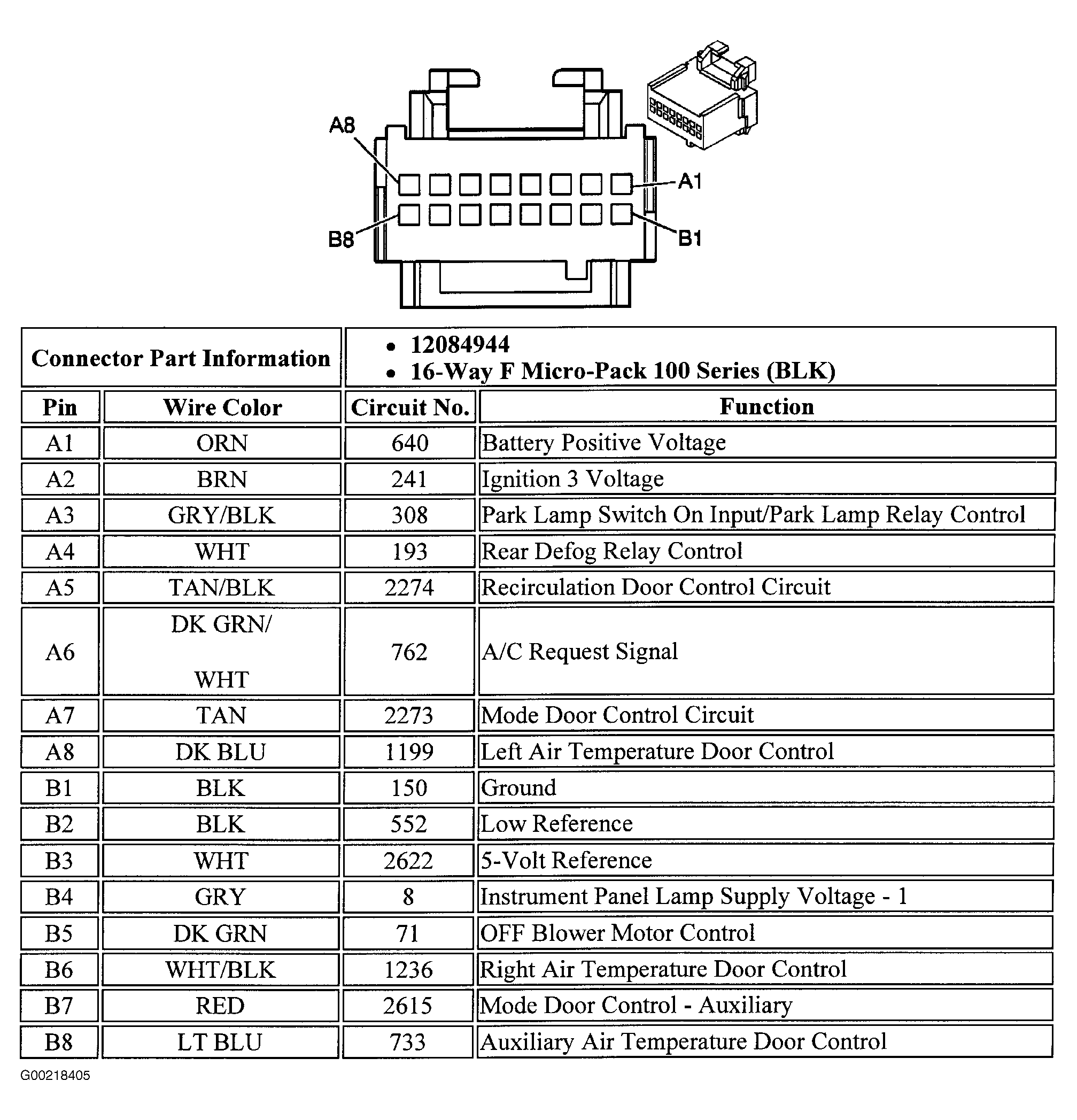

Fig 1: HVAC Control Module (C1)
G00218405Courtesy of GENERAL MOTORS CORP.
