HVAC Control Module Connector End View (C2)

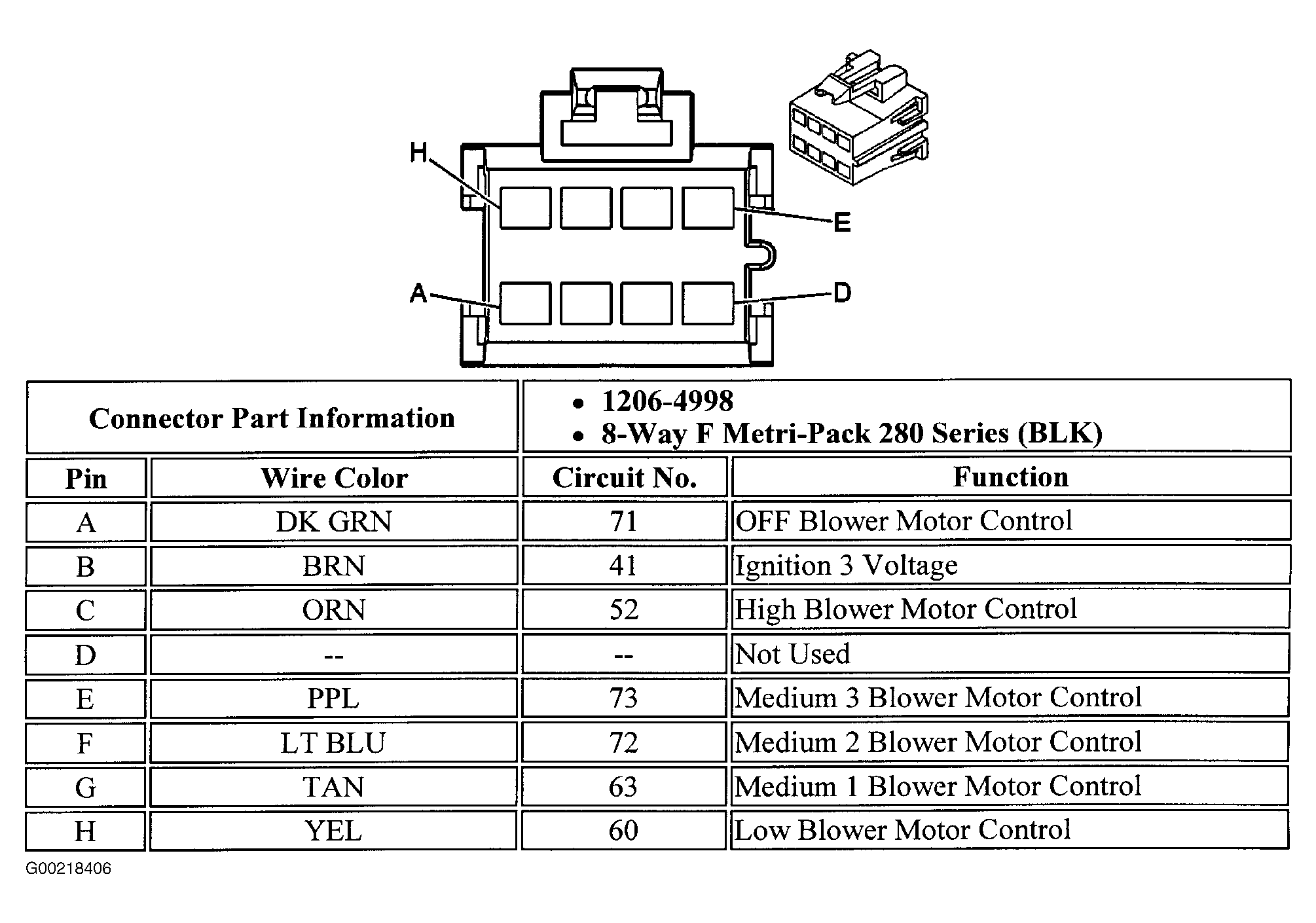

Fig 1: HVAC Control Module (C2)
G00218406Courtesy of GENERAL MOTORS CORP.
