HVAC Control Module Connector End View C1

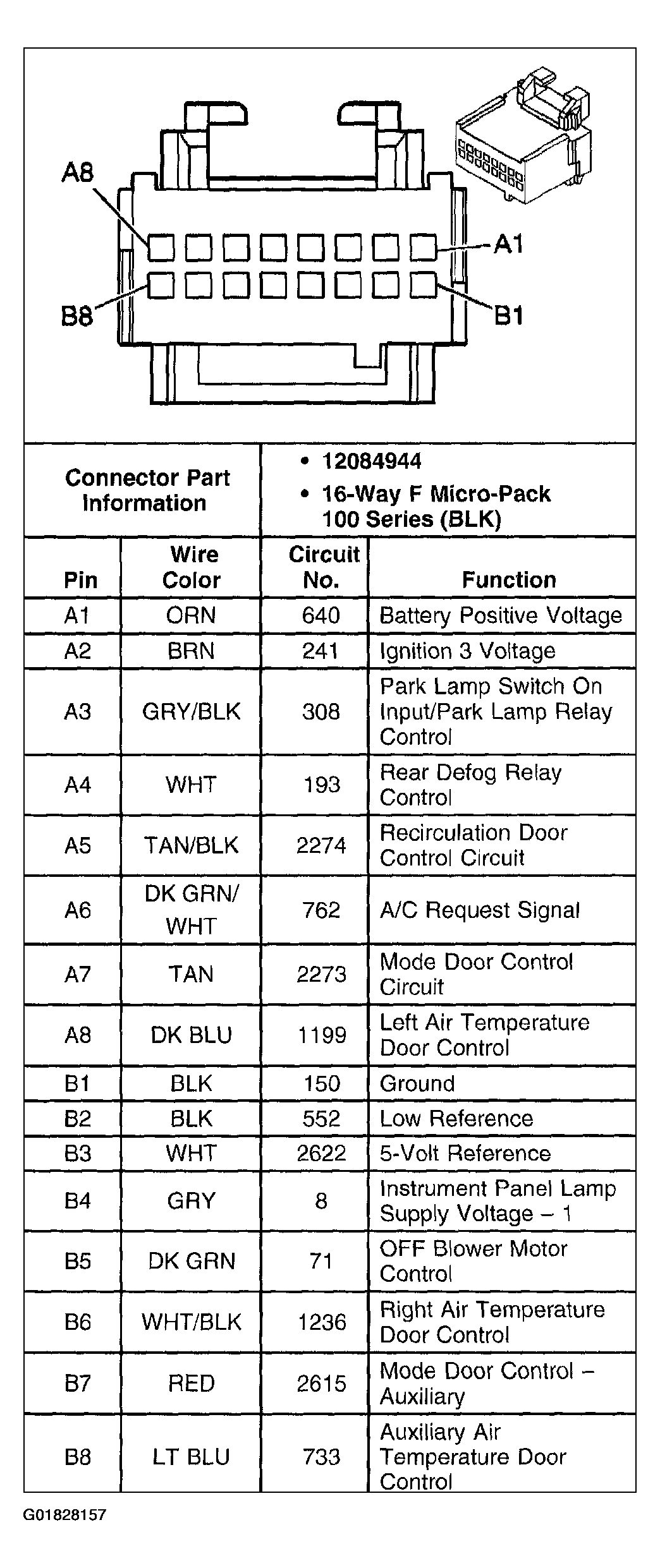

Fig 1: HVAC Control Module C1
G01828157Courtesy of GENERAL MOTORS CORP.
