Inflatable Restraint IP Module Connector End View
Inflatable Restraint IP Module Connector End View

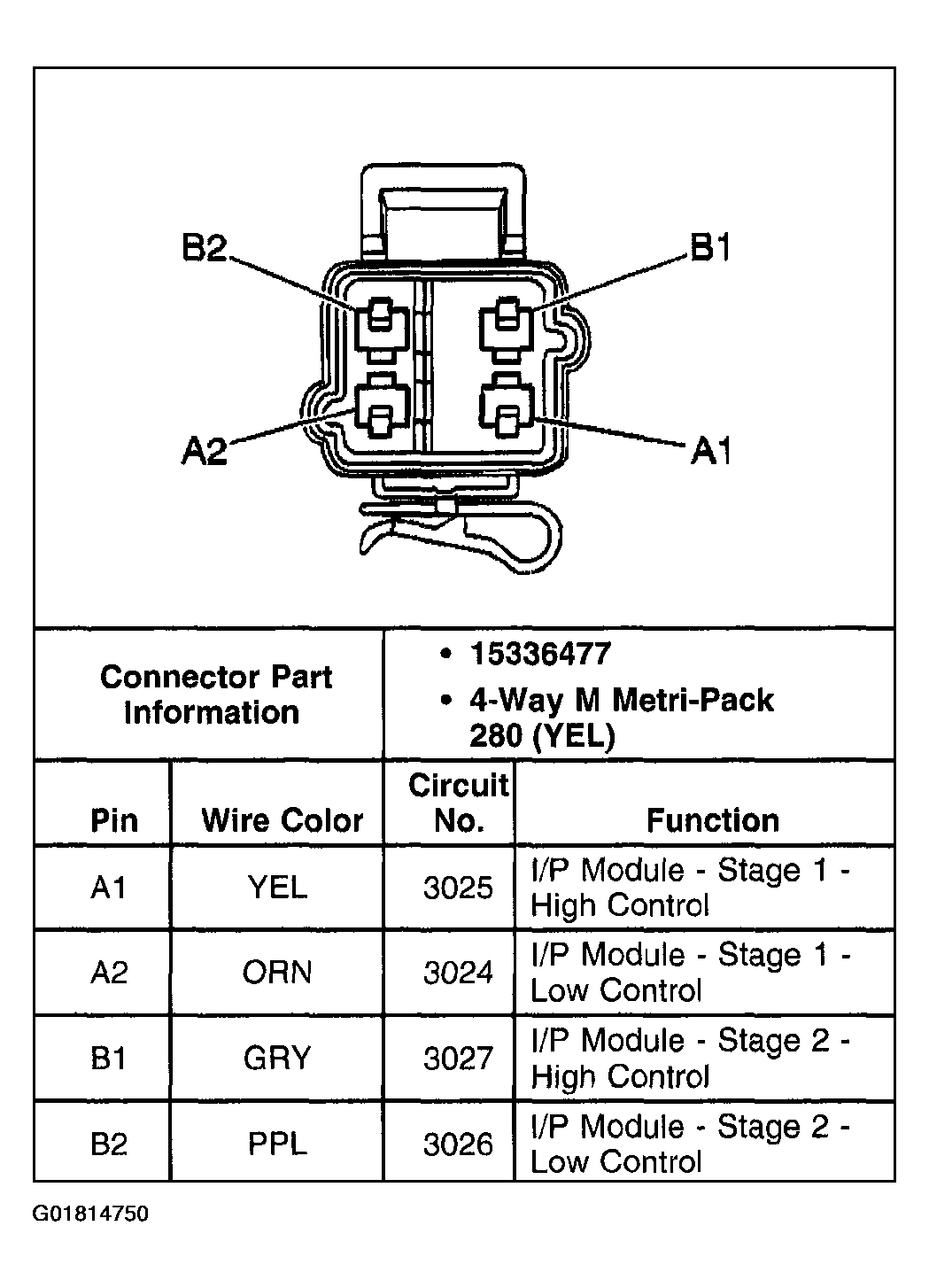

Fig 1: Inflatable Restraint IP Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
