Liftgate Door Lock Cylinder Switch Connector End View

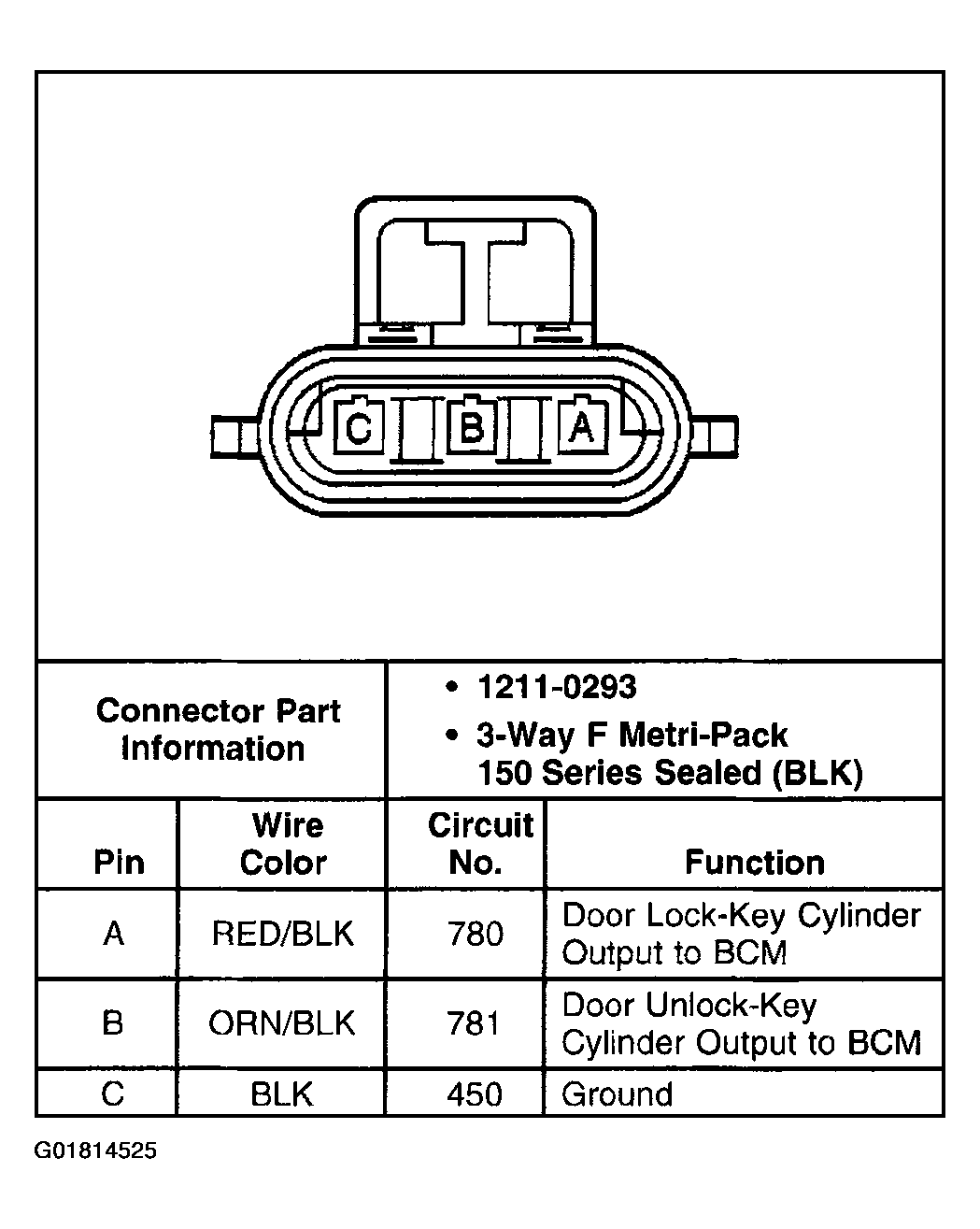

Fig 1: Liftgate Door Lock Cylinder Switch
G01814525Courtesy of GENERAL MOTORS CORP.
