Memory Seat Module Connector End View C1

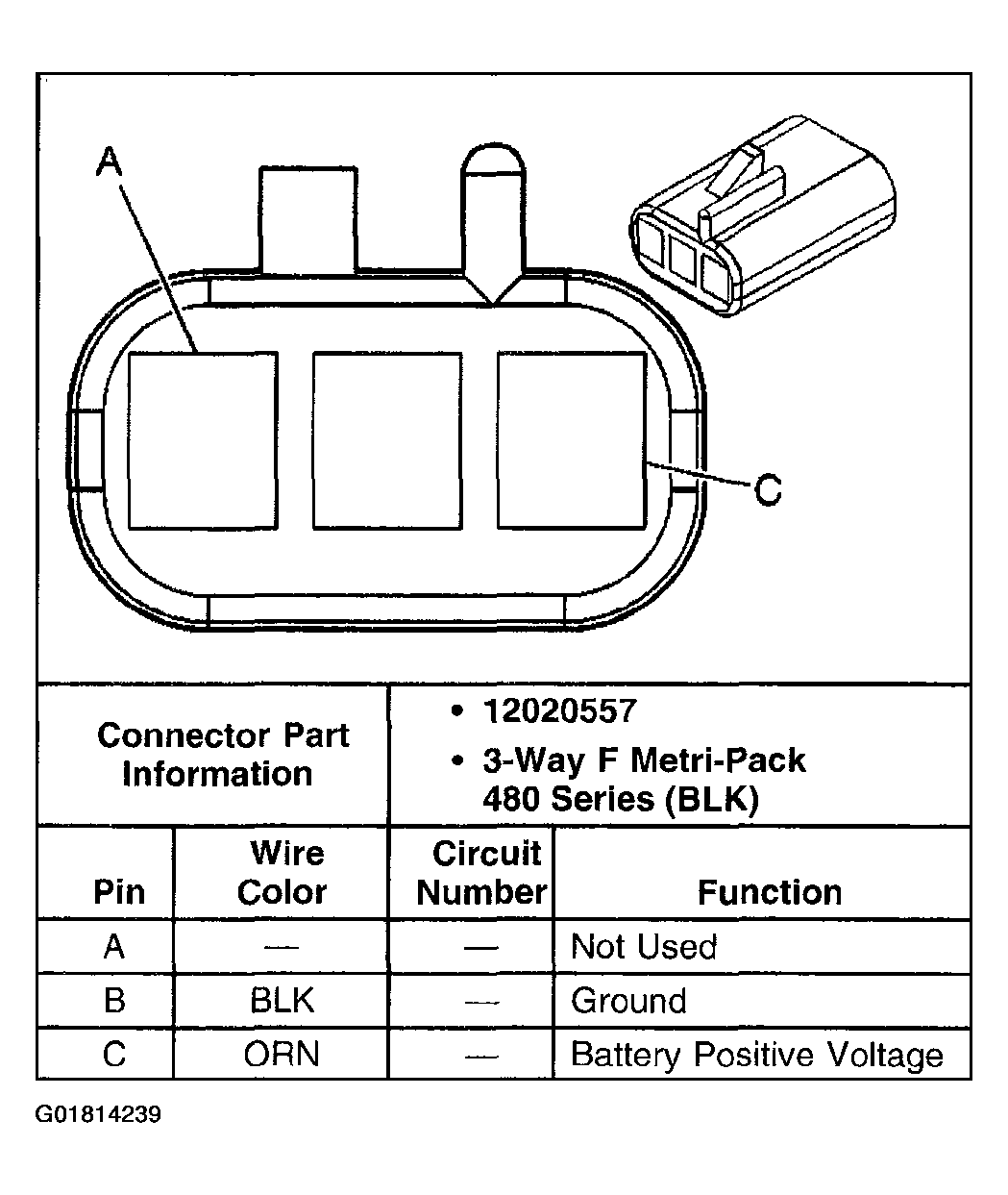

Fig 1: Memory Seat Module C1
G01814239Courtesy of GENERAL MOTORS CORP.
