Memory Seat Module Connector End View C2

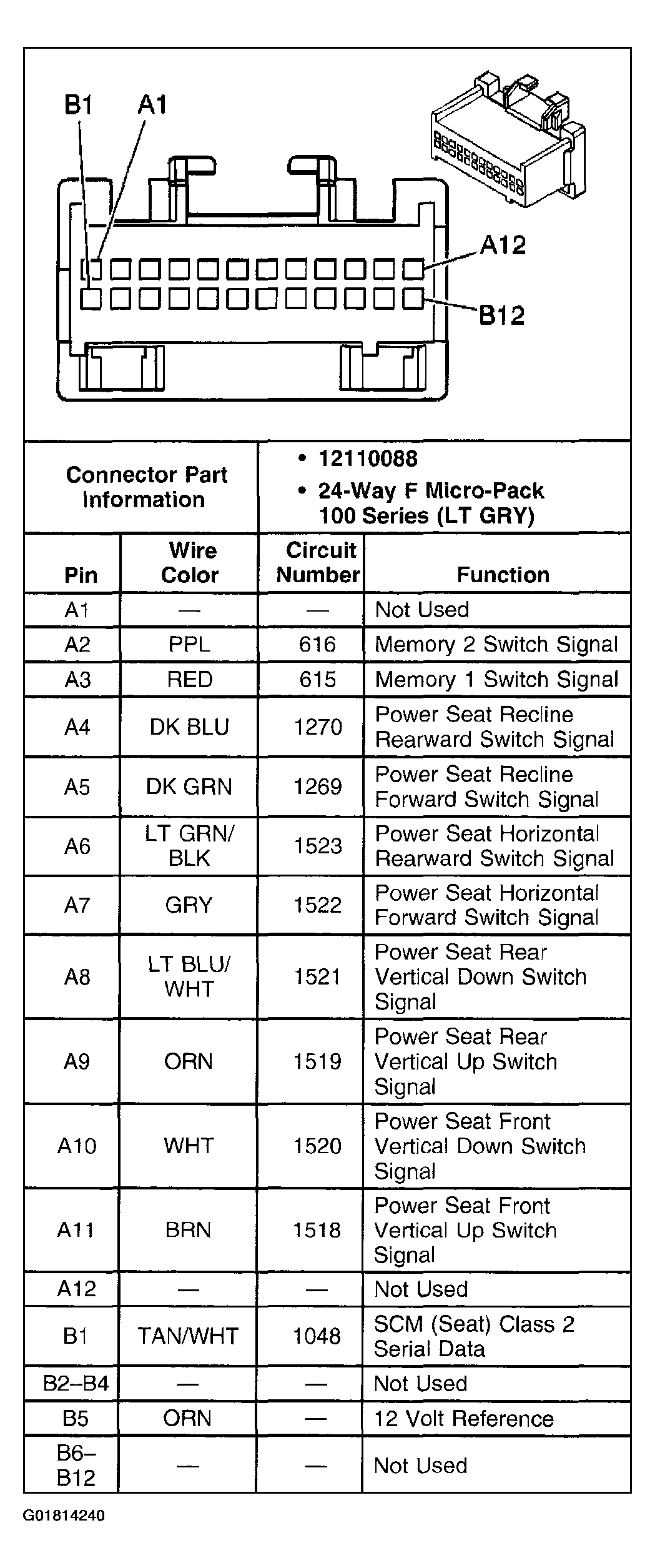

Fig 1: Memory Seat Module C2
G01814240Courtesy of GENERAL MOTORS CORP.
