Memory Seat Module Connector End View C3

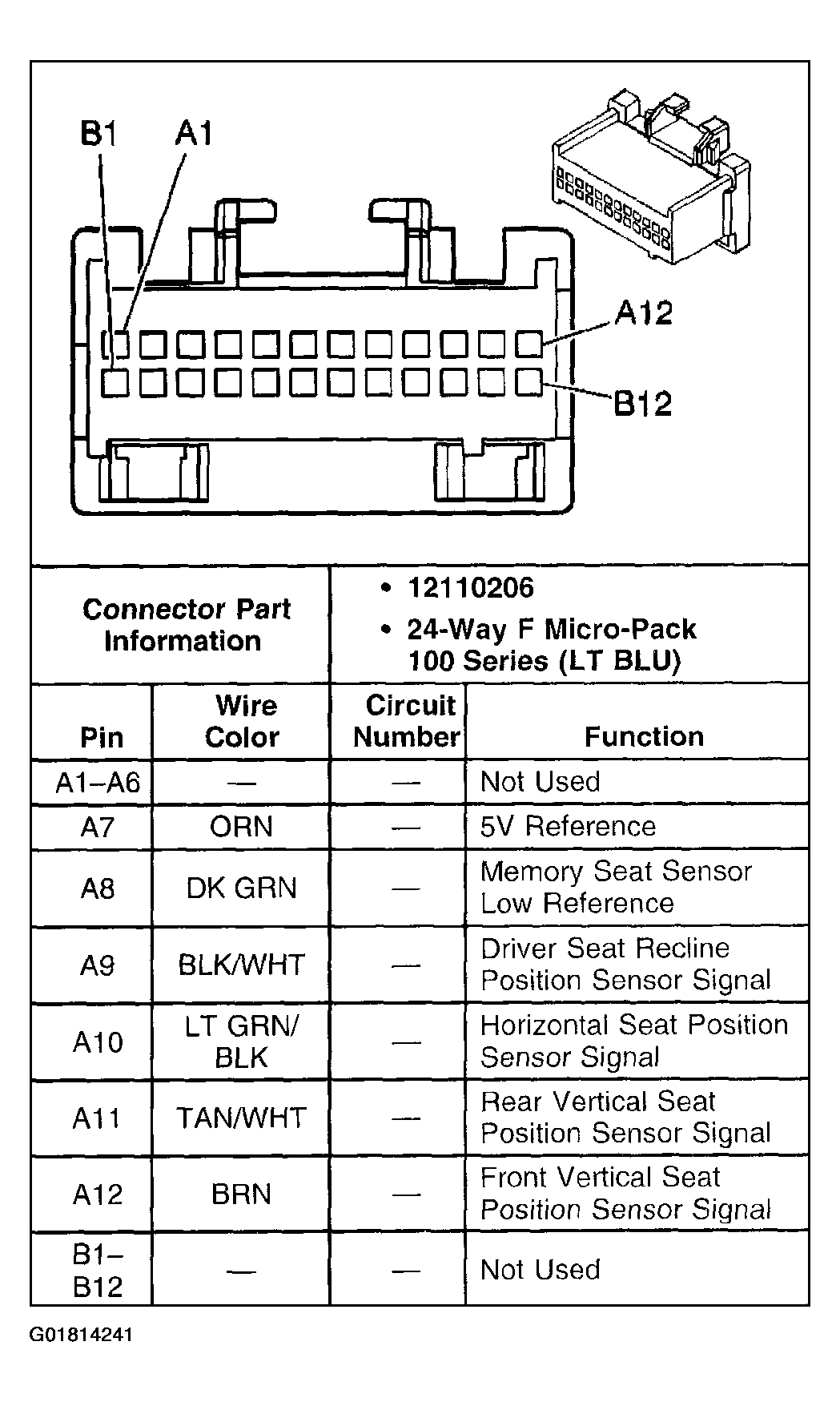

Fig 1: Memory Seat Module C3
G01814241Courtesy of GENERAL MOTORS CORP.
