Home › Chevrolet › 2002 › Venture Plus › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › Memory Seat Module Connector End View C4

Memory Seat Module Connector End View C4

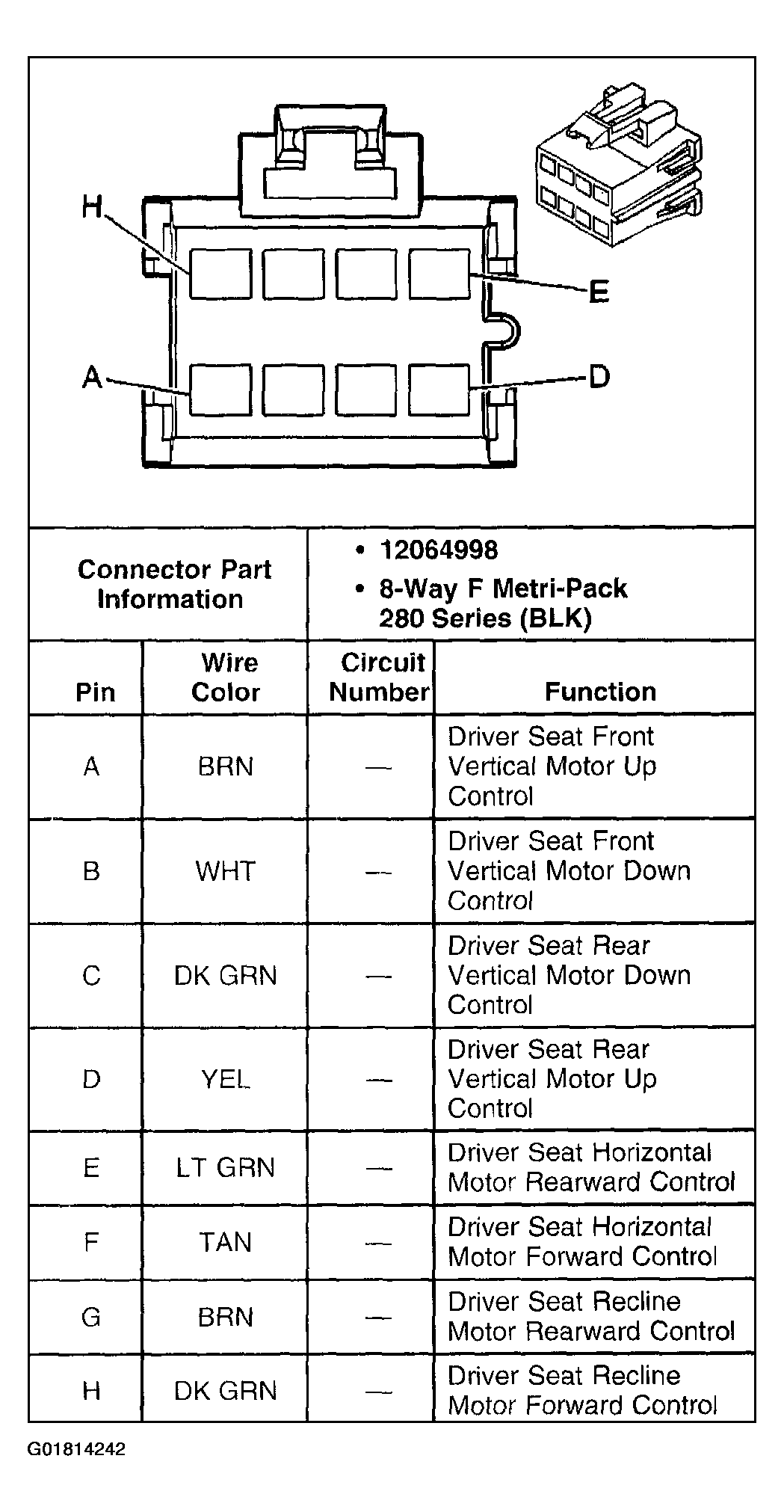

Fig 1: Memory Seat Module C4
G01814242Courtesy of GENERAL MOTORS CORP.
