Mode Actuator Connector End View

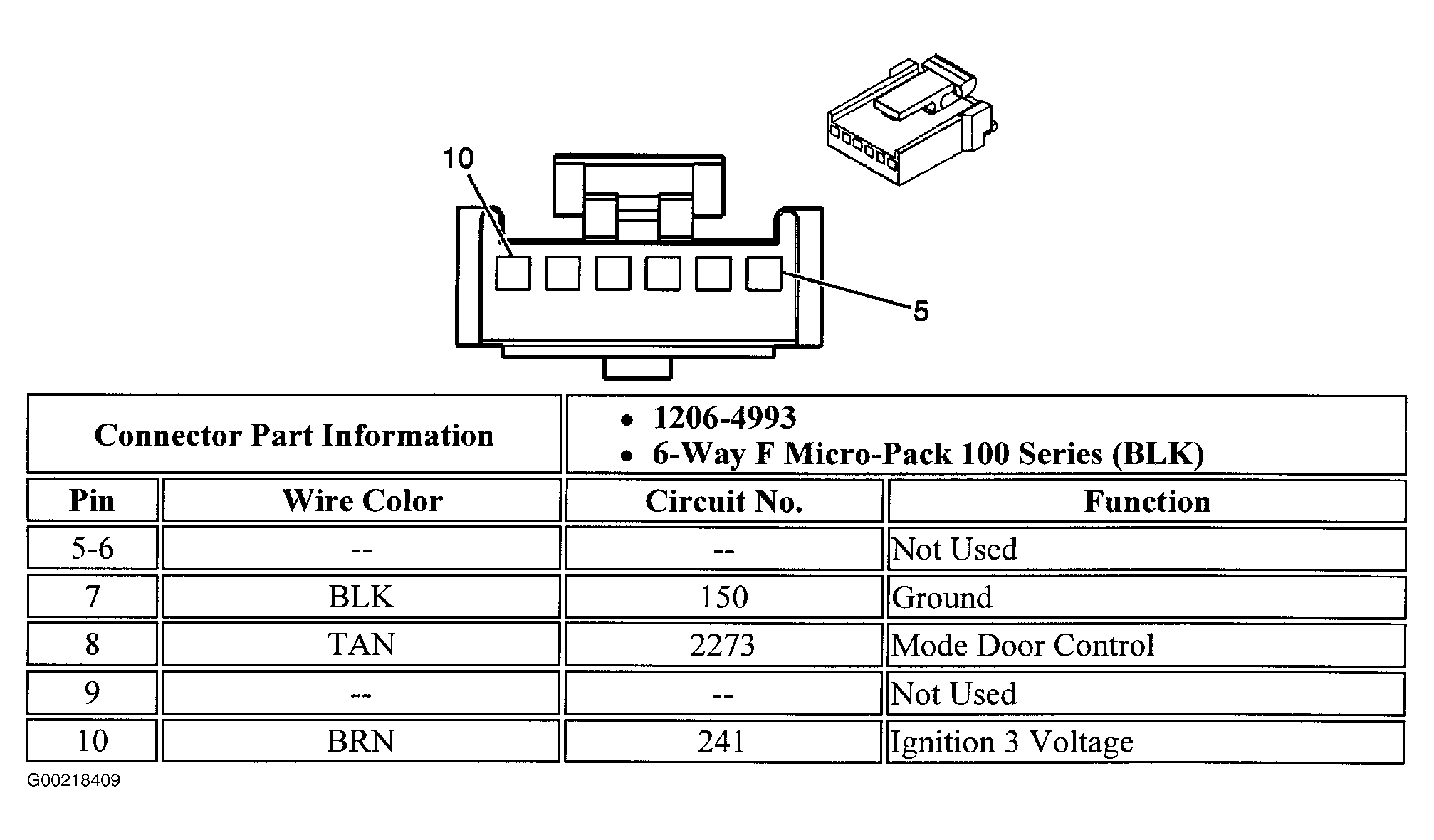

Fig 1: Mode Actuator
G00218409Courtesy of GENERAL MOTORS CORP.

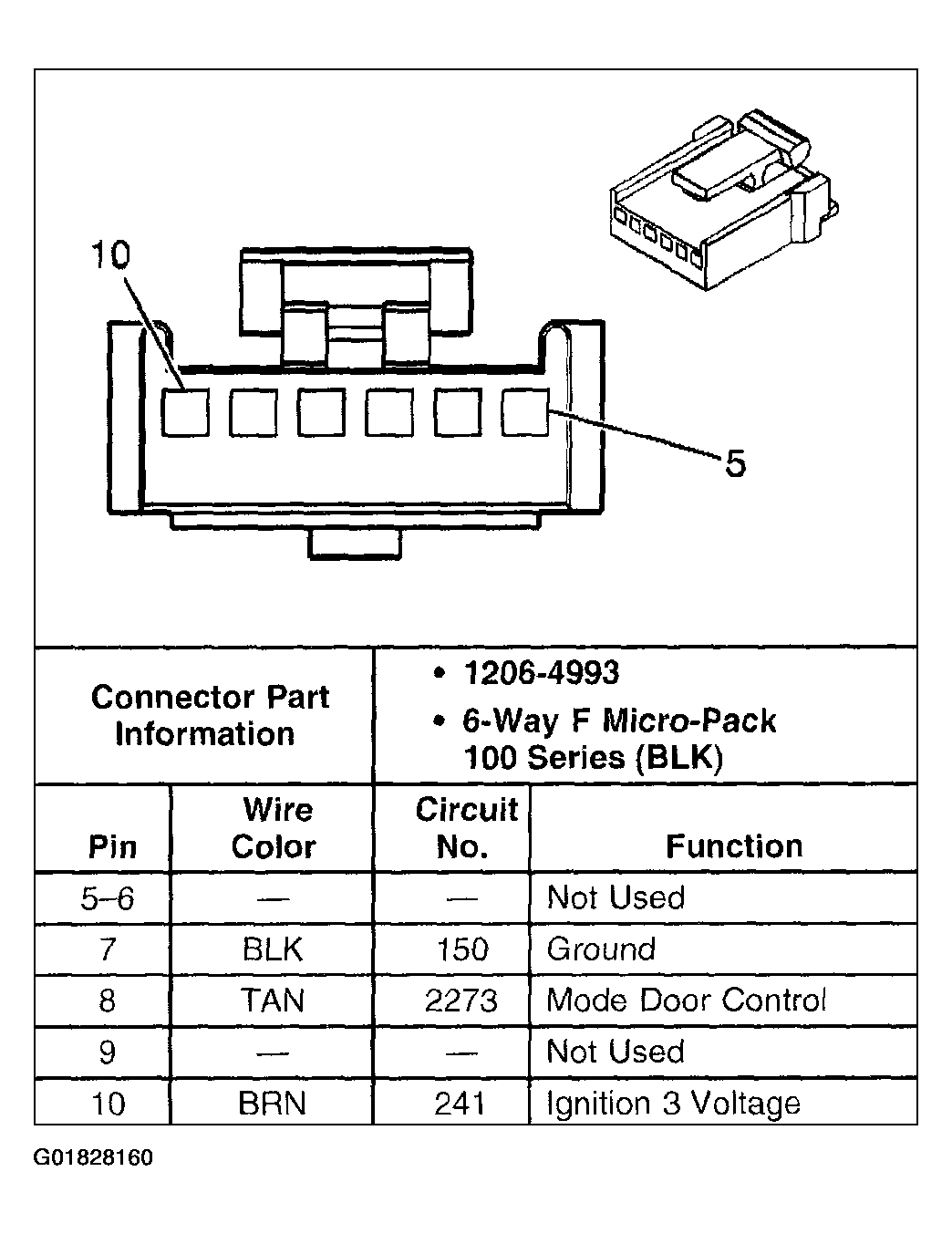

Fig 1: Mode Actuator
G01828160Courtesy of GENERAL MOTORS CORP.
