Rear Video/Audio/HVAC Module Connector End View - C2

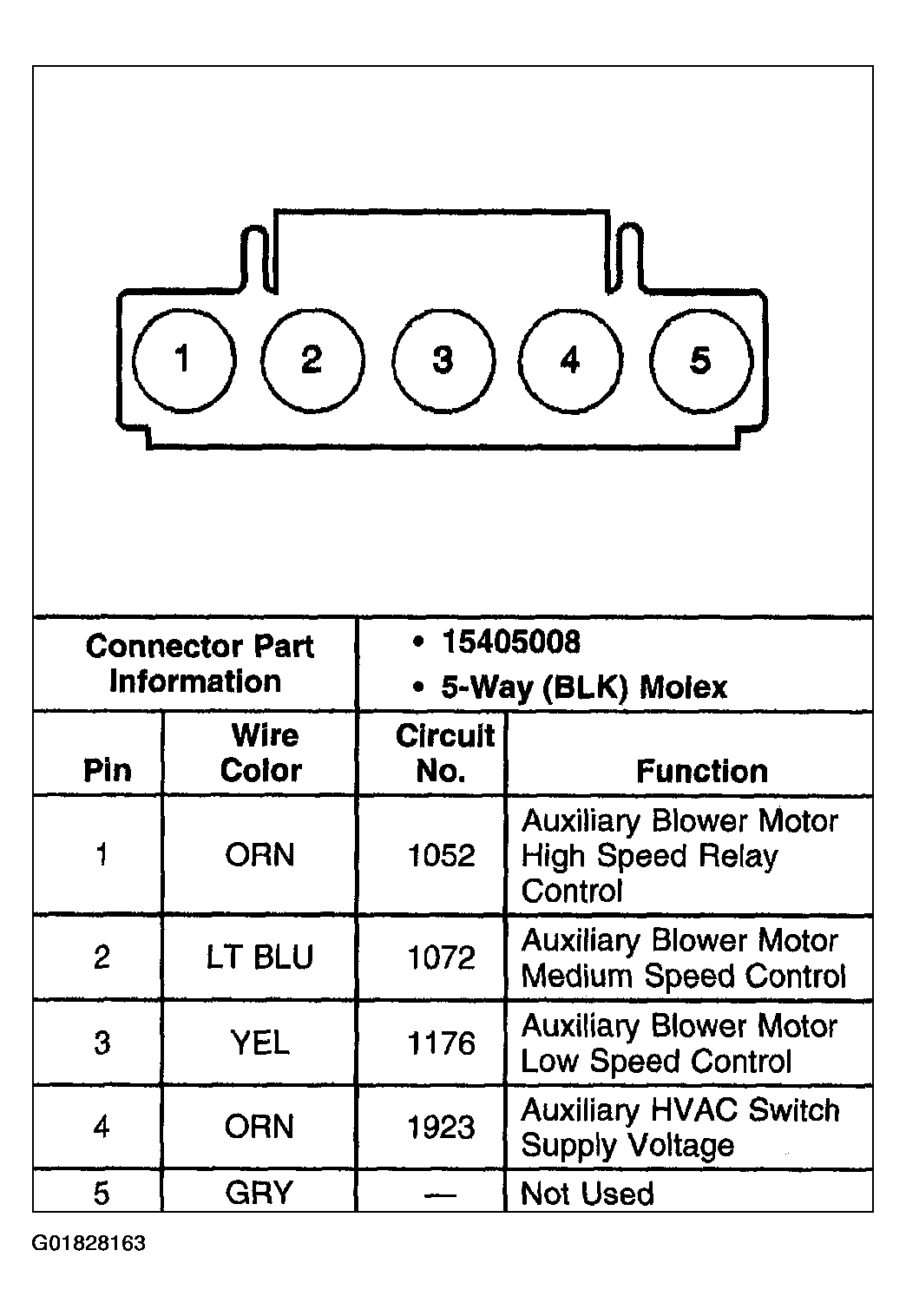

Fig 1: Rear Video/Audio/HVAC Module - C2
G01828163Courtesy of GENERAL MOTORS CORP.


Fig 1: Rear Video/Audio/HVAC Module - C2
G01813137Courtesy of GENERAL MOTORS CORP.
