Rear Window Wiper/Washer And Multi-Function Switch Connector End View C1

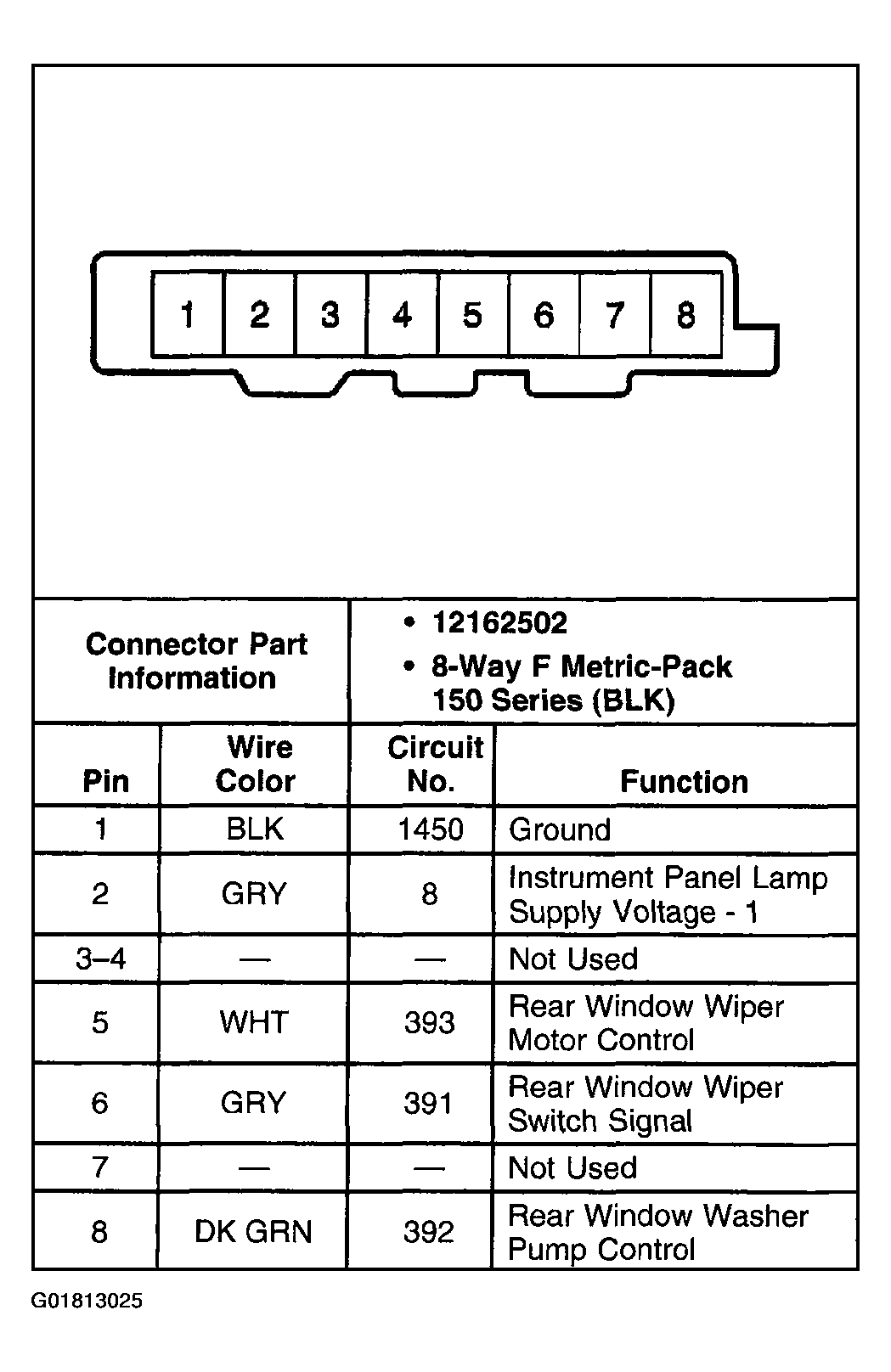

Fig 1: Rear Window Wiper/Washer And Multi-Function Switch C1
G01813025Courtesy of GENERAL MOTORS CORP.
