Side Impact Module Connector End View - Left
Side Impact Module Connector End View - Left

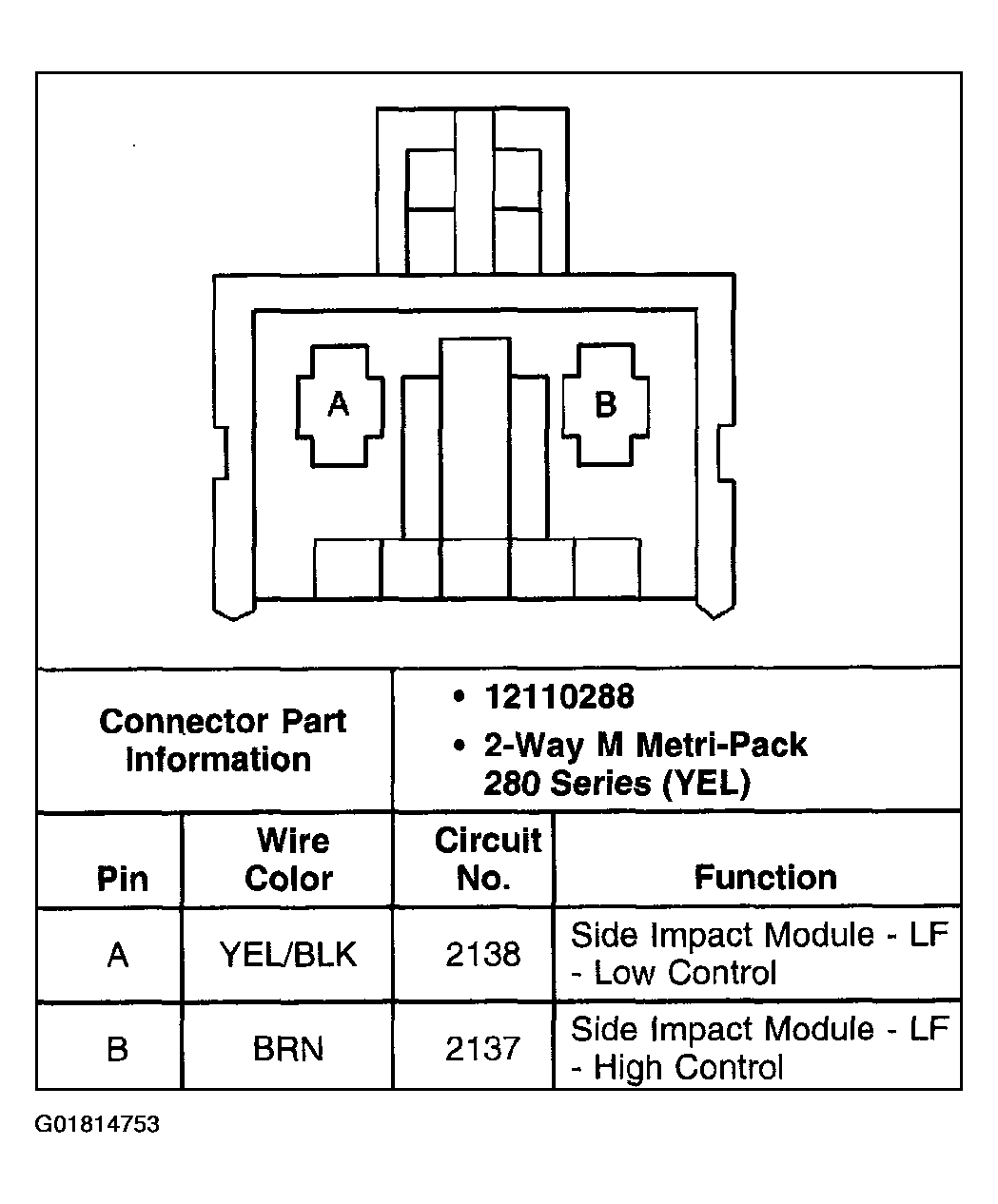

Fig 1: Side Impact Module - Left
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
