Theft Deterrent Control Module Connector End View

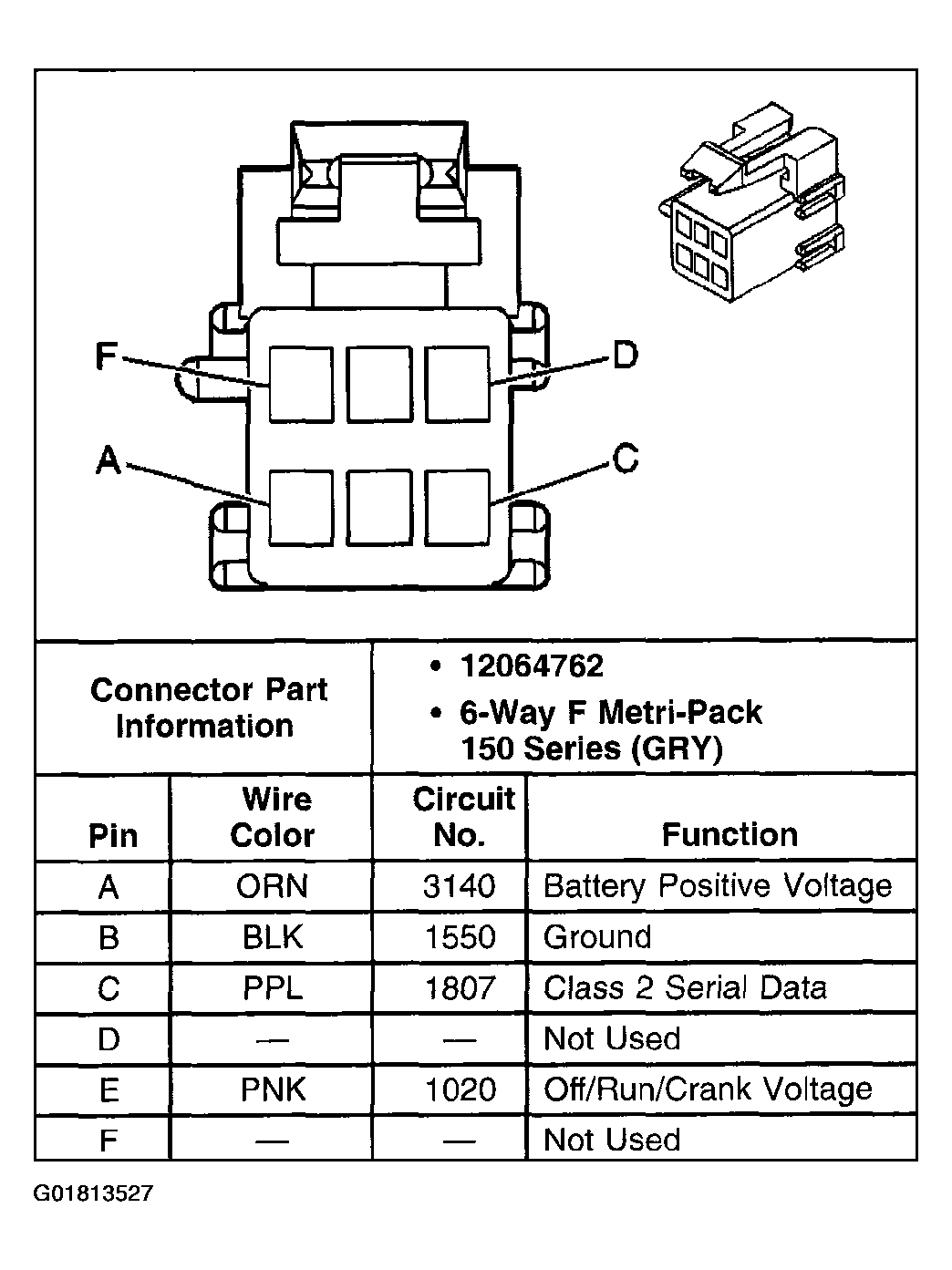

Fig 1: Theft Deterrent Control Module
G01813527Courtesy of GENERAL MOTORS CORP.
