Turn Signal/Hazard Flasher Connector End View
Turn Signal/Hazard Flasher Connector End View

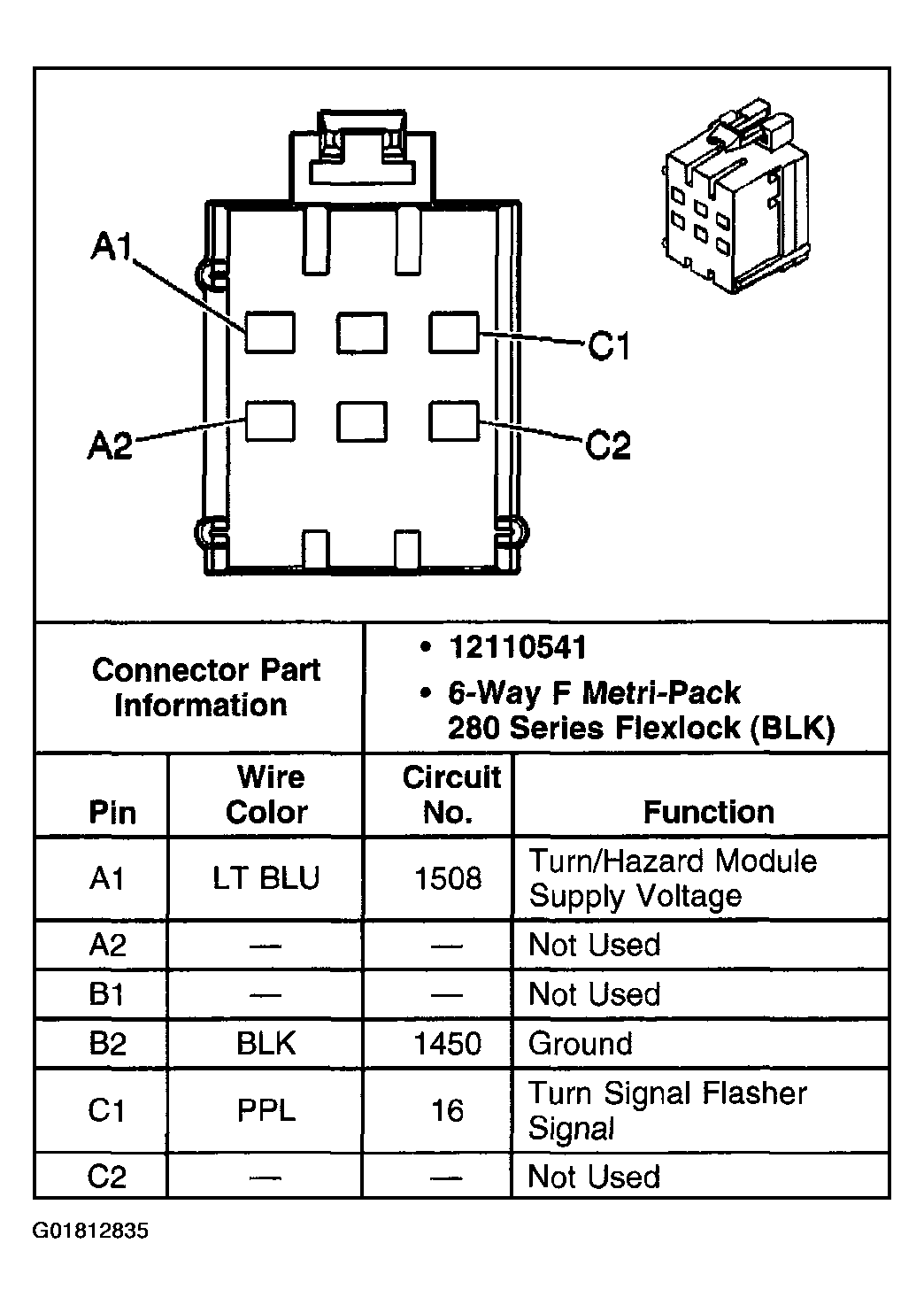

Fig 1: Turn Signal/Hazard Flasher
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
