Video Disc Player Connector End View

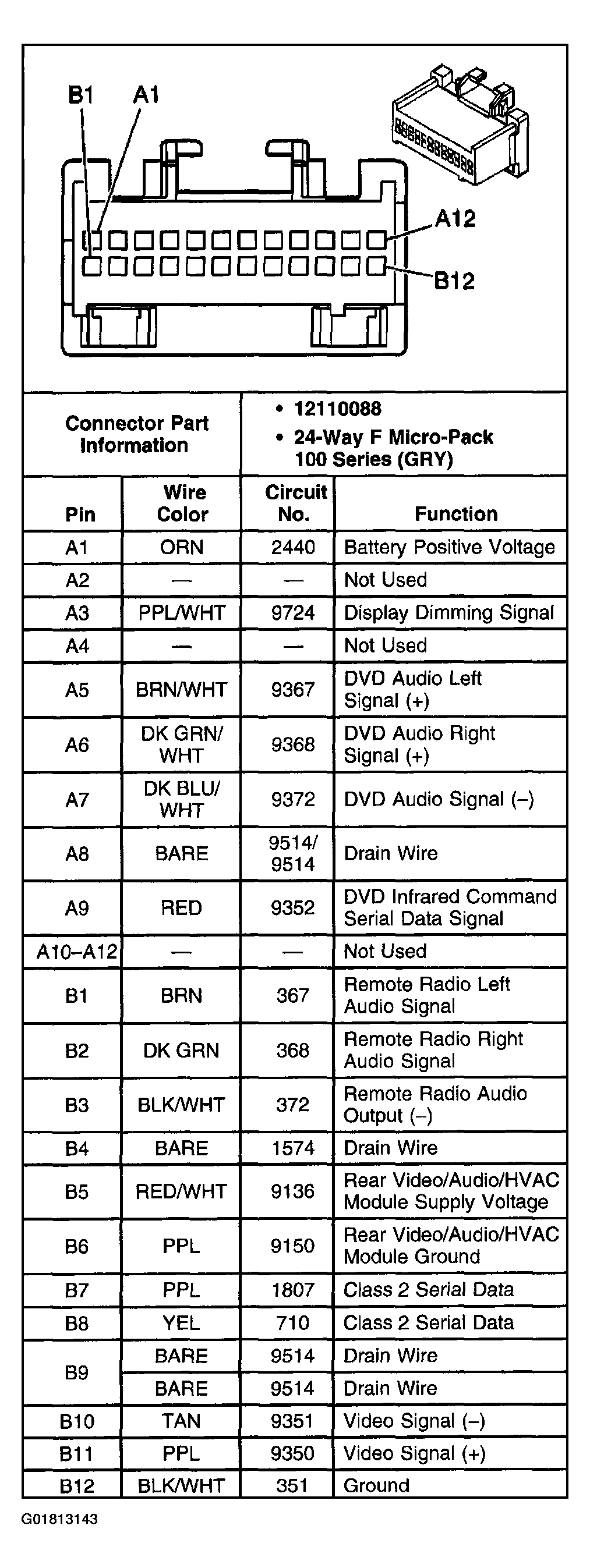

Fig 1: Video Disc Player
G01813143Courtesy of GENERAL MOTORS CORP.
