Windshield Header Courtesy/Reading Lamps Connector End View

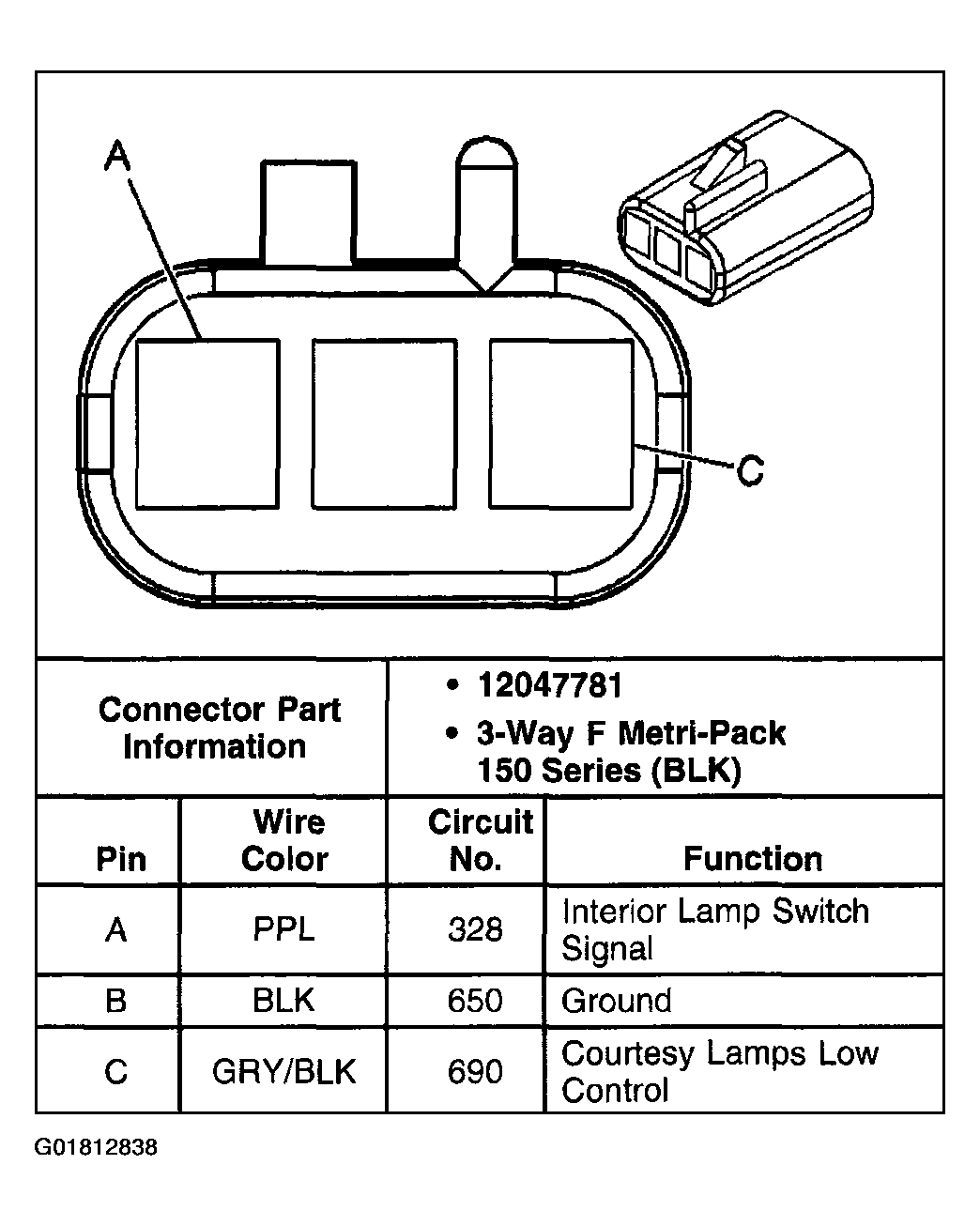

Fig 1: Windshield Header Courtesy/Reading Lamps
G01812838Courtesy of GENERAL MOTORS CORP.
