Schematic and Routing Diagrams

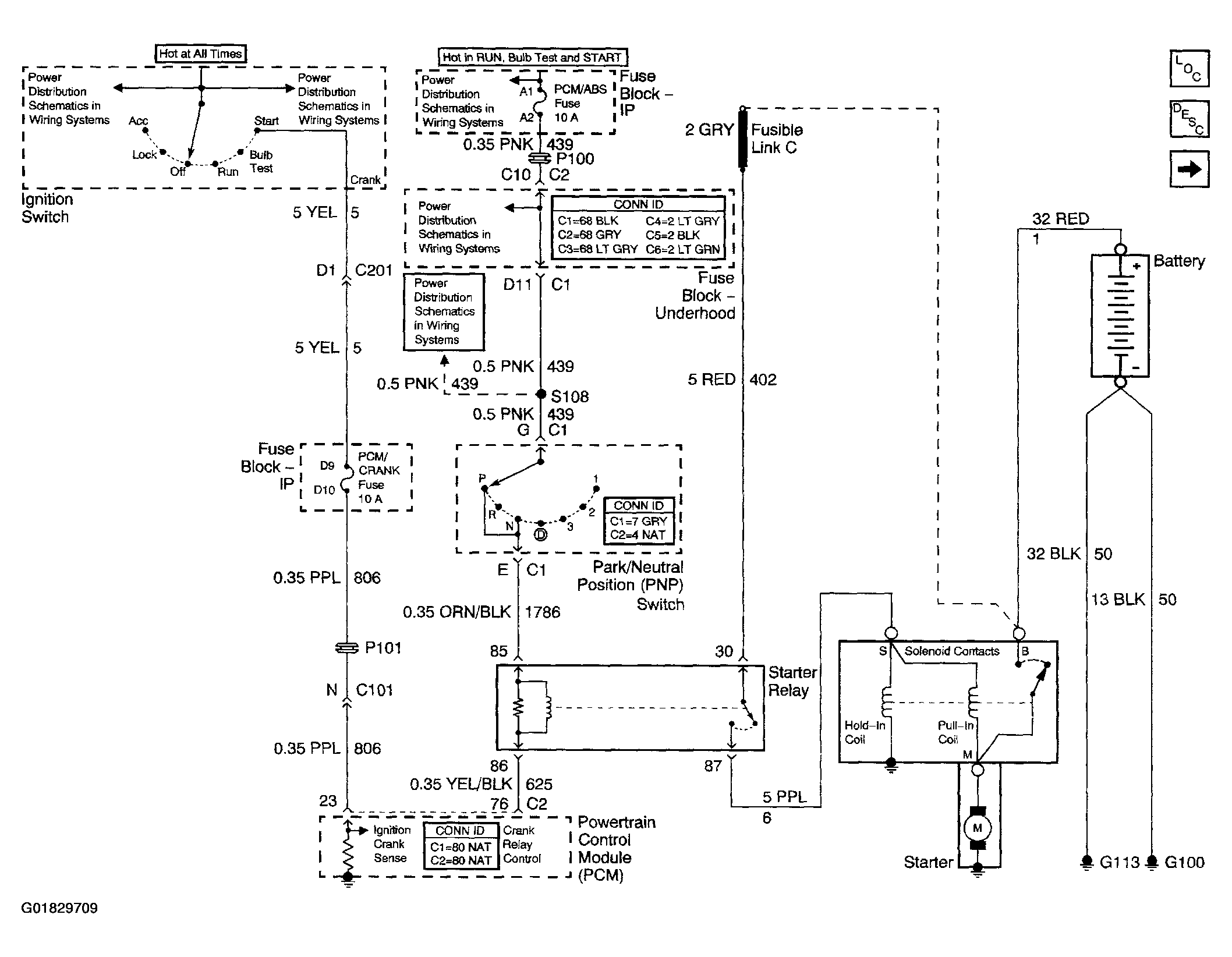

Fig 1: Starting And Charging Schematics (Starting)

Courtesy of GENERAL MOTORS CORP.

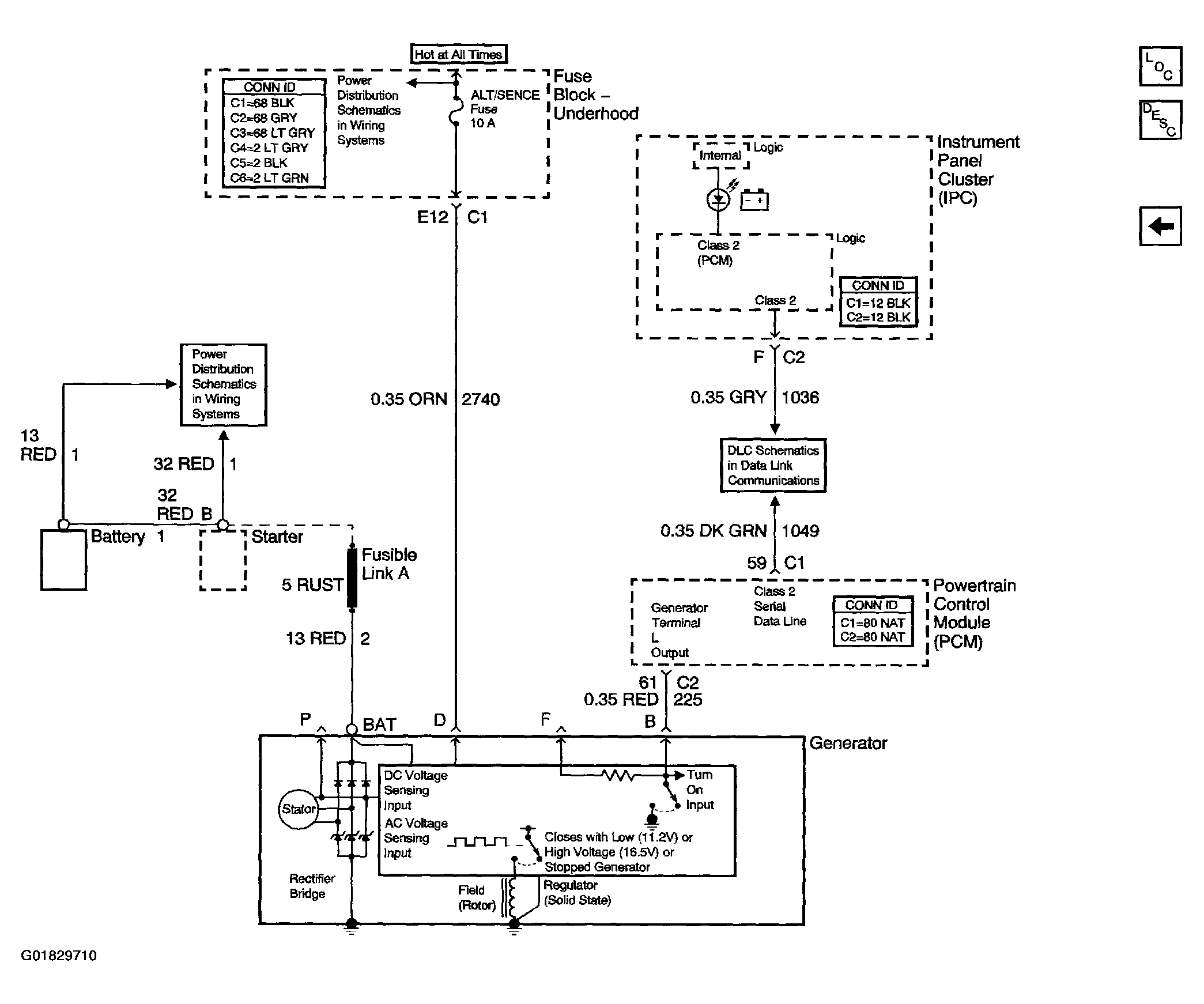

Fig 2: Starting And Charging Schematics (Charging)

Courtesy of GENERAL MOTORS CORP.
